51425 (1200) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1979) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

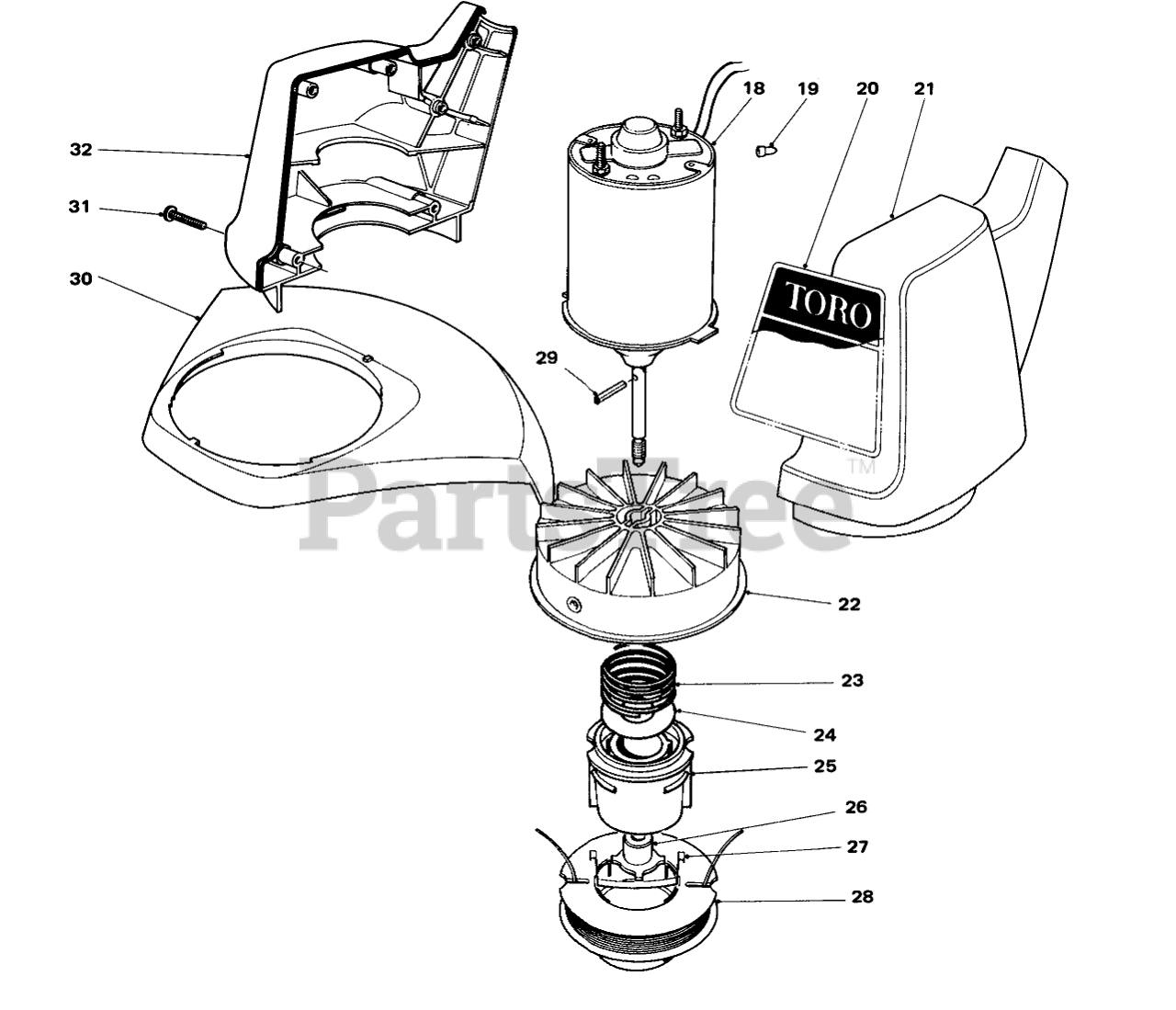

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
18

Toro 29-7081

MOTOR

$

$

Not available

19

Toro 218496

Wire Connector

$

$

Currently unavailable

20

Toro 339170

Decal 1200

$

$

Currently unavailable

21

Toro 29-7052

Housing-L.H.

$

$

Not available

22

Toro 33-9240

Drum W/Eyelets

$

$

Not available

23

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

24

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

25

Toro 33-6230

SPOOL CORE

$

$

Not available

26

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

27

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

28

Toro 33-7940

Prewound Spool
(Superseded to 88005)

$19.99

$

Usually ships in 3-6 days

0

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

Toro 33-7910

50-Coil.065" Cutting Line
(Superseded to 88003)

$

$

Not available

29

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

30

Toro 33-9110

Shield with Cut Off Blade
(Superseded to 34-8881)

$

$

Not available

31

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

32

Toro 29-7062

Housing-R.H.

$

$

Not available
