51425 (1200) - Toro String Trimmer, Electric (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

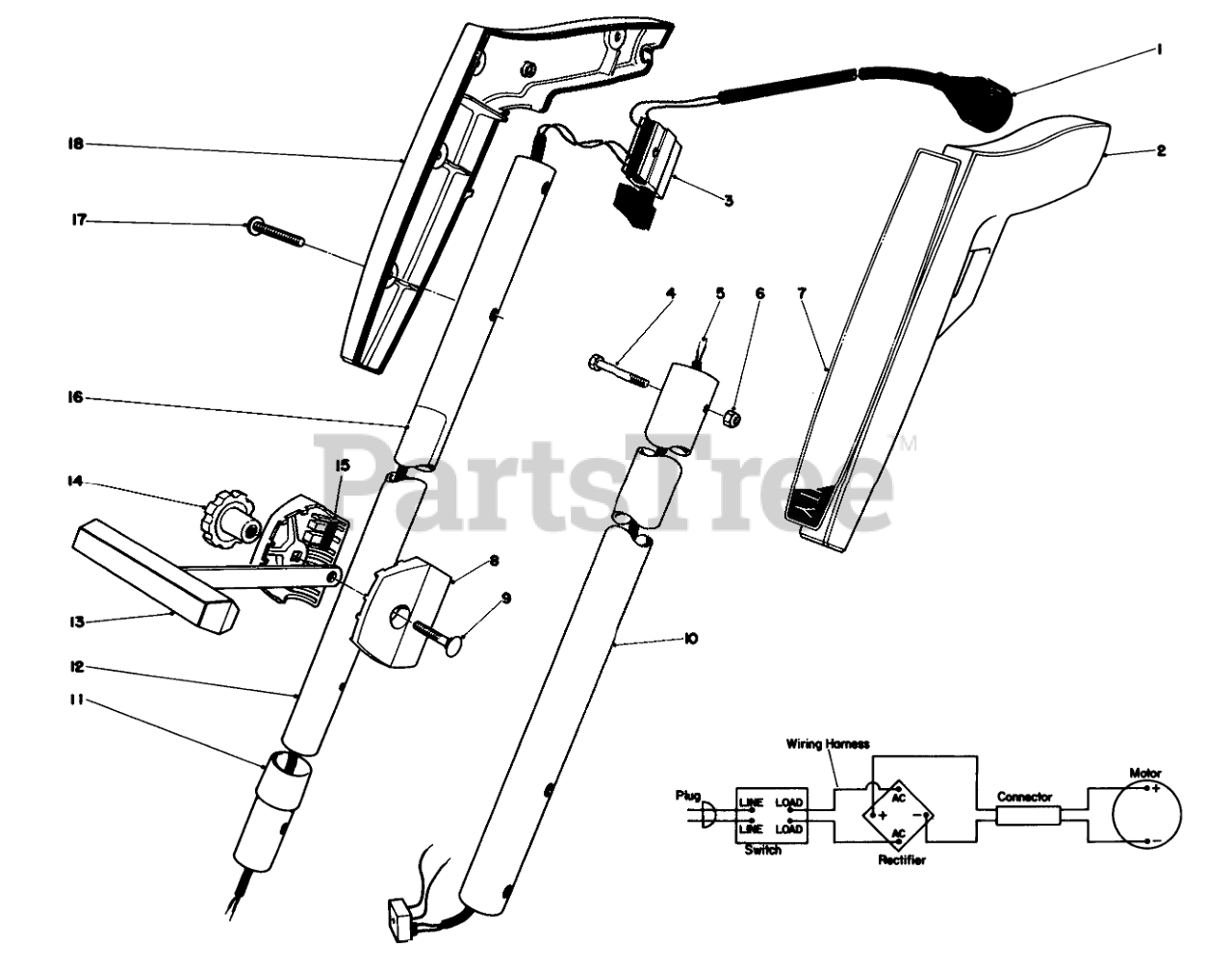

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8850

Cord-Power
(Superseded to 46-8851)

$

$

Not available

2

Toro 33-8811

Left Hand Grip

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

4

Toro 29-7440

Screw

$

$

Not available

5

Toro 33-9130

WIRE HARNESS

$

$

Not available

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

7

Toro 52-3750

Decal

$

$

Not available

8

Toro 33-9150

Bracket

$

$

Not available

9

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

10

Toro 33-9140

Lower Tube

$

$

Not available

11

Toro 33-9180

Tubing Sleeve

$

$

Not available

12

Toro 33-8880

Tube-Upper

$

$

Not available

13

Toro 33-9201

Tee Handle

$

$

Not available

14

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

15

Toro 29-7470

RUBBER INSERT

$

$

Not available

16

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

17

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

18

Toro 33-8821

Right Hand Grip

$

$

Not available
