51425 (1200) - Toro String Trimmer, Electric (SN: 003000001 - 003999999) (1983) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

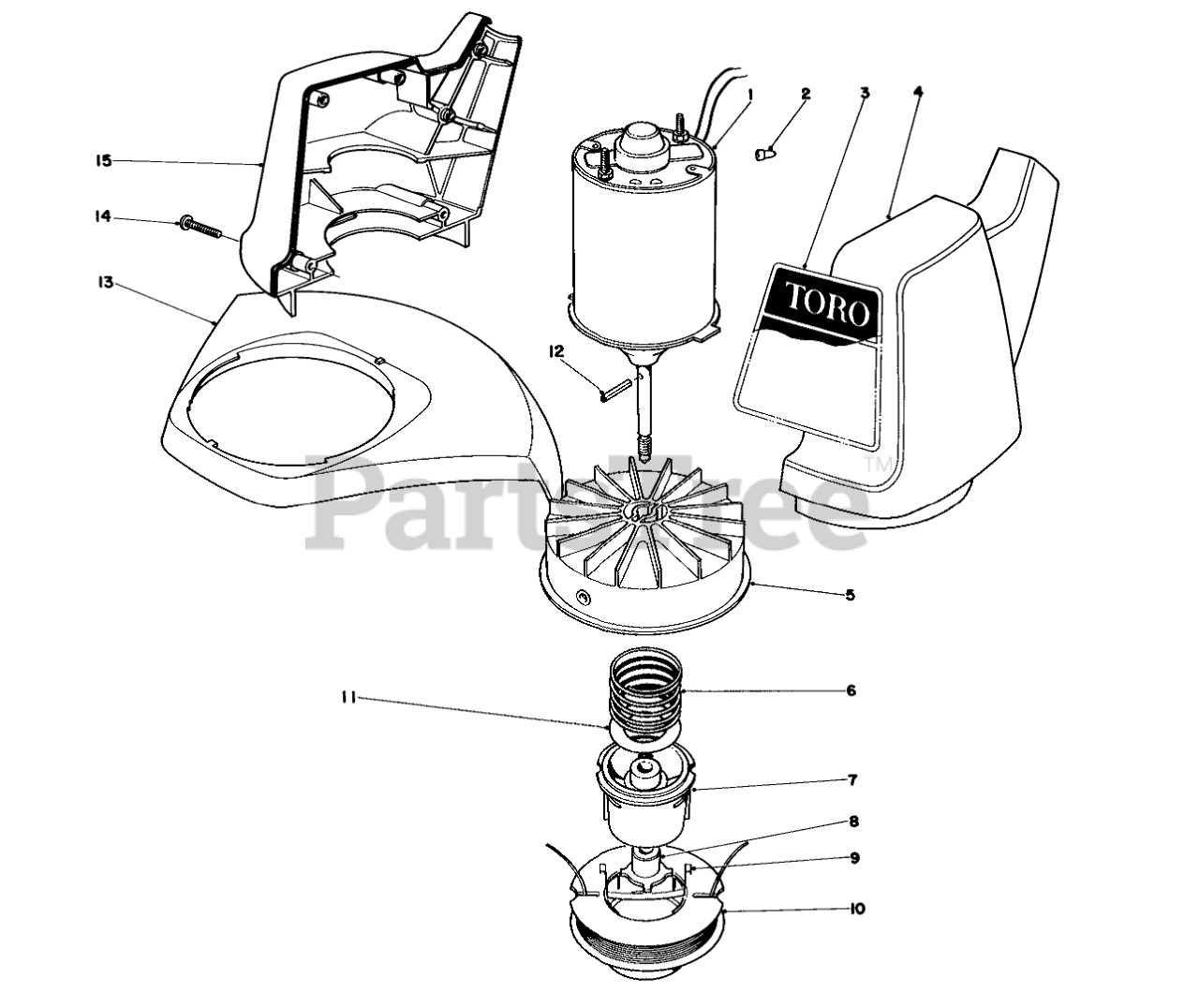

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 29-7081

MOTOR

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 33-9170

Decal 1200

$

$

Not available

4

Toro 29-7052

Housing-L.H.

$

$

Not available

5

Toro 33-9240

Drum W/Eyelets

$

$

Not available

6

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

7

Toro 33-6230

SPOOL CORE

$

$

Not available

8

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

9

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

10

Toro 88006

Prewound Spool (Incl. Ref. #9)

$

$

Currently unavailable

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

Note: Not illustrated

$11.99

$

In Stock, only 2 left!

0

Toro 33-7910

50-Coil.065" Cutting Line
(Superseded to 88003)

Note: Not illustrated

$

$

Not available

11

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

12

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

13

Toro 34-8880

Shield with Cut Off Blade
(Superseded to 34-8881)

$

$

Not available

14

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

15

Toro 29-7062

Housing-R.H.

$

$

Not available
