51410 (1200) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

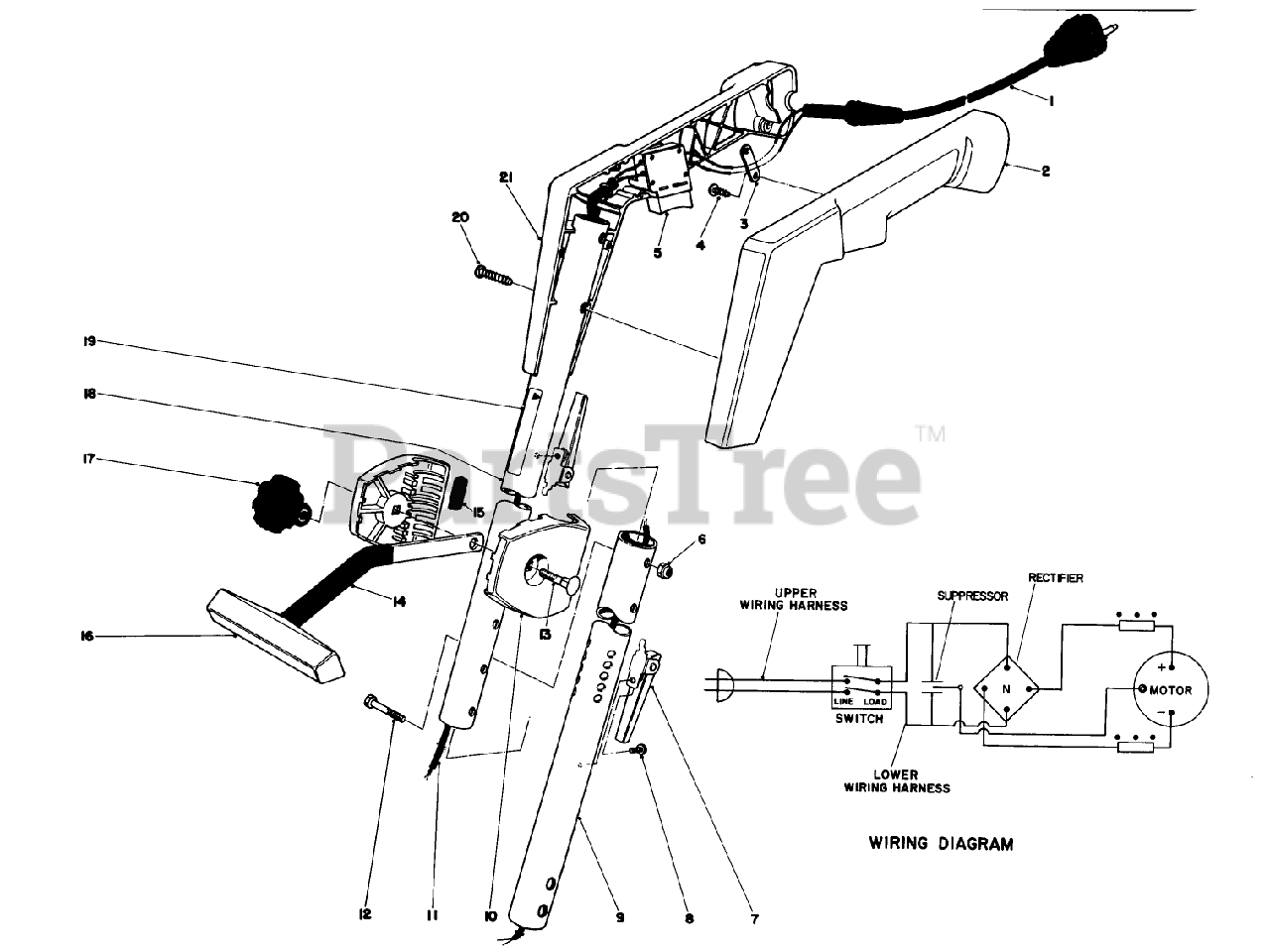

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-5810

Power Cord

$

$

Not available

2

Toro 33-6910

Left Hand Grip

$

$

Not available

3

Toro 33-6850

Clamp

$

$

Not available

4

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

5

Toro 33-7890

Switch

$

$

Not available

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

7

Toro 29-7290

Clamp, Storage

$

$

Not available

8

Toro 32144-28

Screw-Phcr

$

$

Currently unavailable

9

Toro 29-7230

Lower Tubing

$

$

Not available

10

Toro 29-7340

T-HANDLE BRKT(RED)

$

$

Not available

11

Toro 33-7400

Wiring Harness

$

$

Not available

12

Toro 29-7440

Screw

$

$

Not available

13

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Toro 33-7370

Sleeve

$

$

Not available

15

Toro 29-7470

RUBBER INSERT

$

$

Not available

16

Toro 29-7320

Tee Handle

$

$

Not available

17

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

18

Toro 33-7240

Upper Tubing

$

$

Not available

19

Toro 33-8170

Caution Decal

$

$

Not available

20

Toro 32104-1

16 Self Tapping Screw

$

$

Currently unavailable

21

Toro 33-6900

Right Hand Grip

$

$

Not available

Toro 33-8210

Decal-VDE Approval

$

$

Not available
