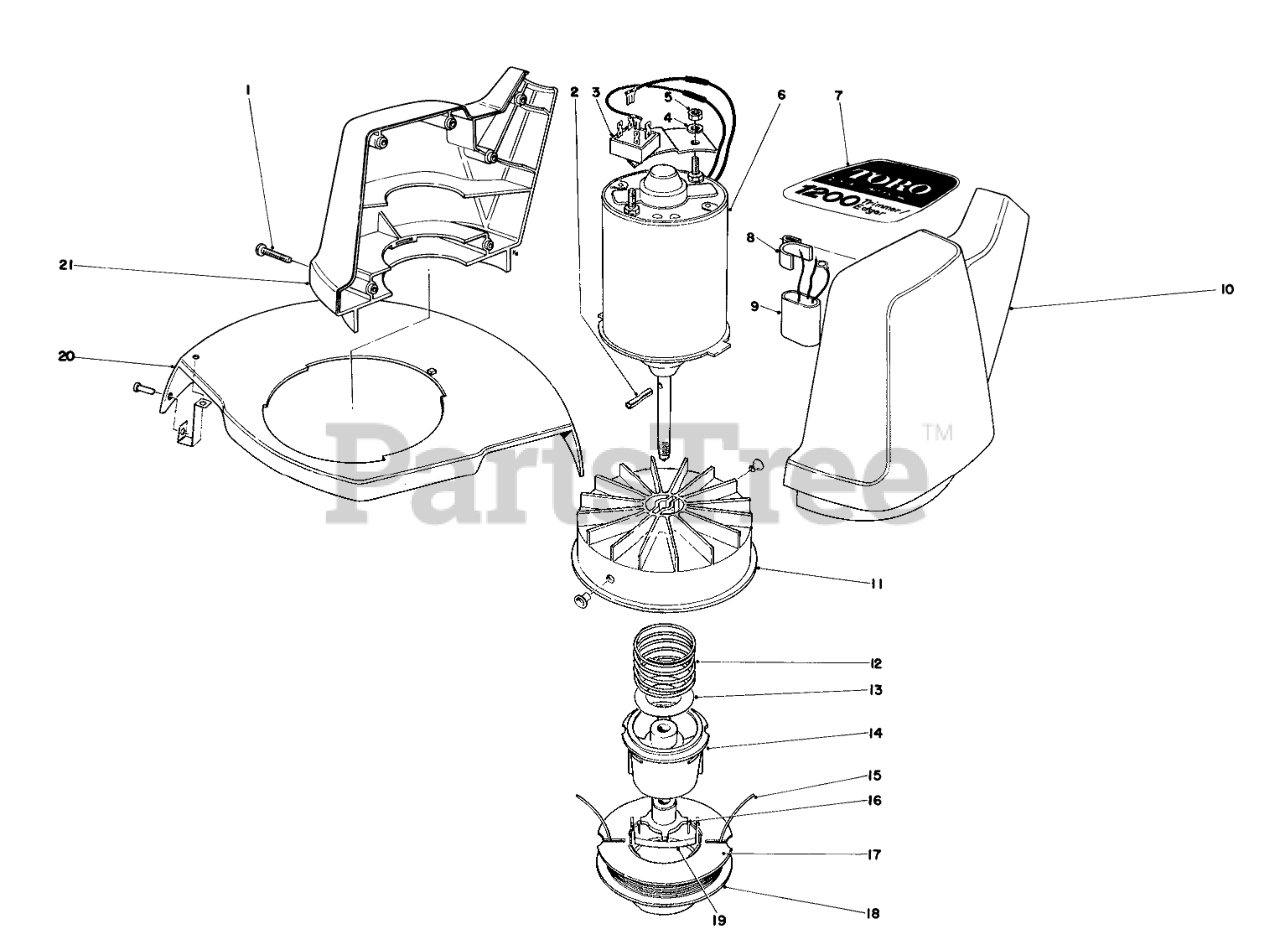

51410 (1200) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1978) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

3

Toro 33-7860

Bridge Rectifier Assembly

$

$

Not available

4

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

6

Toro 33-6160

Motor

$

$

Not available

7

Toro 33-8240

Toro 1200 Decal

$

$

Not available

8

Toro 33-7830

Clamp-Suppressor

$

$

Not available

11

Toro 33-9240

Drum W/Eyelets

$

$

Not available

12

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

13

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

14

Toro 33-6230

SPOOL CORE

$

$

Not available

15

Toro 88003

LINE-FILIMENT

$

$

Not available

16

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

17

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

18

Toro 88006

Prewound Spool (Incl. Ref. #9)

$

$

Currently unavailable

19

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

20

Toro 29-7370

Shield with Cut Off Blade

$

$

Not available

21

Toro 29-7060

Right Motor Housing

$

$

Not available
