514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Hood, Drag Stake & Tine Group Parts Diagram

Rear-Tine Tiller, 5hp

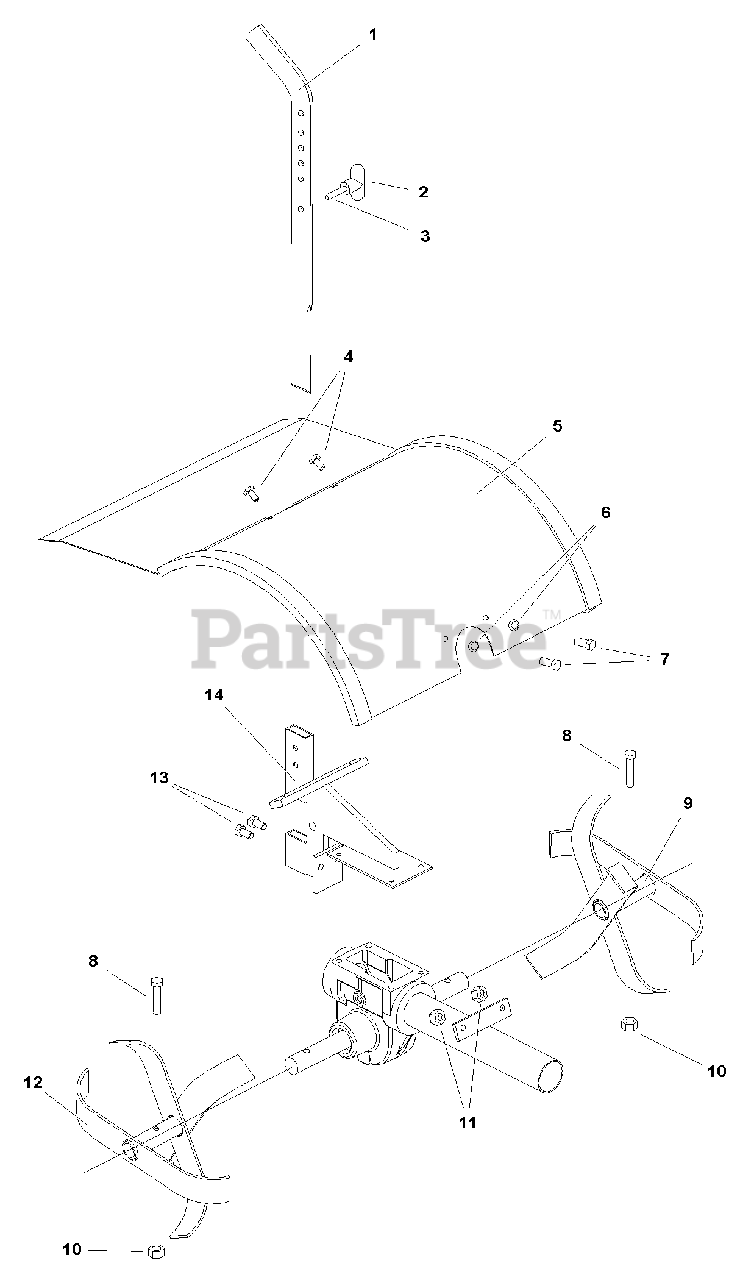

Hood, Drag Stake & Tine Group Parts Diagram

  • Title

1

Simplicity 1721510SM

LEVER, Depth Regulator

$55.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716743SM

KNOB, T handle, Drag Stake

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716742SM

PIN, Detent 5/16"-18 x 1"

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 1921958SM

CAPSCREW, 1/4"-20 x 1/2" G5

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721512SM

HOOD

$201.99

$

Usually ships in 2-12 days

0

6

Simplicity 1917356SM

LOCKWASHER, Spring 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1920787SM

CAPSCREW, 5/16"-18 x 1/2" G5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1921971SM

CAPSCREW, 3/8"-16 x 1 3/4" G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

9

Simplicity 1721513SM

TINE ASSEMBLY, LH

$164.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916950SM

NUT, Hex, 3/8"-16NC, 2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1935048SM

NUT, Hex Flange Head, 5/16"-18 Two, Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1721514SM

TINE ASSEMBLY, RH

$164.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716701SM

CAPSCREW, Hex Flange Head, 5/16"-18 x 1/2"

$

$

Not available

14

Simplicity 1721511SM

BRACKET, Depth Regulator

$66.99

$

Usually ships in 2-12 days

0
