514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Handle Bar Group Parts Diagram

Rear-Tine Tiller, 5hp

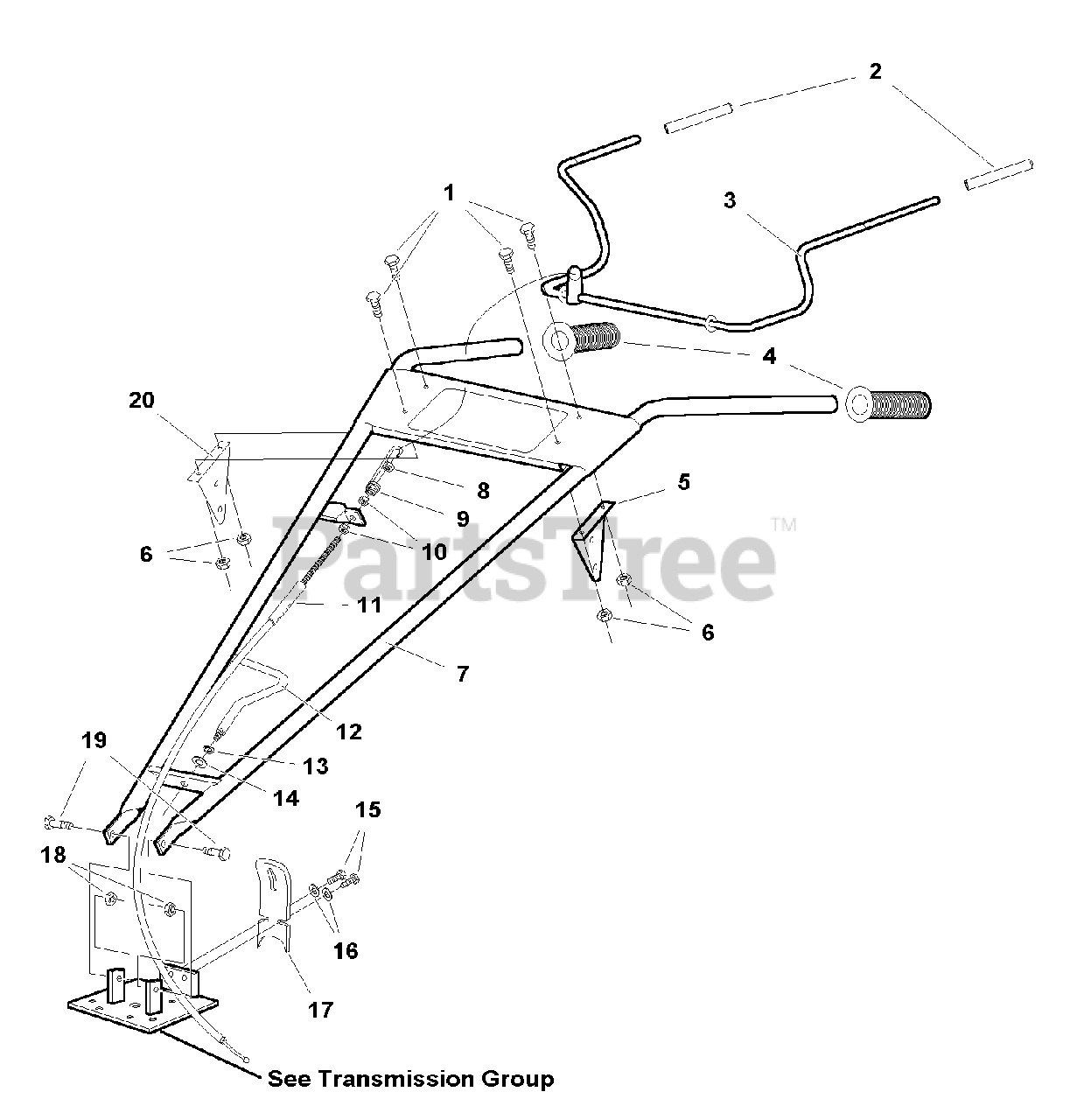

Handle Bar Group Parts Diagram

  • Title

1

Simplicity 1716731SM

CAPSCREW, Hex Head, 5MM X .8MM X 10MM

$1.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716699SM

HANDLE GRIP, Drive Control Lever

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 1721520SM

LEVER, Drive Control

$

$

Not available

4

Simplicity 1719038SM

HANDLE GRIP

$13.99

$

In Stock, only 1 left!

0

5

Simplicity 1716723SM

BRACKET, Drive Control Lever LH

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716732SM

NUT, Hex Nylok

$2.49

$

Usually ships in 2-12 days

0

7

Simplicity 1721518SM

HANDLE BAR ASSEMBLY, w/Tab

$

$

Not available

8

Simplicity 1933896SM

NUT, Hex Nylok
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

9

Simplicity 1716720SM

SPRING, Forward Cable Adjustment

$

$

Not available

10

Simplicity 2820438SM

NUT, Hex Jam, 5/16", 24NF, 2B

$3.49

$

In Stock, only 2 left!

0

11

Simplicity 1719037SM

CABLE ASSEMBLY

$67.99

$

In Stock, only 1 left!

0

12

Simplicity 1721517SM

CLAMP

$51.99

$

Usually ships in 2-12 days

0

13

Simplicity 1916965SM

LOCKWASHER, Spring 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Simplicity 1924940SM

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1921332SM

CAPSCREW, Hex Flange Head, 5/16"-18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Simplicity 1960044SM

WASHER, 5/16"

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1721519SM

PLATE, Height Adjust

$47.99

$

Usually ships in 2-12 days

0

18

Simplicity 1916950SM

NUT, Hex, 3/8"-16NC, 2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1921210SM

CAPSCREW, 3/8"-16 x 1" G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

20

Simplicity 1716722SM

BRACKET, Drive Control Lever RH

$

$

Not available
