514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Engine Mount, Belts & Wheels Group Parts Diagram

Rear-Tine Tiller, 5hp

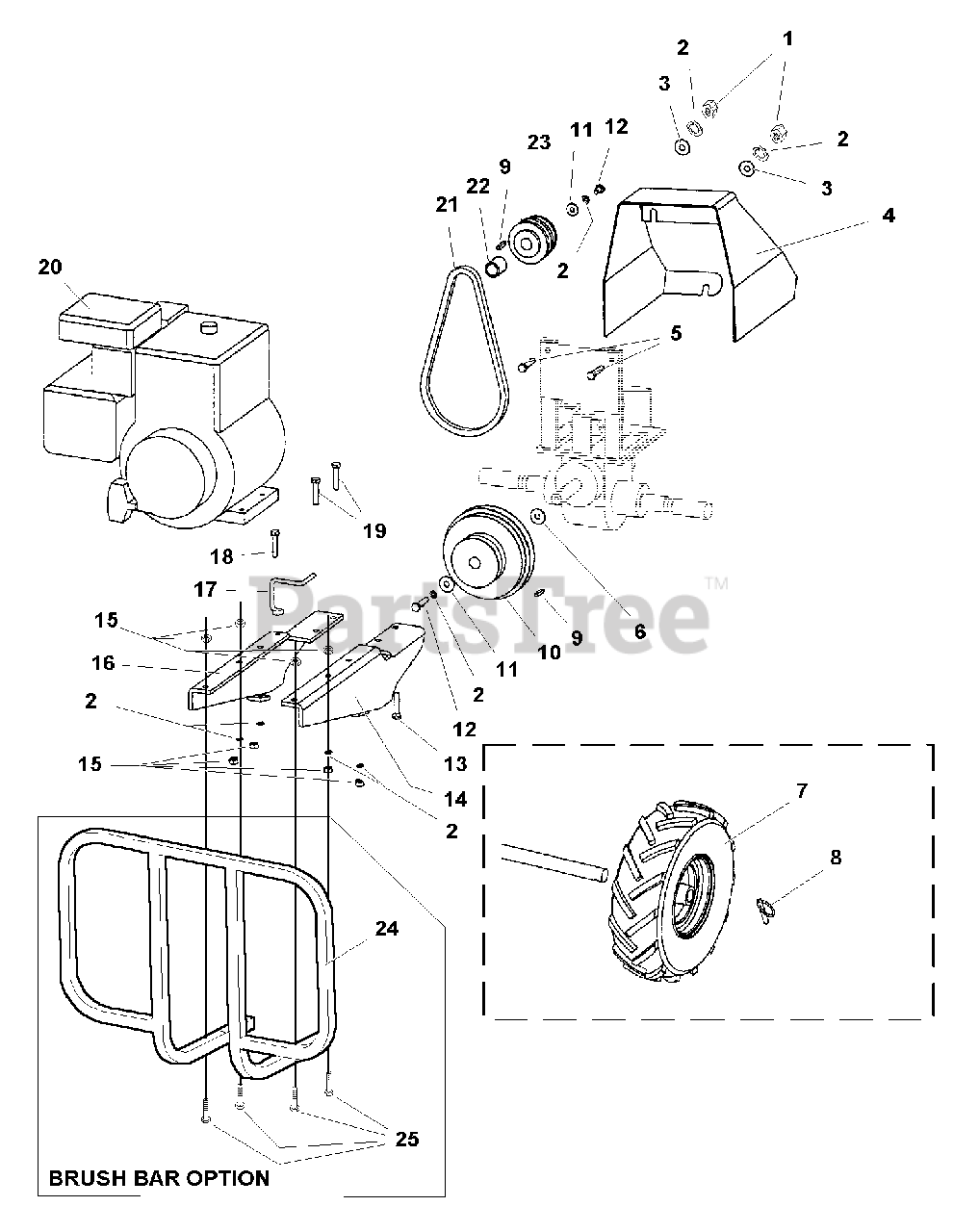

Engine Mount, Belts & Wheels Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, 5/16"-18NC, 2B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, Spring 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1960044SM

WASHER, 5/16"

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1716784SM

COVER, Belt

$93.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 2860164SM

WASHER, 5/8"

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 1721524SM

WHEEL & TIRE ASSEMBLY, Right

$158.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721525SM

WHEEL & TIRE ASSEMBLY, Left

$131.99

$

In Stock, only 1 left!

0

8

Simplicity 1716776SM

PIN, Lock
(Superseded to 703160)

$5.49

$

In Stock, Qty 7

0

9

Simplicity 2805850SM

KEY, Parrallel

$

$

Not available

10

Simplicity 1716768SM

PULLEY, Transmission

$120.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716770SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921515SM

CAPSCREW, 5/16"-24 x 3/4" G5

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960470SM

CAPSCREW, Hex Socket Head, 5/16"-18 x 11/4" G8

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716753SM

BRACKET, Engine Mount LH

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 1935048SM

NUT, Hex Flange Head, 5/16"-18 TWO, WAY Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1716752SM

BRACKET, Engine Mount RH

$72.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716767SM

GUIDE, Belt Forward

$

$

Not available

18

Simplicity 1716756SM

CAPSCREW, 5/16"-24 x 1/2"

$

$

Not available

19

Simplicity 1922127SM

CAPSCREW, 5/16"-18 x 1 3/4" G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

20

ENGINE, 5.0HP Tecumseh - Engine Model 135392, Engine Type 1320-E1

$

$

Not available

21

Simplicity 1716765SM

V-BELT

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1716762SM

SPACER, Engine Pulley

$5.99

$

Usually ships in 2-12 days

0

23

Simplicity 1716764SM

PULLEY, Engine, Forward

$96.99

$

Usually ships in 2-12 days

0

24**

Simplicity 1721528SM

BUMPER, Guard

$265.99

$

Usually ships in 2-12 days

0

25**

Simplicity 1922127SM

CAPSCREW, 5/16"-18 x 13/4" G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0
