514 H (1693095) - AGCO 38" Lawn Tractor, 14hp 38" Mower Deck - Housing, Arbors & Blades Parts Diagram

38" Lawn Tractor, 14hp

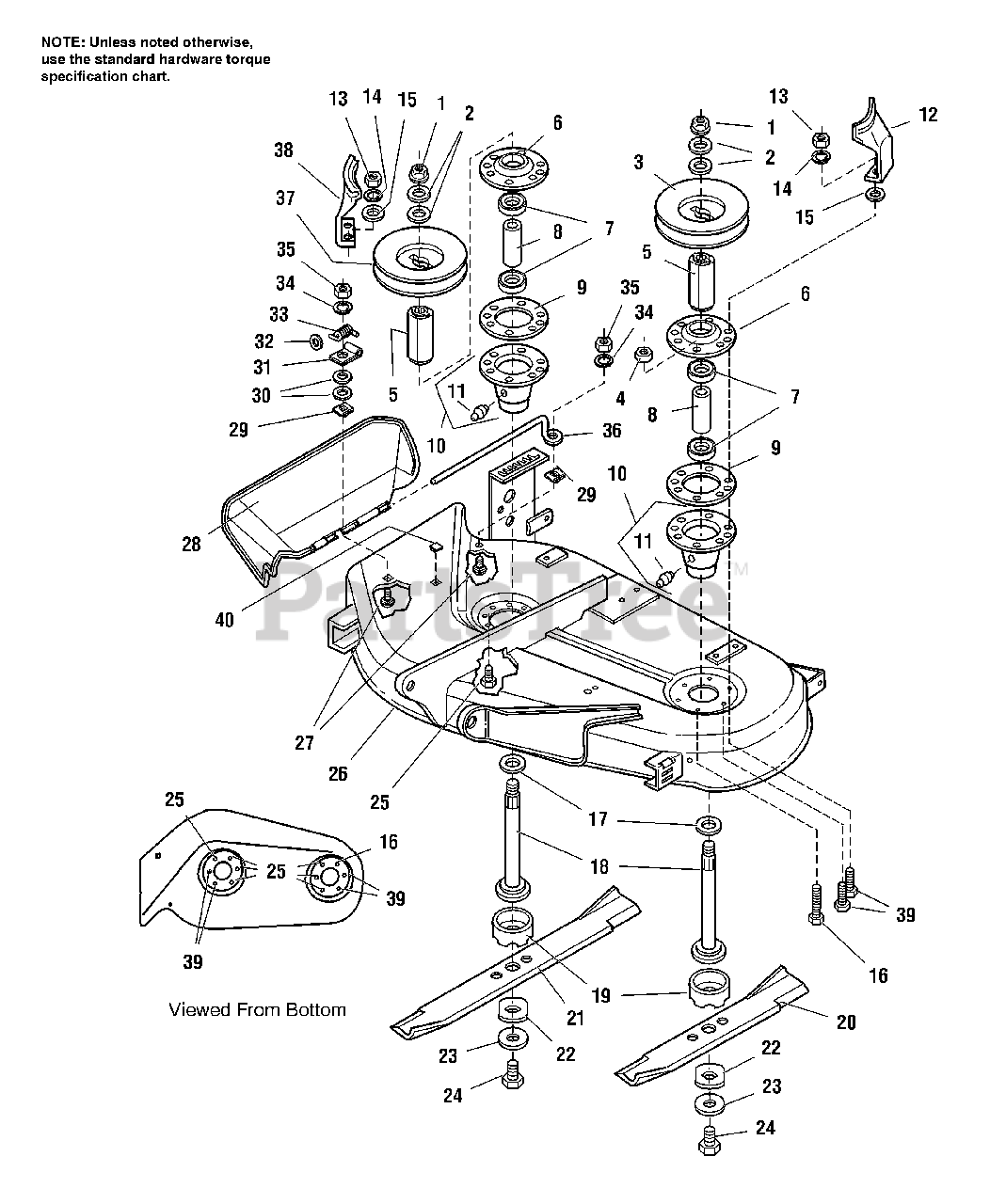

38" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex, Flange, 9/16-8

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1720387SM

PULLEY, LH

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1713616SM

HUB

$24.99

$

In Stock, Qty 20+

0

6

Simplicity 1713199ASM

COVER, Arbor Housing

$16.99

$

In Stock, Qty 20+

0

7

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

8

Simplicity 1732543SM

SPACER

$8.49

$

In Stock, Qty 20+

0

9

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 11)

$41.99

$

In Stock, Qty 20+

0

11

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1714321A

STOP, Belt, LH

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1930600SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

17

Simplicity 1713619SM

WASHER

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1713612SM

SHAFT, Arbor

$

$

Not available

19

Simplicity 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

20

Simplicity 1704856ASM

BLADE, Mower, 16-1/8"

$24.99

$

In Stock, Qty 20+

0

21

Simplicity 1704101ASM

BLADE, Mower, 22-1/4"
(Superseded to 1716695ASM)

$29.99

$

In Stock, Qty 20+

0

22

Simplicity 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

24

Simplicity 2823471SM

CAPSCREW, Hex, Hd., 7/16-14 x 1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1664847SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1686814SM

MOWER DECK HOUSING, 38", Orange
(Superseded to 1687148SM)

$1094.99

$

Usually ships in 2-12 days

0

26

Simplicity 1687148SM

MOWER DECK HOUSING, 38", Black

$1094.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 2 left!

0

29

Simplicity 1960518SM

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

31

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

33

Simplicity 1723938SM

SPRING

$

$

Not available

34

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

35

Simplicity 1916622SM

NUT, Hex, 1/4-20, UNC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

37

Simplicity 1720388SM

PULLEY, RH

$32.99

$

In Stock, Qty 15

0

38

Simplicity 1714322A

STOP, Belt, RH
(Superseded to 1714322ASM)

$9.49

$

Usually ships in 2-12 days

0

39

Simplicity 1960373SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1705115SM

PLUG, Plastic

$4.49

$

In Stock, only 1 left!

0
