514 (514135) - Cub Cadet Rear-Engine Riding Mower (1985) 30" Rear Discharge Mowing Deck Parts Diagram

Rear-Engine Riding Mower

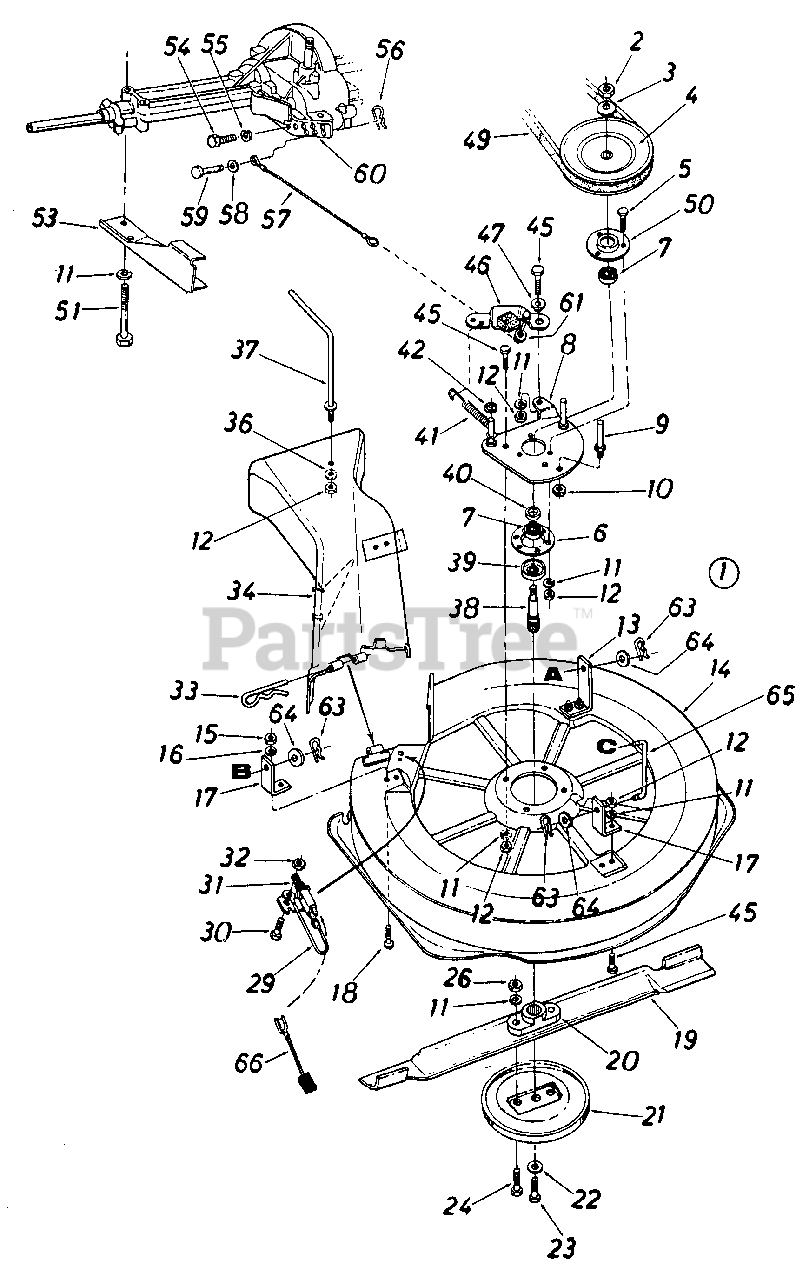

30" Rear Discharge Mowing Deck Parts Diagram

  • Title

1

Cub Cadet 15900

DECK ASSY-30IN-COMP

Note: (Service Only)

$

$

Not available

2

Cub Cadet 712-0318

NUT-HEX JAM 5/8-18

$3.49

$

In Stock, Qty 12

0

3

Cub Cadet 736-0317

WASHER-BELL

$7.99

$

In Stock, Qty 20+

0

4

Cub Cadet 756-0430

PULLEY

$100.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0259

SCREW-HEX SEMS 5/16-18 X .62

$

$

Not available

6

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

7

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

8

Cub Cadet 15919

PLATE-MTG-SPINDLE

$

$

Currently unavailable

9

Cub Cadet 711-0640

STUD-3/8-16X2.75

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

13

Cub Cadet 15916

BRACKET-HANGER

$

$

Currently unavailable

14

Cub Cadet 15906

DECK ASSEMBLY-30IN

Variations

Cub Cadet 15906-0483

DECK ASSEMBLY-30IN RD - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15906-0637

DECK ASSEMBLY-30IN RD (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15906-0638

DECK ASSEMBLY-30IN RD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

Cub Cadet 15906

DECK ASSEMBLY-30IN

Variations

Cub Cadet 15906-0483

DECK ASSEMBLY-30IN RD - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15906-0637

DECK ASSEMBLY-30IN RD (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15906-0638

DECK ASSEMBLY-30IN RD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

17

Cub Cadet 15915

BRACKET-HANGER

$

$

Not available

18

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 X .75

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 742-0280

BLADE-30IN-RD

$

$

Not available

20

Cub Cadet 748-0300

ADAPTER-BLADE

$13.99

$

In Stock, only 4 left!

0

21

Cub Cadet 07919

PLATE-ANTI SCALP
(Superseded to 07919B-0637)

Note: (Optional)

$

$

Not available

22

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

29

Cub Cadet 725-0765

WIRE-REV LOCKOUT

$

$

Not available

30

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

31

Cub Cadet 725-0269

SWITCH-SAFETY
(Superseded to 925-0269)

$

$

Not available

32

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0155

PIN-COTTER
(Superseded to 714-0174)

$

$

Not available

34

Cub Cadet 731-0715

DEFLECTOR-CHUTE RD
(Superseded to 96094A)

$

$

Not available

36

Cub Cadet 736-0271

WASHER-SHAKE PROOF
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

37

Cub Cadet 747-0474

ROD

$

$

Not available

38

Cub Cadet 738-0577

SPINDLE-BLADE

$

$

Not available

39

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

40

Cub Cadet 750-0456

SPACER

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 732-0157

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-0201

NUT-PUSH

$6.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 16054

BRACKET ASSY

$

$

Not available

47

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 754-0264

BELT-V 1/2 X 52
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 15296

HOUSING-BRG
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

51

Cub Cadet 710-0176

SCREW-HEX 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

53

Cub Cadet 15625

GUARD-BELT-LOWER

$

$

Not available

54

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

56

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 727-0290

CABLE ASSY-BRAKE
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 711-0701

PIN-CLEVIS-1/4X1/2
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 15626

GUARD-BELT-LOWER
(Superseded to 15626B-0637)

$

$

Not available

61

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 747-0428

LINK-DECK

$

$

Currently unavailable

66

Cub Cadet 725-1037

WIRE

$

$

Not available
