51359 - Toro 30cm String Trimmer, Electric, Canada (SN: 079000001 - 079999999) (1997) MOTOR AND HOUSING ASSEMBLY Parts Diagram

30cm String Trimmer, Electric, Canada

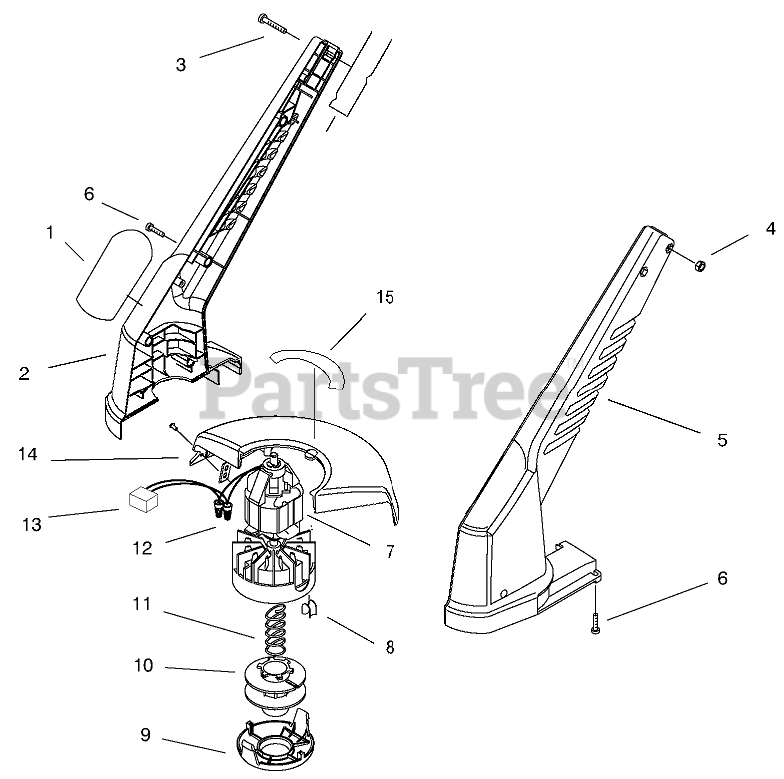

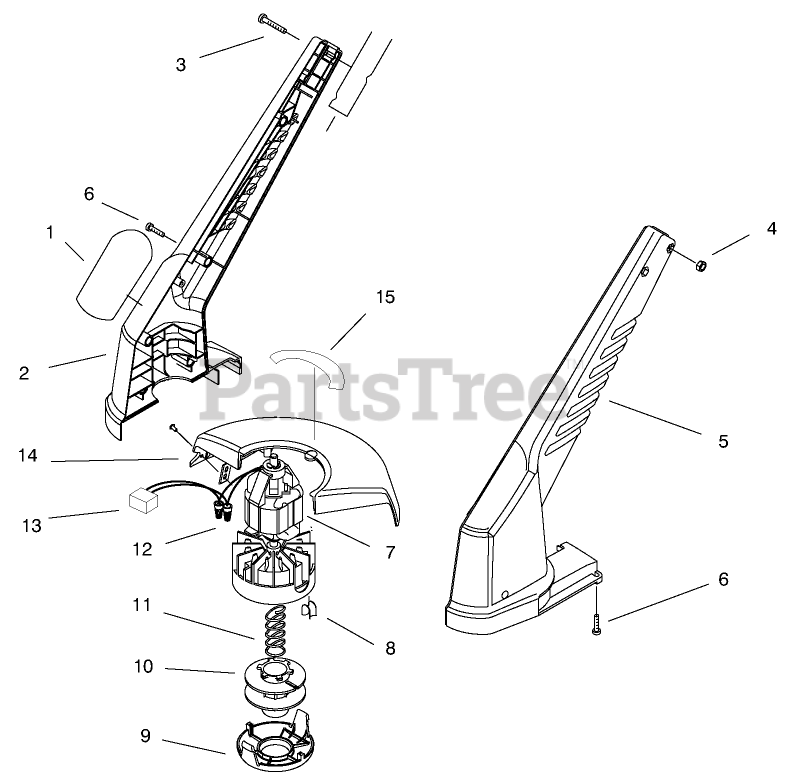

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 95-5092

DECAL-TRIMMER 30CM,AUSTRA

$

$

Not available

2

Toro 95-5060

HOUSING - RH

$

$

Not available

3

Toro 3250-52

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 3217-44

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

5

Toro 95-5059

HOUSING - LH

$

$

Not available

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 93-8709

Motor Assembly-Trimmer (Incl. Ref. #8)

$

$

Not available

8

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

9

Toro 73-8200

CAP

$

$

Not available

10

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

11

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

12

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

13

Toro 73-9960

FILTER - RFI

$

$

Not available

14

Toro 73-9091

SHIELD ASM

$

$

Not available

15

Toro 95-5099

DECAL-SHIELD,TRIMMER,AUS

$

$

Not available

Toro 95-4446

Spool & Line Assembly (Incl. Ref. #10)(Parts)

Note: Not illustrated

$

$

Not available

Toro 88197

Spool & Line Assembly (Whole Goods)(Ryobi Model #165915)

Note: Not illustrated

$

$

Currently unavailable
