51359 - Toro 30cm String Trimmer, Electric, Canada (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

30cm String Trimmer, Electric, Canada

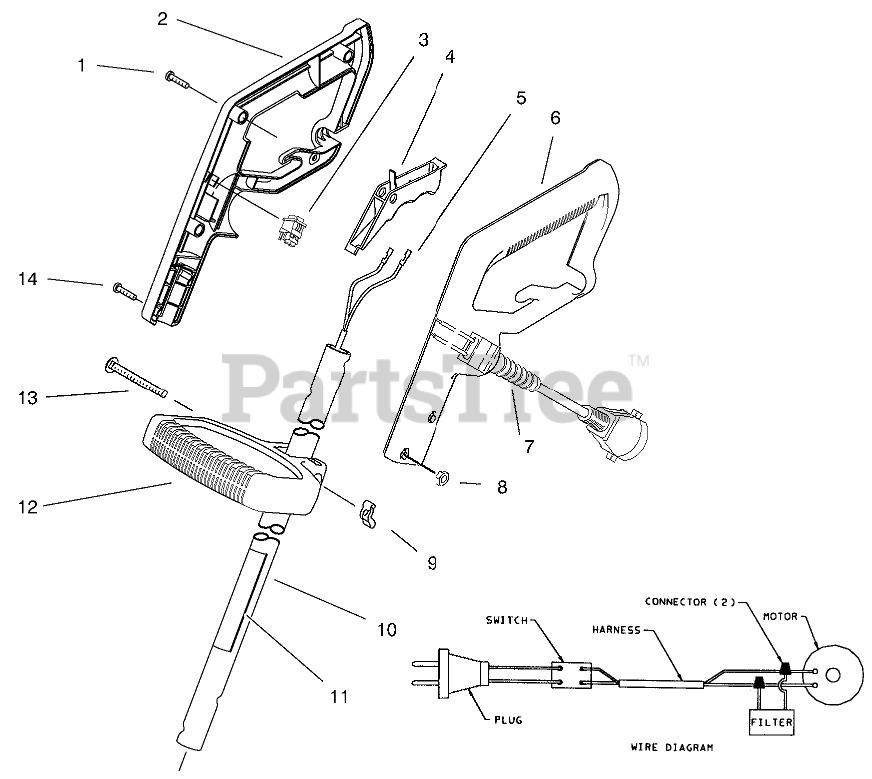

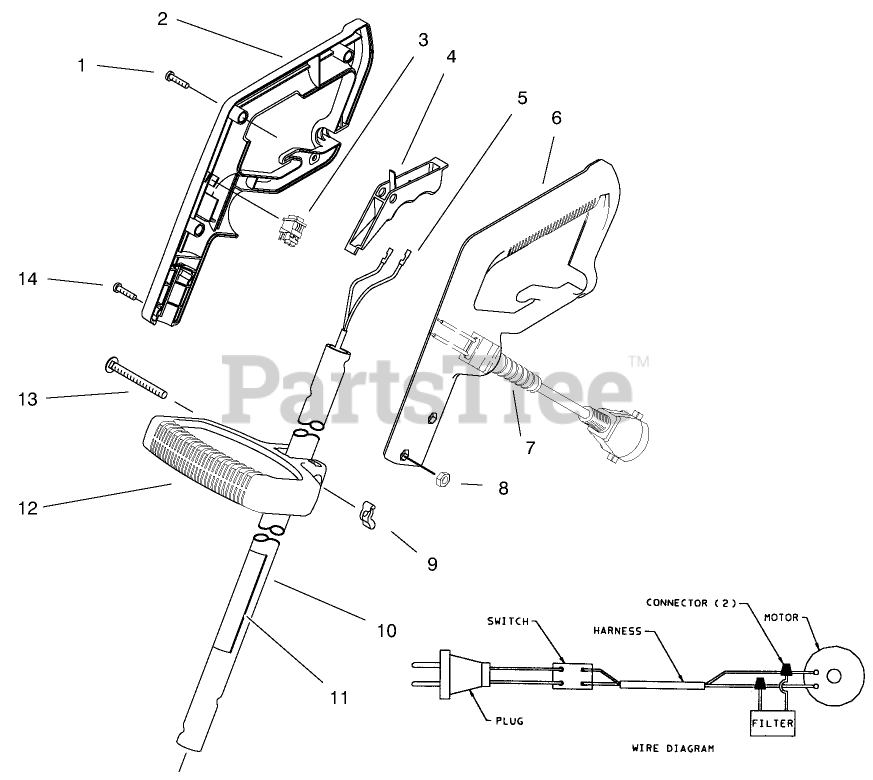

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 73-8151

HAND GRIP RH

$

$

Not available

3

Toro 73-9950

SWITCH - 230V

$

$

Not available

4

Toro 73-8170

TRIGGER

$

$

Not available

5

Toro 93-4459

HARNESS - WIRE

$20.99

$

Usually ships in 3-6 days

0

6

Toro 73-8161

HAND GRIP LH

$

$

Not available

7

Toro 95-1666

CORD - POWER SUPPLY

$

$

Not available

8

Toro 3217-44

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

9

Toro 32103-30

1/4"-20 STAMP WNG NUT

$1.99

$

In Stock, only 1 left!

0

10

Toro 93-4485

Tube Assembly (Incl. Ref. #11)

$

$

Not available

11

Toro 93-9098

DECAL - WARNING

$

$

Not available

12

Toro 73-8310

MID HANDLE

$7.99

$

Usually ships in 3-6 days

0

13

Toro 73-8740

SCREW-CARR.25-20 X 2.50

$2.49

$

Usually ships in 3-6 days

0

14

Toro 3250-52

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0
