51357 - Toro 15" Trim and Edge String Trimmer, Electric (SN: 230000001 - 230999999) (2003) MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram

15" Trim and Edge String Trimmer, Electric

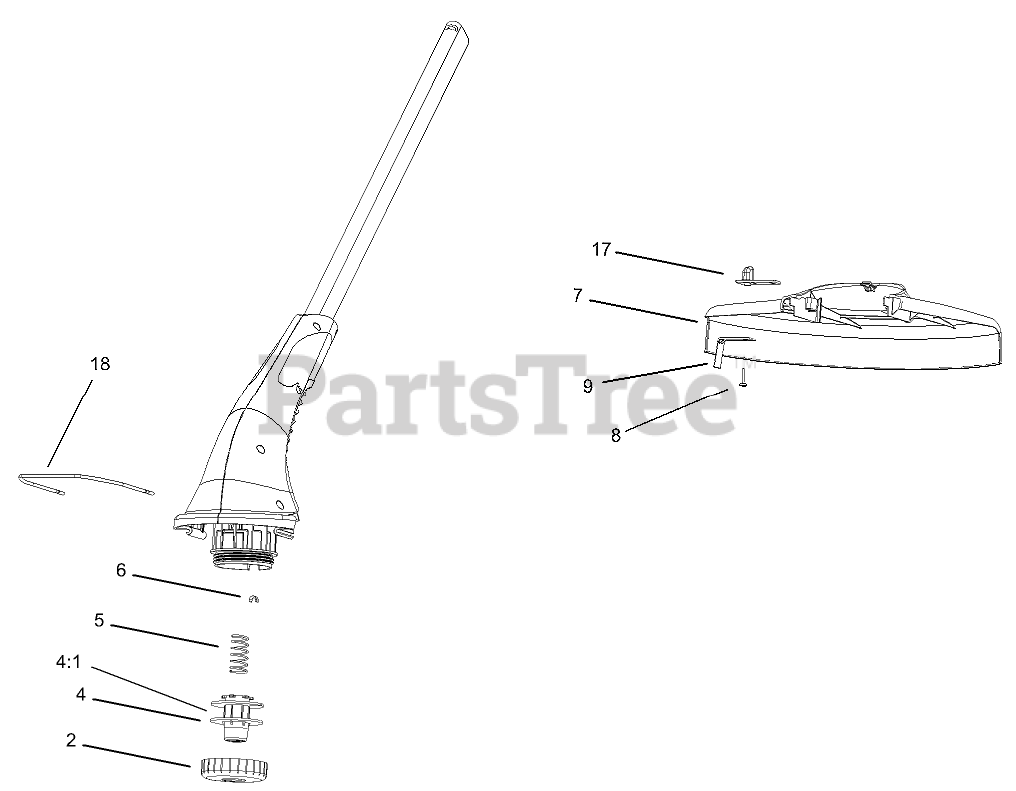

MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram

  • Title
2

Toro 105-9422

Cap-Drum

$11.99

$

In Stock, only 1 left!

0

4

Toro 73-8490

.065 SPOOL ASM
(Superseded to 88175)

$23.99

$

In Stock, only 1 left!

0

4:1

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

4:2

Toro 7420625

LINE-FILIMENT
(Superseded to 88003)

Note: Not illustrated

$

$

Not available

5

Toro 105-9423

Spring-Extension

$3.99

$

In Stock, Qty 6

0

6

Toro 105-9424

Eyelet-Drum
(Superseded to 107-3344)

$4.99

$

In Stock, Qty 9

0

7

Toro 105-9438

Shield-Variable Cut

$43.99

$

In Stock, only 3 left!

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 105-9439

Blade-Variable Cut

$3.49

$

In Stock, only 2 left!

0

17

Toro 105-9440

Slide-Variable Cut

$1.49

$

In Stock, Qty 5

0

18

Toro 105-9427

Guide-Edge

$11.99

$

In Stock, Qty 20+

0
