51353 - Toro 15" String Trimmer/Edger, Electric (SN: 210000001 - 210999999) (2001) TRIMMER ASSEMBLY Parts Diagram

15" String Trimmer/Edger, Electric

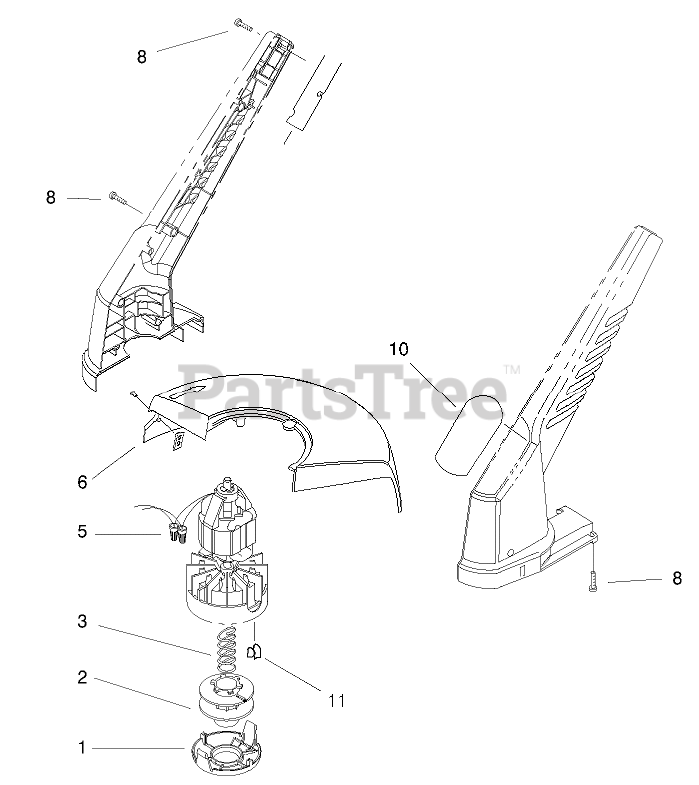

TRIMMER ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 98-9274

SHIELD ASM-15"(SERVICE)

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-1234

DECAL-15" TRIM 'N EDGE

$6.99

$

Usually ships in 3-6 days

0

11

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

Toro 73-8490

.065 SPOOL ASM
(Superseded to 88175)

Note: Not illustrated

$23.99

$

In Stock, only 2 left!

0
