51350 - Toro 14" String Trimmer/Edger, Electric (SN: 200000001 - 200999999) (2000) TRIMMER ASSEMBLY Parts Diagram
14" String Trimmer/Edger, Electric

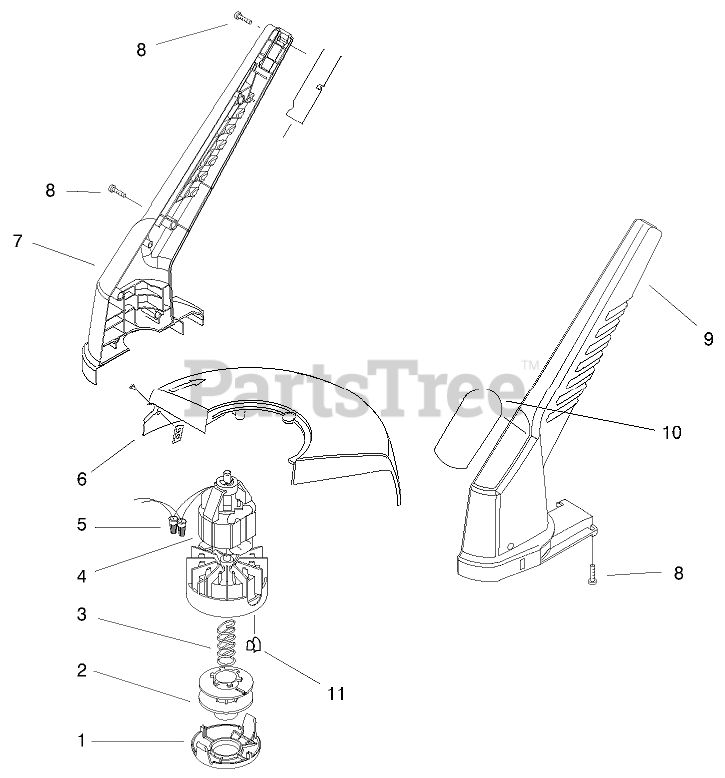

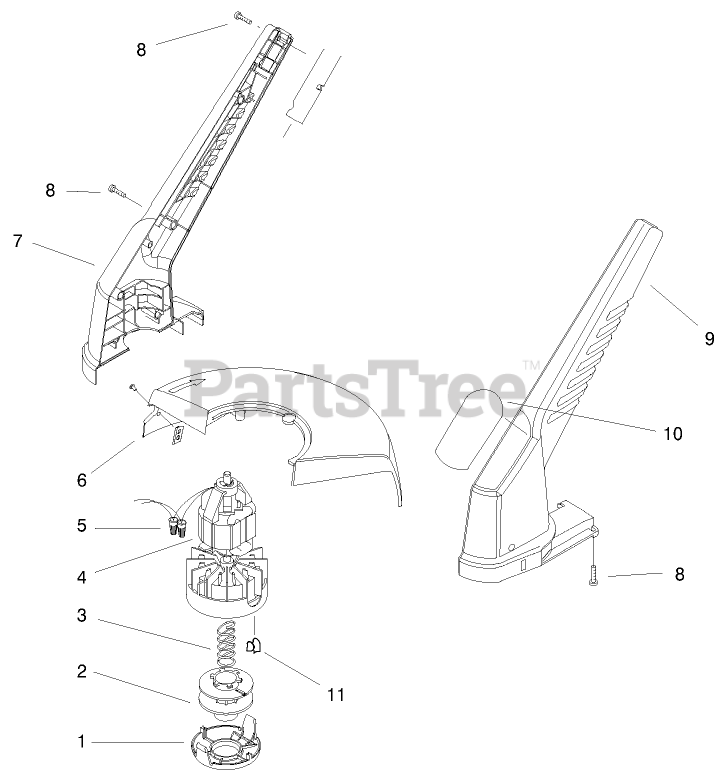

TRIMMER ASSEMBLY Parts Diagram
Toro 73-8200
CAP
$
$
Not available
Toro 73-8190
SPOOL-LARGE
$19.99
$
In Stock, Qty 11
Toro 73-8220
SPRING-COMPRESSION
$1.49
$
In Stock, Qty 11
Toro 73-9052
ASM-MOTOR,DRUM-SERVICE
$213.99
$
Usually ships in 3-6 days
Toro 73-6570
CONNECTOR-NUT, WIRE
$1.49
$
In Stock, only 2 left!
Toro 73-9092
SHIELD ASM - SERVICE
$
$
Not available
$
$
Not available
Toro 94-4496
SCREW-PPH
$1.49
$
In Stock, Qty 20+
$
$
Not available
Toro 100-1249
DECAL-14" TRIM 'N EDGE
$6.49
$
Usually ships in 3-6 days
Toro 73-8210
EYELET
$5.49
$
In Stock, Qty 8
$23.99
$
In Stock, only 1 left!
