5135 A99 - Electrolux/AYP Walk-Behind Mower (1999) BRIGGS AND STRATTON ENGINE Parts Diagram

Walk-Behind Mower

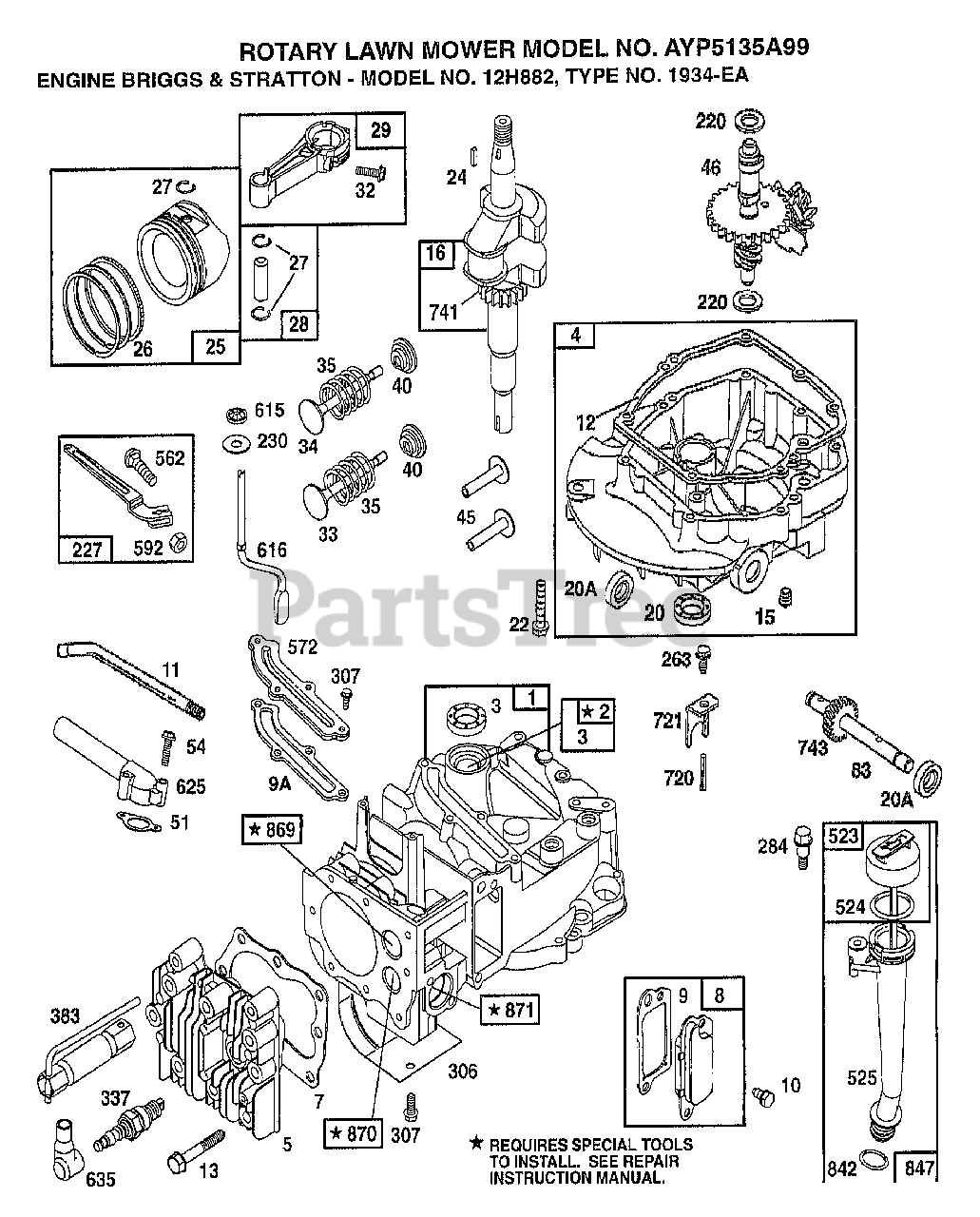

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 493260

CYLINDER ASSY
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 493365

SUMP, ENGINE

$63.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 214368

HEAD, CYLINDER
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

GASKET, CYLINDER HEAD
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

BREATHER, VALVE CHAMBER
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231933

TUBE, BREATHER
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

SCREW, CYLINDER HEAD
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

15

Briggs & Stratton 94470

PLUG, PIPE
(Superseded to 691093)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 498565

CRANKSHAFT
(Superseded to 797018)

$179.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 7

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94612

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 492177

FLYWHEEL
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499429

PISTON ASSEMBLY
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 499425

RING SET, PISTON, STANDARD SIZE

$

$

Not available

27

Briggs & Stratton 263190

LOCK, PISTON PIN
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

PIN, PISTON, STANDARD SIZE

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

ROD, CONNECTING
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

VALVE, EXHAUST
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

VALVE, INTAKE
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

SPRING, VALVE
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 262204

TAPPET, VALVE
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Electrolux/AYP 498625

GEAR, CAM

$

$

Not available

51

Briggs & Stratton 272199

GASKET, INTAKE ELBOW
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

SCREW, HEX HEAD
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 497442

HOUSING, REWIND STARTER
(Superseded to 691422)

$45.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 498144

PULLEY, REWIND STARTER

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

ROPE, REWIND STARTER (CUT TO 88-5/8)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 7

0

60

Briggs & Stratton 281434

GRIP, STARTER ROPE
(Superseded to 281434S)

$3.99

$

In Stock, only 4 left!

0

81

Briggs & Stratton 223664

LOCK, MUFFLER SCREW
(Superseded to 691740)

$5.49

$

In Stock, Qty 5

0

83

Briggs & Stratton 231711

SHAFT, AUXILIARY
(Superseded to 690521)

$25.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

110

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

117

Briggs & Stratton 494870

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

121

Briggs & Stratton 498260

CARBURETOR KIT

$16.99

$

In Stock, Qty 20+

0

124

Briggs & Stratton 94525

SCREW, CARBURETOR MOUNTING
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 498170

CARBURETOR
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

130

Briggs & Stratton 224908

VALVE, THROTTLE
(Superseded to 691203)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

SHAFT, THROTTLE

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

163

Briggs & Stratton 272653

GASKET AIR CLEANER
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 492790

HOSE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 398540

SCREW, HEX HEAD
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

188A

Briggs & Stratton 94644

SCREW, HEX HEAD
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 262579

LINK, GOVERNOR
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263044

SPRING, GOVERNOR
(Superseded to 690319)

$8.49

$

In Stock, only 1 left!

0

220

Briggs & Stratton 68938

WASHER, THRUST
(Superseded to 691074)

$

$

Not available

227

Briggs & Stratton 492349

LEVER, GOVERNOR
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

WASHER, THRUST
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94512

SCREW, HEX HEAD
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

263

Briggs & Stratton 94620

SCREW, HEX HEAD
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

284

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

300

Briggs & Stratton 494343

MUFFLER, EXHAUST
(Superseded to 494343S)

$23.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493293

HOUSING, BLOWER
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94744

SCREW, SEMS
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 224324

SHIELD, CYLINDER
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

ARMATURE, MAGNETO
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

WIRE GROUND
(Superseded to 692390)

$

$

Not available

358

Briggs & Stratton 497316

GASKET SET
(Superseded to 590508)

$37.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

387

Briggs & Stratton 496115

PRIMER, CARBURETOR
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

455

Briggs & Stratton 225121

CUP, STARTER
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

RETAINER, STARTER
(Superseded to 692299)

$4.99

$

In Stock, only 3 left!

0

459

Briggs & Stratton 281505

PAWL, RATCHET
(Superseded to 281505S)

$3.49

$

In Stock, Qty 9

0

461

Briggs & Stratton 94943

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691696)

$11.99

$

In Stock, Qty 5

0

515

Briggs & Stratton 263073

SPRING, RETAINER
(Superseded to 691855)

$4.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 495264

CAP W/DIPSTICK, OIL FILTER
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495265

TUBE, OIL FILLER

$

$

Not available

529

Briggs & Stratton 281299

GROMMET, BREATHER
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 94852

BOLT, GOVERNOR LEVER
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

572

Briggs & Stratton 224328

BAFFLE, CYLINDER
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

604

Briggs & Stratton 225103

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691757)

$24.99

$

In Stock, only 2 left!

0

606

Briggs & Stratton 224815

STRAP, BRKT
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 497680

STARTER, REWIND

$49.99

$

In Stock, Qty 20+

0

608

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 94908

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

613

Briggs & Stratton 94648

SCREW
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

615

Briggs & Stratton 94474

FASTENER
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

CRANK, GOVERNOR
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 497203

BRACKET, CARBURETOR
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

625

Briggs & Stratton 281085

TUBE, FUEL INTAKE
(Superseded to 794305)

$

$

Not available

634

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

670

Briggs & Stratton 280512

SPACER, FUEL TANK
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

670A

Briggs & Stratton 493823

SPACER, BRACKET

$6.49

$

In Stock, only 1 left!

0

720

Briggs & Stratton 93474

PIN, SHAFT
(Superseded to 691623)

$

$

Not available

721

Electrolux/AYP 224229

STOP, SHAFT

$

$

Not available

741

Briggs & Stratton 262598

GEAR, TIMING
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 231279

GEAR, DRIVE
(Superseded to 691772)

$82.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280966

SEAL, O-RING
(Superseded to 692296)

$4.99

$

In Stock, only 1 left!

0

843

Briggs & Stratton 272616

SLEEVE, LEVER
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 495263

TUBE ASSEMBLY, OIL
(Superseded to 692047)

$

$

Not available

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 213512

SEAT, INTAKE VALVE
(Superseded to 691155)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213513

SEAT, EXHAUST VALVE
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

GUIDE, EXHAUST VALVE

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272253

GASKET, MUFFLER
(Superseded to 691881)

$8.99

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 95013

SCREW, HEX
(Superseded to 691132)

$2.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 262640

SPRING, BRAKE
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

BRAKE ASSEMBLY
(Superseded to 796387)

$

$

Not available

925

Briggs & Stratton 281145

COVER, LINKAGE
(Superseded to 795403)

$10.99

$

Usually ships in 2-12 days

0

930

Briggs & Stratton 281136

GUARD FINGER
(Superseded to 691919)

$28.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

CAP, FUEL TANK
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

966

Briggs & Stratton 496116

BASE AIR CLEANER
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

COVER AIR CLEANER
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

SCREW, HEX HEAD
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 94121

SCREW, HEX HEAD
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

971A

Briggs & Stratton 94749

SCREW, HEX HEAD
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

TANK ASSY FUEL
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 498261

CARBURETOR GASKET SET
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 499341

LABEL KIT, EMISSION

$3.49

$

In Stock, only 1 left!

0

1095

Briggs & Stratton 498258

GASKET SET, VALVE OVERHAUL

$27.99

$

Usually ships in 2-12 days

0

2500

Electrolux/AYP 12J802-2915

ENGINE

$

$

Not available

Electrolux/AYP 498826

SHORTBLOCK

$

$

Not available

Briggs & Stratton 498528

GASKET SET

$26.99

$

Usually ships in 2-12 days

0
