51333R - Troy-Bilt 33" Tiller Attachment (SN: 0100101 - 0199999) 33" TILLER ATTACHMENT Parts Diagram

33" Tiller Attachment

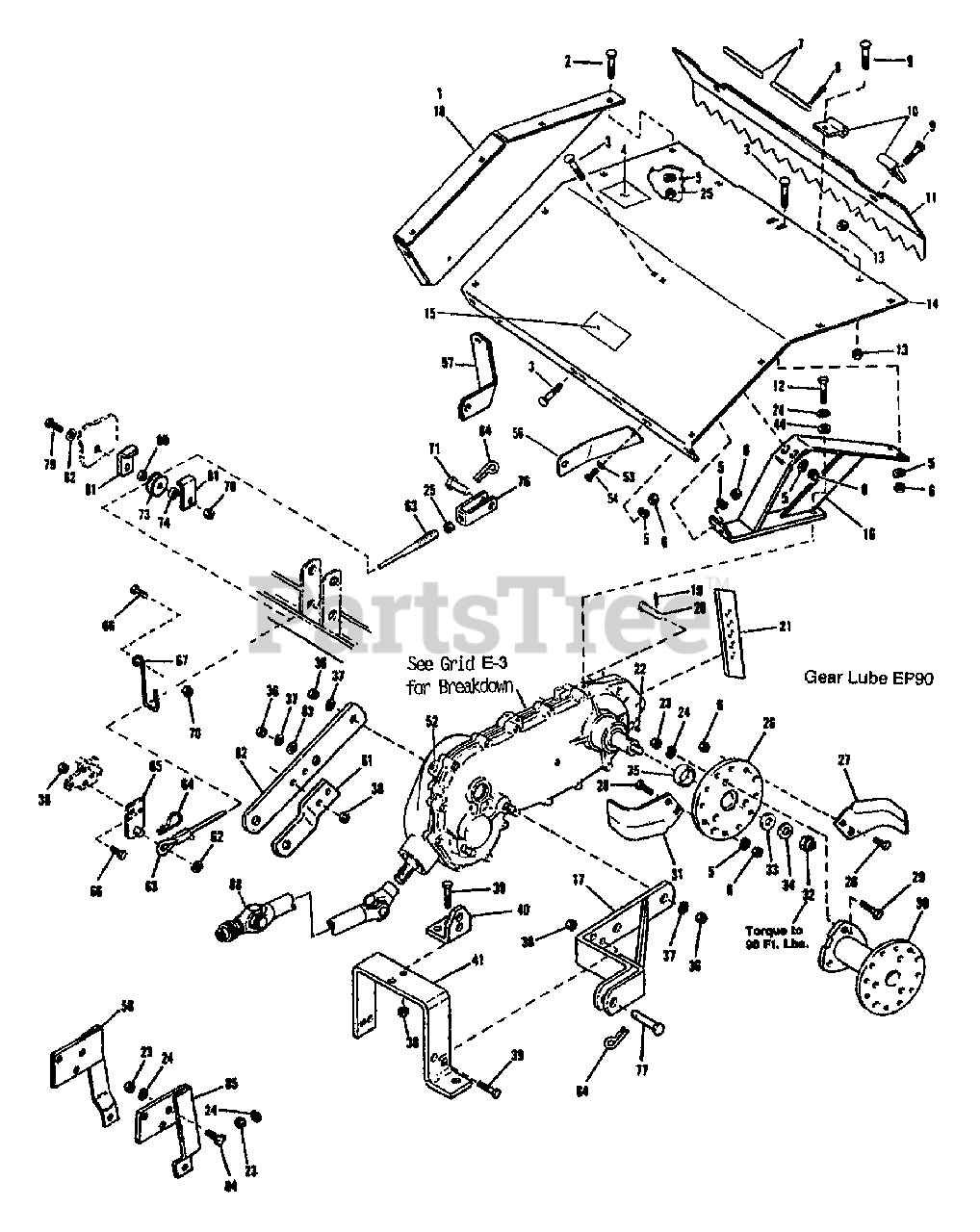

33" TILLER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1723035

HOOD-RH

$

$

Currently unavailable

2

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

3

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

4

MTD 1745889

DECAL-LOGO

$

$

Not available

5

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

7

Troy-Bilt 1723031GAR

PIN, HINGE

$

$

Currently unavailable

8

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

9

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1718196GAR

HINGE

$

$

Currently unavailable

11

Troy-Bilt 1723504GAR

BOARD-LEVELING

$

$

Currently unavailable

12

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1757878

HOOD

$

$

Currently unavailable

15

Troy-Bilt 1742798

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

16

MTD 1729222GAR

SUPPORT

$

$

Not available

17

Troy-Bilt 1744960GAR

ASSM-LIFT ARM

$

$

Currently unavailable

18

Troy-Bilt 1723034GAR

HOOD-LH SIDE

$

$

Currently unavailable

19

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

20

MTD 1186431

PIN-CLEVIS .5X2.5 ZP

$

$

Not available

21

Troy-Bilt 1718189GAR

CTR SHOE

$

$

Currently unavailable

22

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

25

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

26

Troy-Bilt 1727907GAR

HUB-TINE

$

$

Currently unavailable

27

MTD 1709388GAR

TINE

$

$

Not available

28

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

29

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

30

Troy-Bilt 1718138GAR

SPACER-TINE

$

$

Currently unavailable

31

Troy-Bilt 1709387GAR

TINE
(Superseded to 1709387001)

$

$

Not available

32

MTD 1186435

NUT

$

$

Not available

33

MTD 1718765

WASHER-SPACER

$

$

Not available

34

MTD 1800041

WASHER-1.41X.656X.18 SPECIAL

$

$

Not available

35

MTD 1718170

SLEEVE

$

$

Not available

36

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

37

MTD 1100247

WASHER-LK 1.072X.634X.156

$

$

Not available

38

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

39

MTD 1186350

SCR-HFLK 3/8-16X1.75 G5ZP

$

$

Not available

40

Troy-Bilt 1744953GAR

BRKT-CABLE ANCHOR

$

$

Currently unavailable

41

Troy-Bilt 1744954GAR

BRKT-LIFT

$

$

Currently unavailable

44

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

52

MTD 1105678

PLUG-PIPE

$

$

Not available

53

MTD 1104008

WASHER-LK .375

$

$

Not available

54

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 1723029GAR

BRKT-SUPT LH

$

$

Currently unavailable

57

Troy-Bilt 1729239GAR

BRKT

$

$

Currently unavailable

58

Troy-Bilt 1733855GAR

ASSM-ARM HITCH RH

$

$

Currently unavailable

61

Troy-Bilt 1744961GAR

PLATE-DOUBLER

$

$

Currently unavailable

62

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

63

Troy-Bilt 1744967

CABLE-LIFT

$

$

Currently unavailable

64

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

?65

Troy-Bilt 1744936GAR

ASSM-ARM LIFT

$

$

Currently unavailable

66

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

67

MTD 1731956

GUIDE-CABLE

$

$

Not available

70

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

71

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

73

Troy-Bilt 1734508

ROLLER

$

$

Currently unavailable

74

MTD 1734509

SPACER-.75X.53X.656

$

$

Not available

76

MTD 1734192

YOKE-CABLE

$

$

Not available

77

Troy-Bilt 1744962

PIN-CLEVIS
(Superseded to 711-0174)

$10.99

$

Usually ships in 3-6 days

0

?78

Troy-Bilt 1186397

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

79

MTD 1100056

SCR-HH 1/2-13X2.5 G5 ZP

$

$

Not available

?80

MTD 1744899

SPACER-.875X.531X.47

$

$

Not available

?81

Troy-Bilt 1744952GAR

CABLE RETAINER

$

$

Currently unavailable

?82

Troy-Bilt 1744955GAR

SUPT-ARM

$

$

Currently unavailable

?83

MTD 1185847

WASHER-FLAT

$

$

Not available

84

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 1733854GAR

ASSM-ARM HITCH LH

$

$

Currently unavailable

?87

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

88

MTD 1755221GAR

SHAFT-DRIVE

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
