51332 - Lawn-Boy 12" String Trimmer, Electric (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

12" String Trimmer, Electric

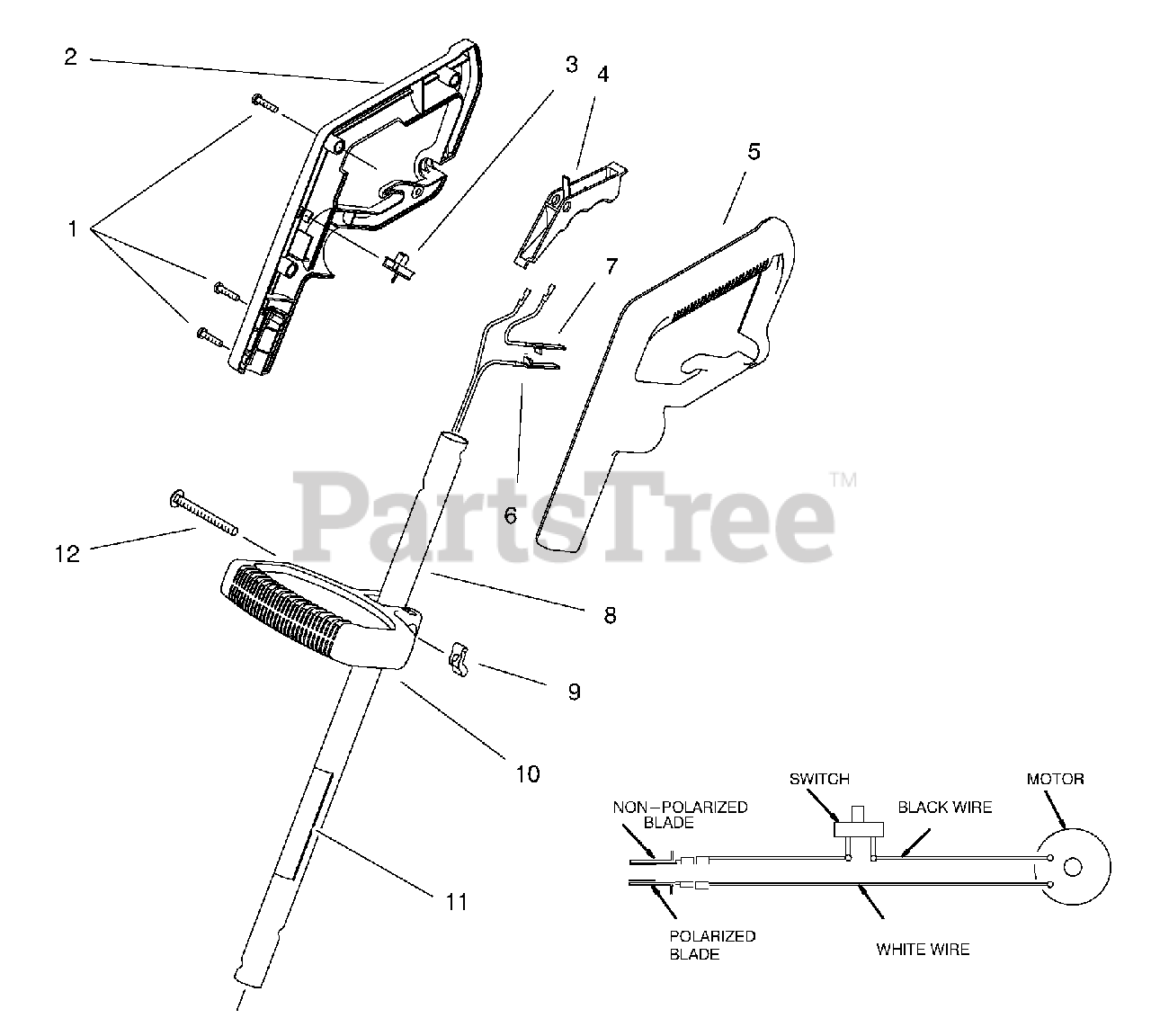

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 94-4496

Screw-Pan Hd Tapping

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 98-1839

Grip-Hand R.H.

$16.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 73-5600

Switch-Single Speed

$

$

Not available

4

$

$

Not available

5

Lawn-Boy 98-1840

Grip-Hand L.H.

$16.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 98-1849

Harness-Wire
(Superseded to 100-1233)

$

$

Not available

7

Lawn-Boy 98-1837

Jumper Wire Asm

$3.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 98-7183

Tube Assembly (Incl. Ref. #11)

$

$

Not available

9

$1.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 73-8310

Handle-Mid

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 98-7184

Decal-Safety

$

$

Not available

12

Lawn-Boy 73-8740

Screw-Carriage

$2.49

$

Usually ships in 3-6 days

0
