51330 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

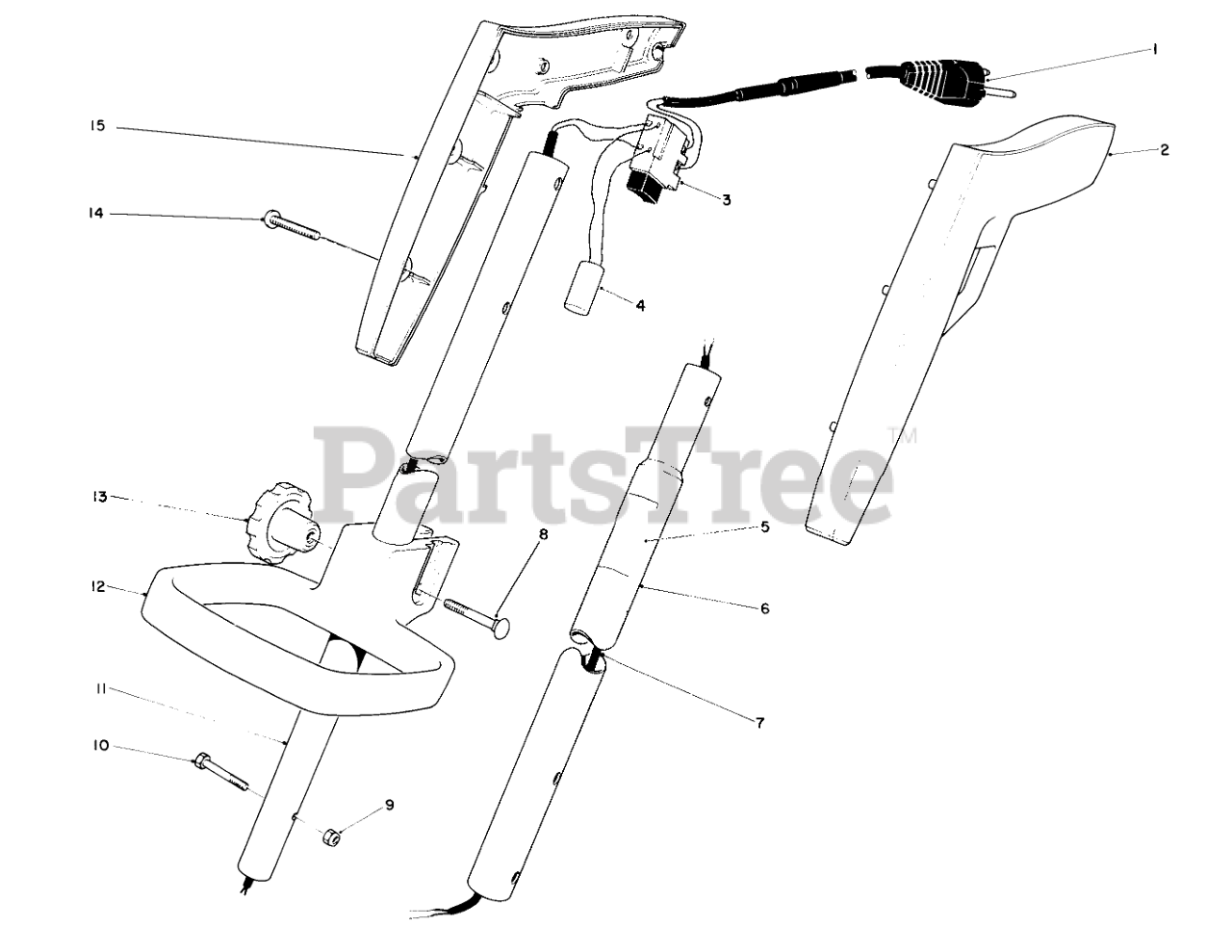

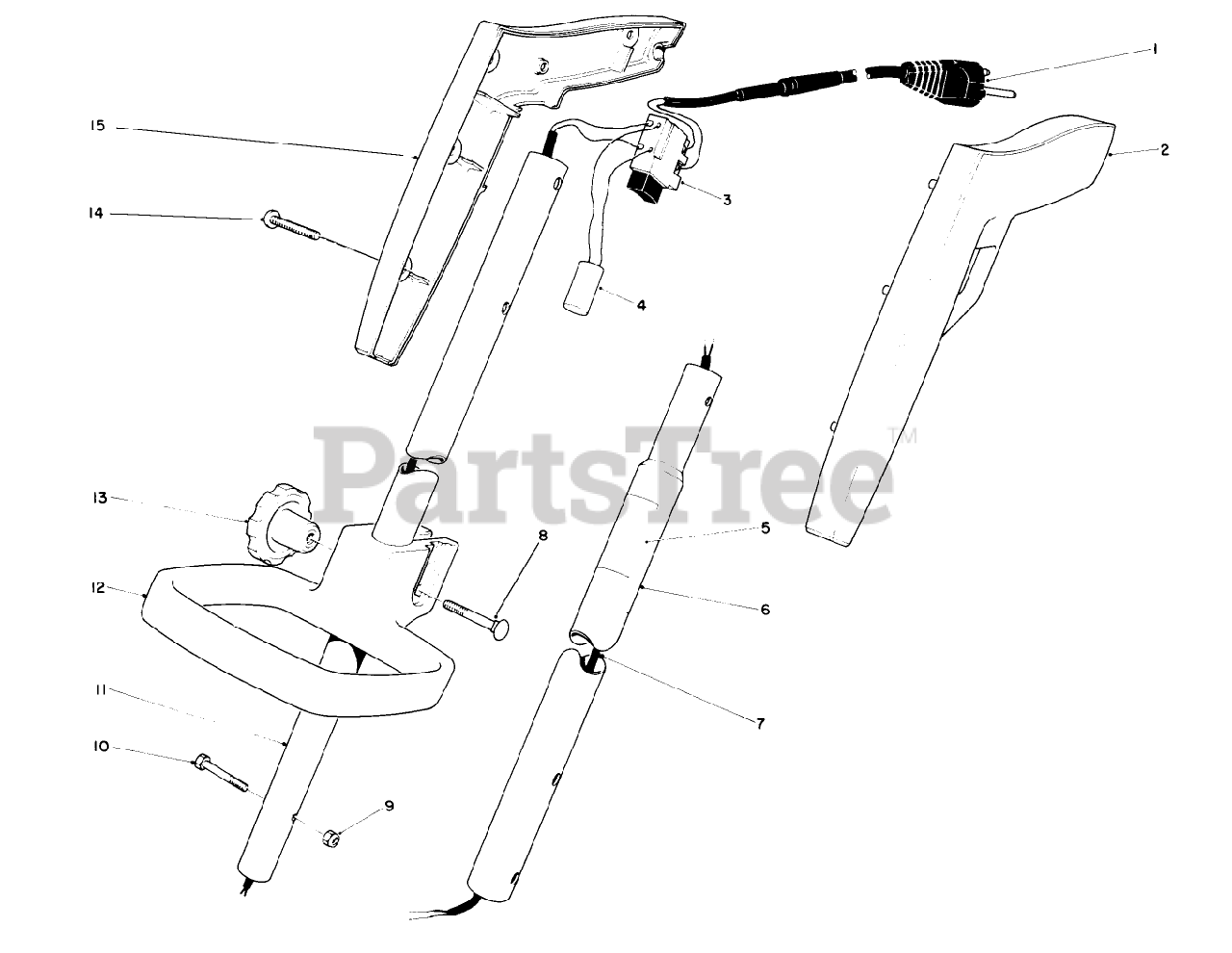

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 34-4690

Power Cord

$

$

Not available

2

Toro 34-4810

Grip-Left Hand

$

$

Not available

3

Toro 34-4660

Switch

$

$

Not available

4

Toro 33-7320

Suppressor

$

$

Not available

5

Toro 34-9050

Caution Decal

$

$

Not available

6

Toro 33-8870

Tube-Lower

$

$

Not available

7

Toro 34-9060

Wiring Harness

$

$

Not available

8

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

10

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

11

Toro 33-8880

Tube-Upper

$

$

Not available

12

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

13

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

14

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

15

Toro 34-4820

Grip-Right Hand

$

$

Not available

Toro 34-9070

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
