51328 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

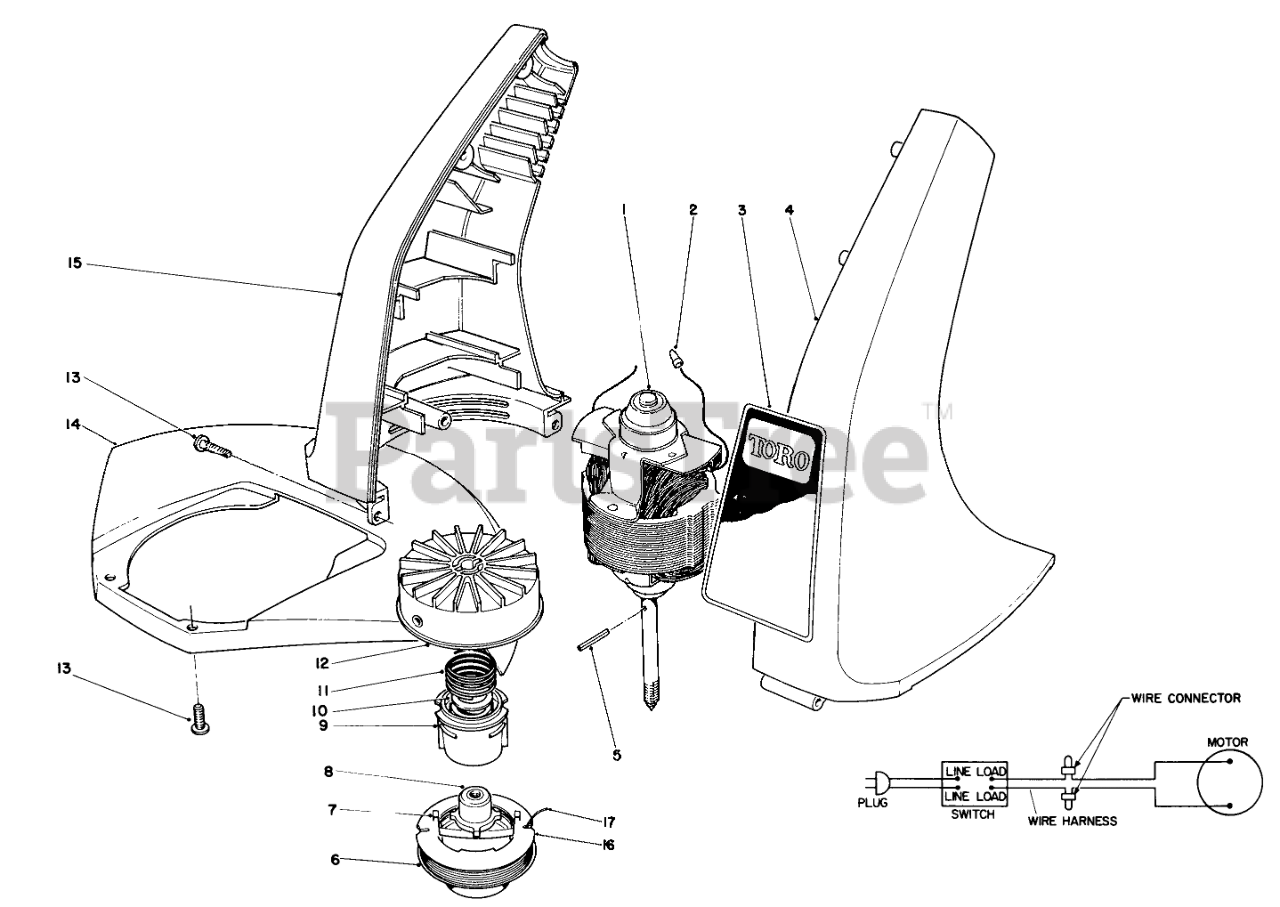

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 34-2790

Motor

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 73-1170

DECAL, 12" TRIMMER

$

$

Not available

4

Toro 34-3661

LH HOUSING, 12" TRIMMER

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 88005

Cutting Line (50 .065" Dia.)

$

$

Not available

7

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

8

Toro 42-6050

DRIVER

$23.99

$

Usually ships in 3-6 days

0

9

Toro 33-6230

SPOOL CORE

$

$

Not available

10

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

11

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

12

Toro 33-8970

DRUM W/EYELET

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 33-8841

Shield (Incl. Ref. #18 & 19)
(Superseded to 33-8832)

$

$

Not available

15

Toro 34-3651

RH HOUSING, 12" TRIMMER

$

$

Not available

16

Toro 29-7385

SPOOL CAP

$10.99

$

In Stock, only 1 left!

0

17

Toro 88003

LINE-FILIMENT

$

$

Not available

18

Rivet

$

$

Not available

19

Blade-Knife

$

$

Not available
