51325 (1100) - Toro String Trimmer, Electric (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

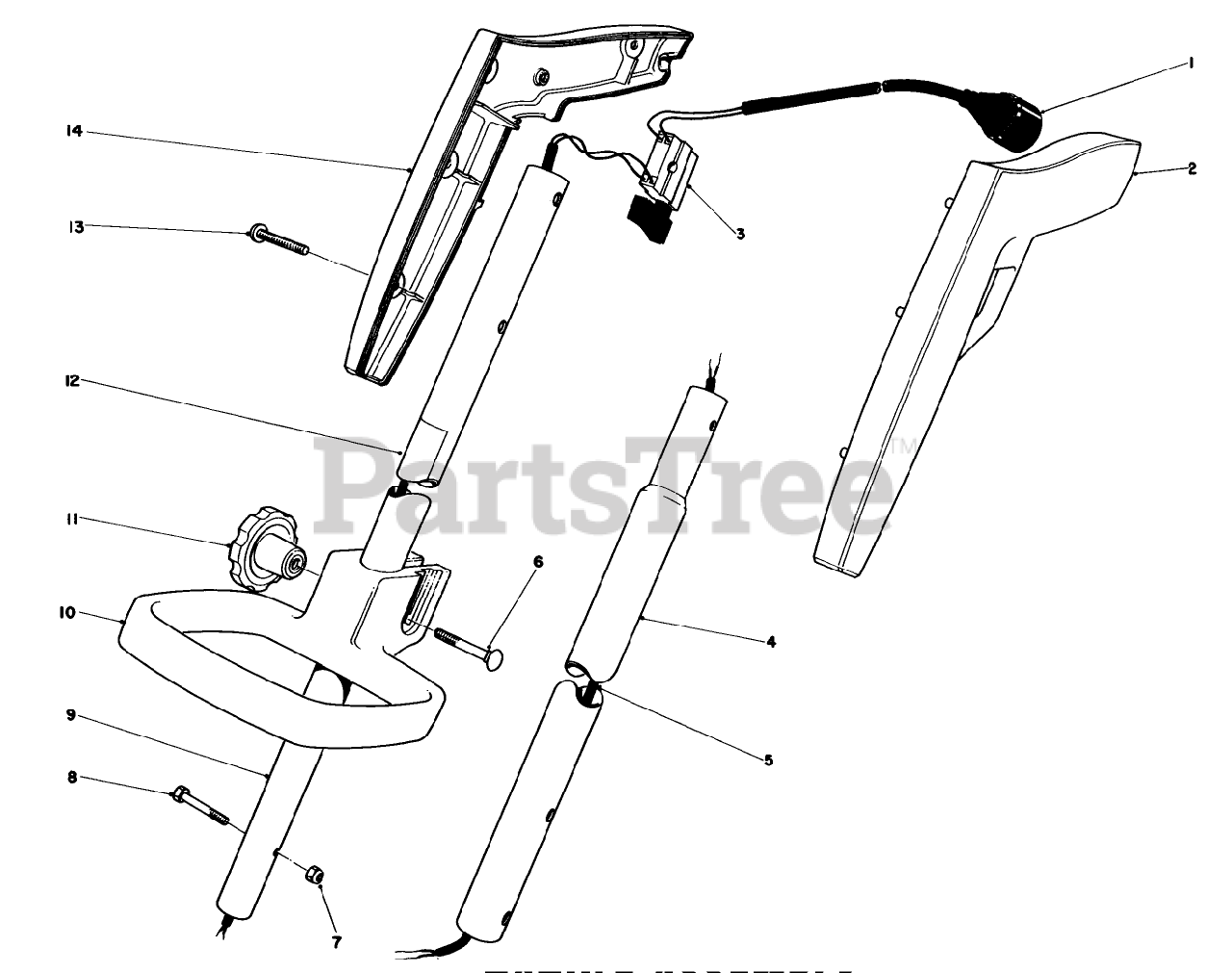

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8850

Cord-Power
(Superseded to 46-8851)

$

$

Not available

2

Toro 33-8810

Grip L.H.

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

4

Toro 33-8870

Tube-Lower

$

$

Not available

5

Toro 34-9260

Wiring Harness

$

$

Not available

6

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

9

Toro 33-8880

Tube-Upper

$

$

Not available

10

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 33-8820

R.H. GRIP

$

$

Not available

Toro 33-8740

Loose Parts

Note: Not illustrated

$

$

Not available
