51325 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

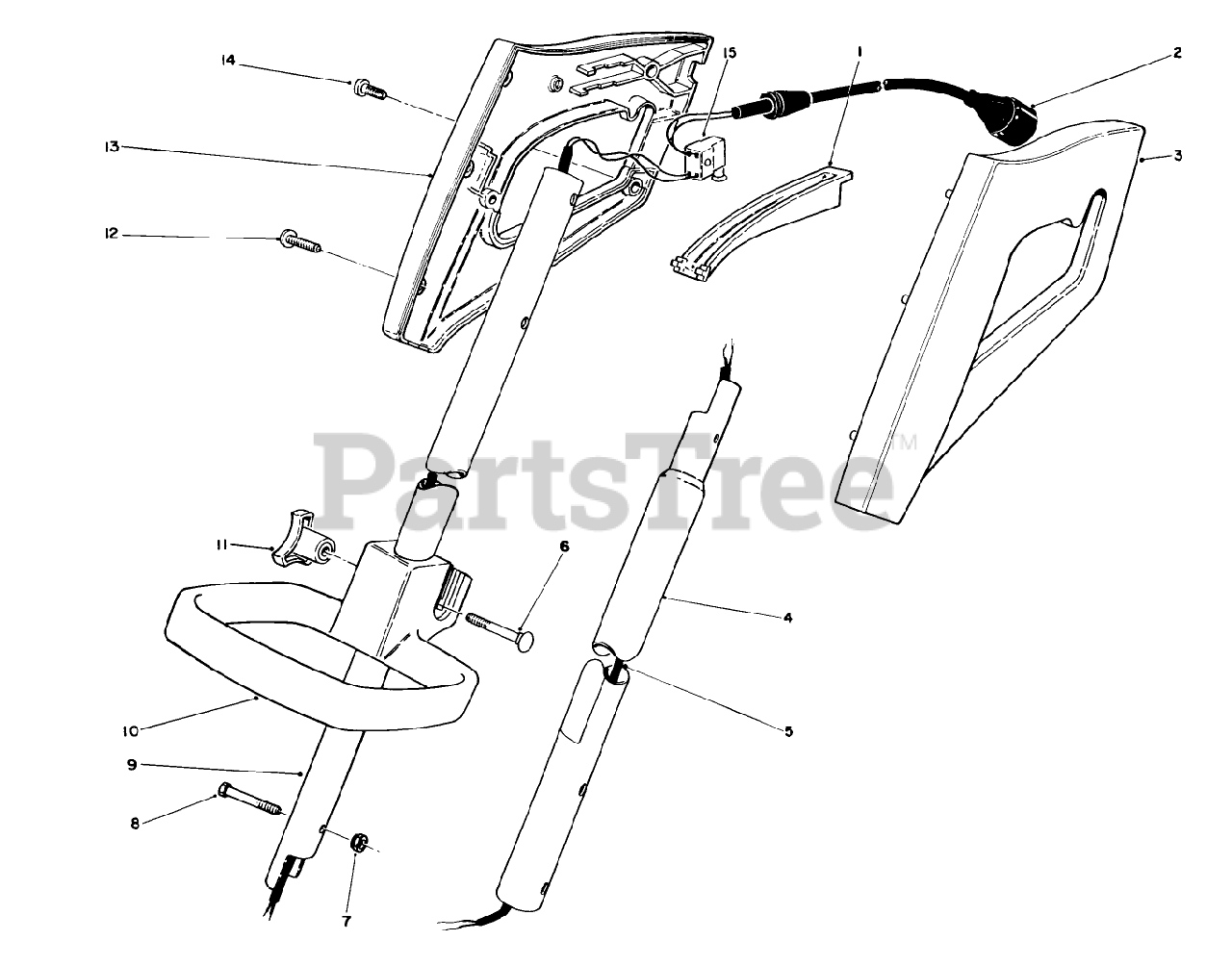

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 64-4541

TRIMMER-SWITCH BAR

$

$

Not available

2

Toro 42-0774

Cord-Power
(Superseded to 42-0776)

$

$

Not available

3

Toro 73-1121

HANDLE GRIP, LH

$

$

Not available

4

Toro 64-8490

1100 LOWER EXT. TUBE

$

$

Not available

5

Toro 62-1813

WIRING HARNESS

$

$

Not available

6

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

9

Toro 64-7110

TUBE-UPPER

$

$

Not available

10

Toro 61-8902

Handle-Adjust

$

$

Not available

11

Toro 73-4740

HANDLE KNOB

$9.99

$

Usually ships in 3-6 days

0

12

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

13

Toro 73-1111

HANDLE GRIP, RH

$

$

Not available

14

Toro 32104-118

SCREW-PPH

$

$

Not available

15

Toro 64-4930

SWITCH
(Superseded to 107-3323)

$19.99

$

In Stock, Qty 8

0

Toro 33-8742

Loose Parts (Incl. Ref. #6-8 & 11 page 1 #13 page 2)

$

$

Not available
