51324 - Toro 12" String Trimmer, Electric (SN: 089000001 - 089999999) (1998) MOTOR & HOUSING ASSEMBLY Parts Diagram

12" String Trimmer, Electric

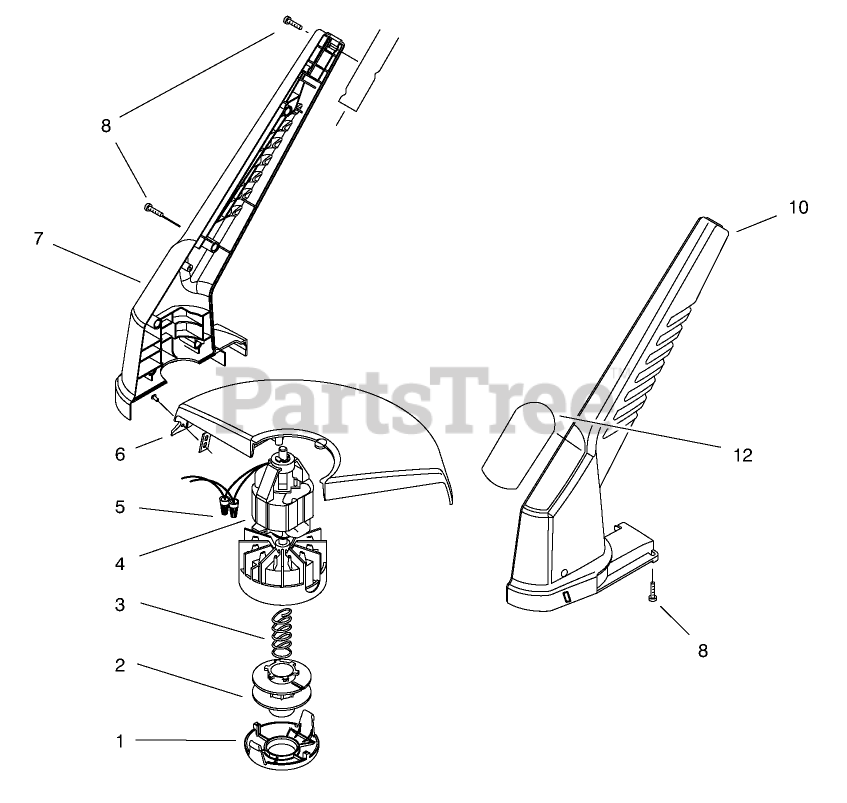

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

4

Toro 73-9051

ASM-MOTOR,DRUM

$

$

Not available

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 73-9091

SHIELD ASM

$

$

Not available

7

Toro 98-1841

HOUSING-RH

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 98-1842

HOUSING-LH

$

$

Not available

12

Toro 98-3549

DECAL, 12" TRIMMER/EDGER

$

$

Not available

Toro 88175

Spool & Line Assembly (Whole Goods)(Incl. Ref. #2 and 30 ft of .065 line)

Note: Not illustrated

$23.99

$

In Stock, only 1 left!

0
