51321 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

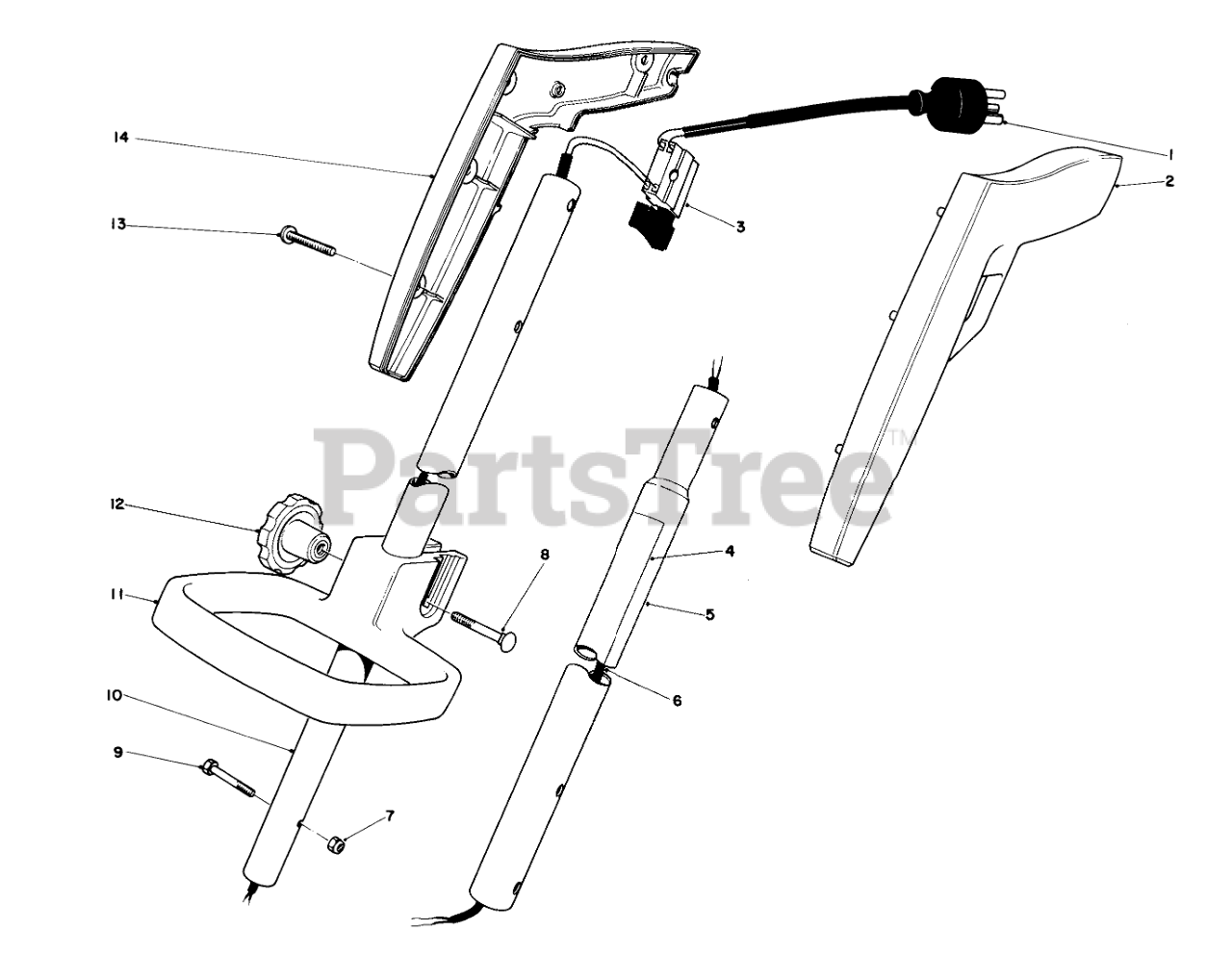

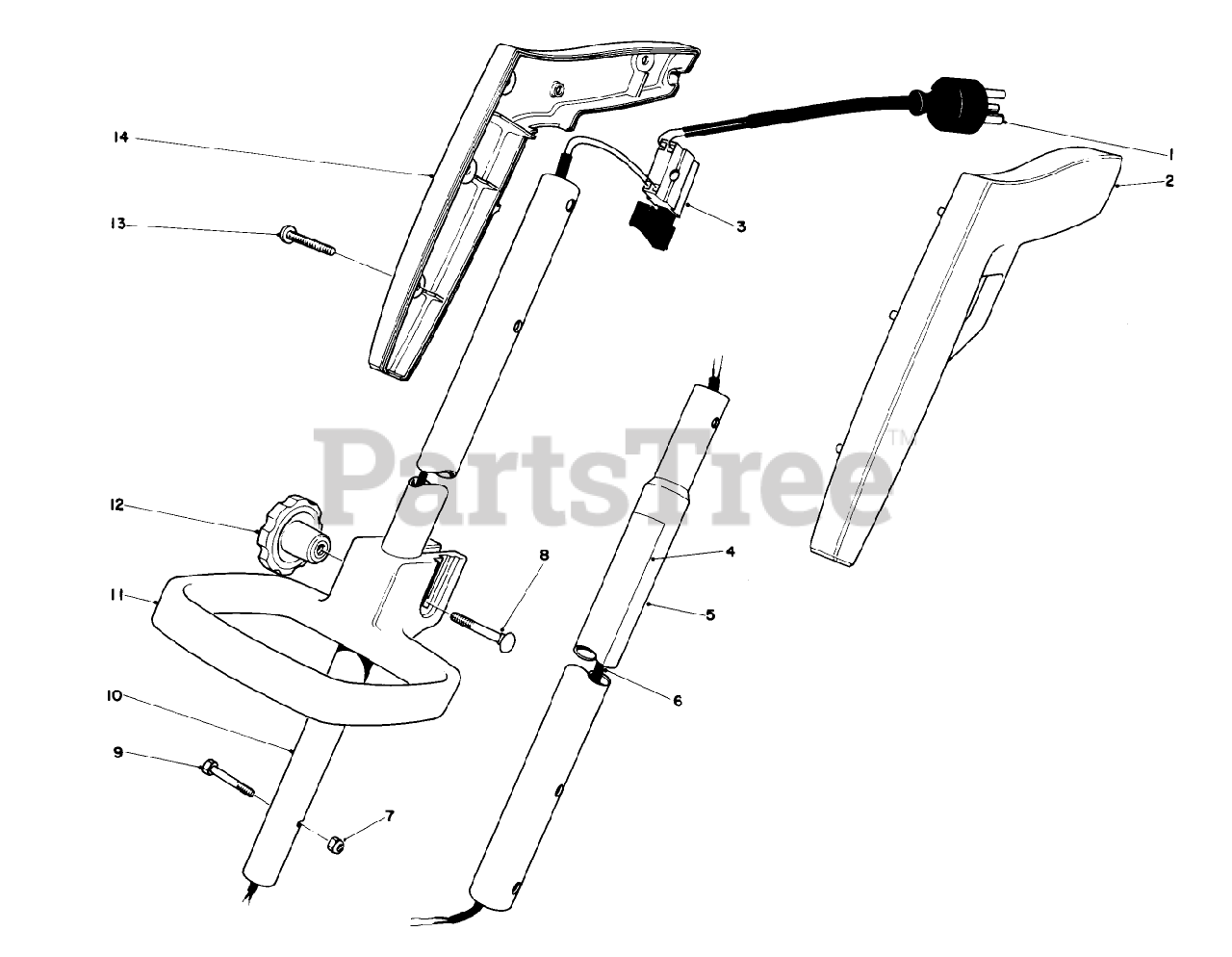

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-9380

Wiring Harness-Upper

$

$

Not available

2

Toro 33-8810

Grip L.H.

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$43.99

$

Usually ships in 3-6 days

0

4

Toro 34-9210

Caution Decal

$

$

Currently unavailable

5

Toro 33-8870

Tube-Lower

$

$

Not available

6

Toro 34-9060

Wiring Harness

$

$

Not available

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

9

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

10

Toro 33-8880

Tube-Upper

$

$

Not available

11

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

12

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

13

Toro 32144-59

Screw

$

$

Not available

14

Toro 33-8820

R.H. GRIP

$

$

Not available

Toro 33-8740

Loose Parts

Note: Not illustrated

$

$

Not available
