5132 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

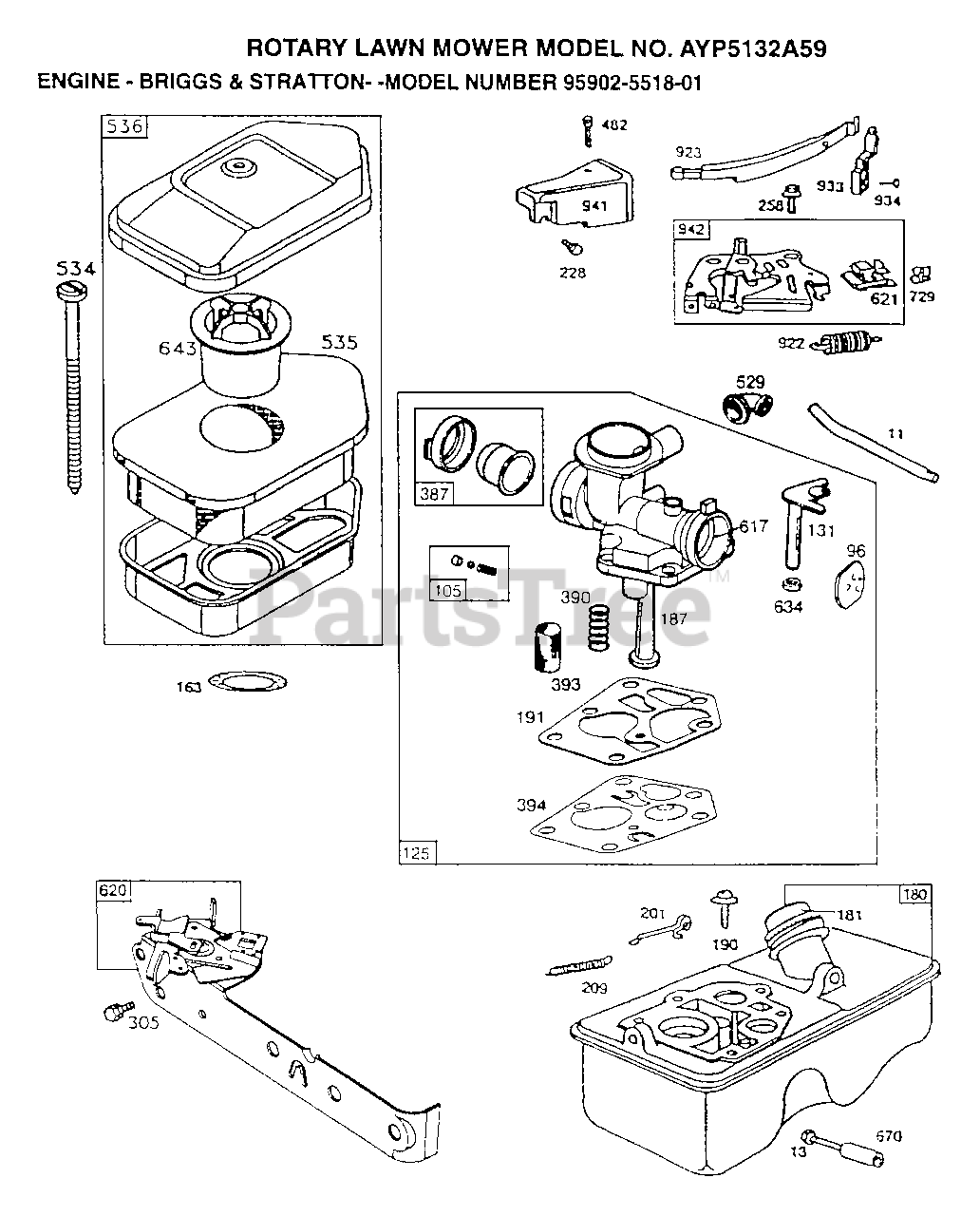

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title
11

Briggs & Stratton 231774

TUBE, BREATHER
(Superseded to 691245)

$8.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93111

SCREW, CYLINDER HEAD
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

96

Briggs & Stratton 224412

VALVE THROTTLE
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 494409

SEAT, NEEDLE VALVE

$

$

Not available

125

Briggs & Stratton 494407

CARBURETOR ASSEMBLY
(Superseded to 498809)

$52.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 281047

SHAFT AND LEVER, THROTTLE
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

GASKET, AIR CLEANER
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

TANK ASSEMBLY, FUEL

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 493982

CAP, FUEL TANK
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 493981

PIPE, FUEL
(Superseded to 496046S)

$8.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 93440

SCREW, FUEL TANK MOUNTING
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272372

GASKET, TANK MOUNTING
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

201

Briggs & Stratton 262753

LINK, GOVERNOR
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 262759

SPRING, GOVERNOR
(Superseded to 692211)

$5.99

$

In Stock, only 1 left!

0

228

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

258

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

305

Briggs & Stratton 94153

SCREW, SEMS, BLOWER HOUSING MNT.
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

387

Briggs & Stratton 494408

PRIMER BULB
(Superseded to 694394)

$4.49

$

In Stock, Qty 12

0

390

Briggs & Stratton 262764

SPRING, DIAPHRAGM
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

SCREEN, CARBURETOR
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 281028

DIAPHRAGM, CARBURETOR
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

534

Briggs & Stratton 93865

SCREW
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 272235

ELEMENT, AIR CLEANER
(Superseded to 272235S)

$5.99

$

In Stock, Qty 6

0

536

Briggs & Stratton 493492

CLEANER ASSEMBLY, AIR
(Superseded to 698472)

$

$

Not available

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 495486

PLATE, CARBURETOR CONTROL
(Superseded to 691446)

$39.99

$

In Stock, only 4 left!

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 281080

WASHER, THROTTLE SHAFT
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280972

CUP, AIR CLEANER
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94038

SPACER, FUEL TANK
(Superseded to 691631)

$5.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 280470

CLIP, WIRE
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

922

Briggs & Stratton 261647

SPRING, BAND BRAKE
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

BRAKE ASSEMBLY, BAND

$39.99

$

Usually ships in 2-12 days

0

933

Briggs & Stratton 223448

PIVOT, BAND BRAKE
(Superseded to 690428)

$5.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 94037

SCREW, BAND BRAKE PIVOT
(Superseded to 690324)

$3.49

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 280395

COVER, LINKAGE

$

$

Not available

942

Briggs & Stratton 493248

BRACKET ASSEMBLY, LEVER

$10.99

$

Usually ships in 2-12 days

0
