51318 C (1100) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

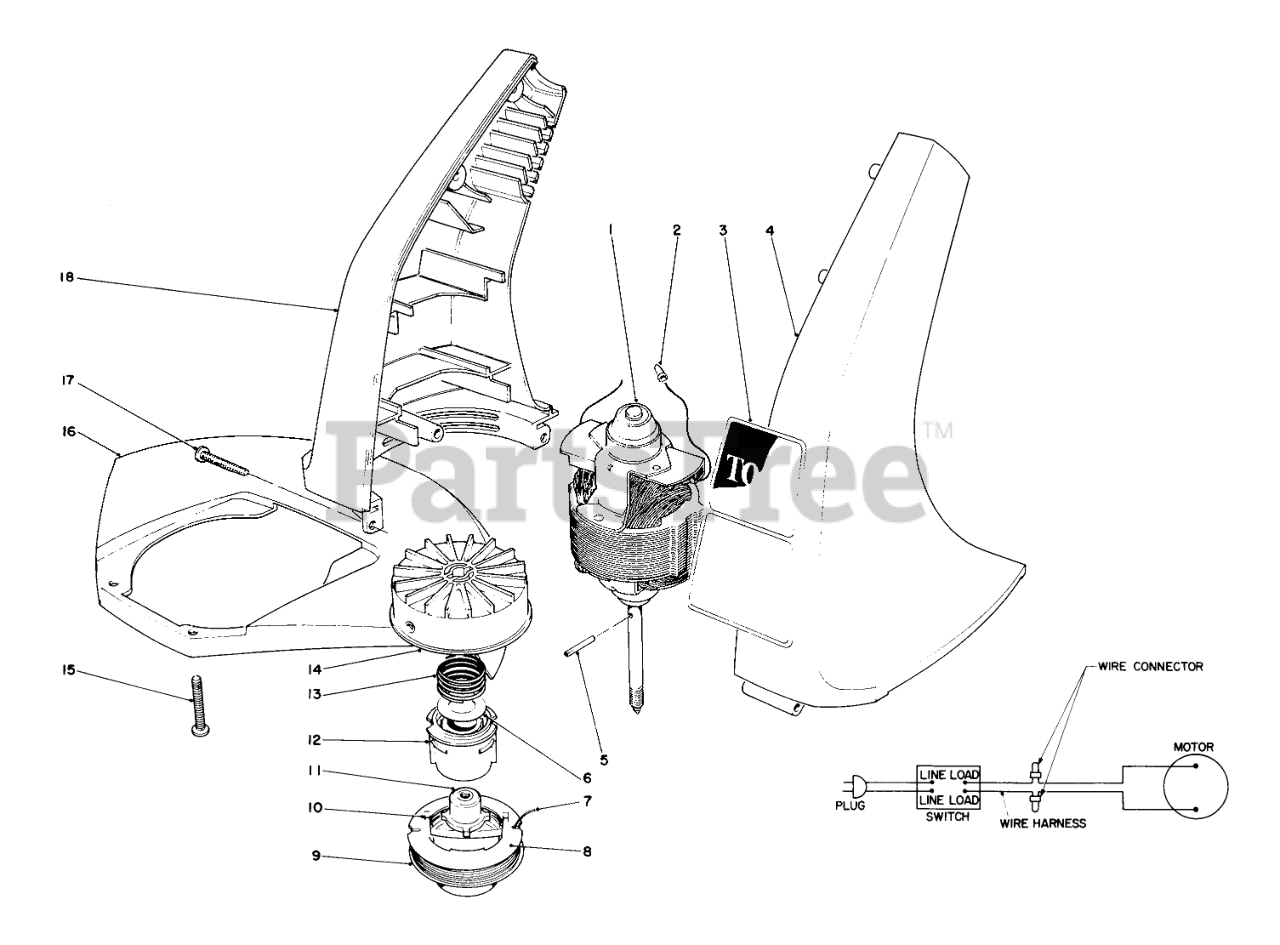

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 34-2790

Motor

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 34-2430

DECAL - 1100 CANADIAN

$

$

Not available

4

Toro 34-3660

Housing-Left Hand
(Superseded to 34-3661)

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

7

Toro 88303

50-, .065" Dia. Cutting Line In Coil

$

$

Currently unavailable

8

Toro 29-7383

Empty Spool
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

9

Toro 88305

50-, .065" Dia. Cutting Line Prewound On Spool

$

$

Currently unavailable

10

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

11

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

12

Toro 33-6230

SPOOL CORE

$

$

Not available

13

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

14

Toro 33-8970

DRUM W/EYELET

$

$

Not available

15

Toro 32104-118

SCREW-PPH

$

$

Not available

16

Toro 33-8831

Shield
(Superseded to 33-8832)

$

$

Not available

17

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

18

Toro 34-3650

R.H. HOUSING, 1100
(Superseded to 34-3651)

$

$

Not available

Toro 62-1821

Loose Parts

$

$

Not available
