51317 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

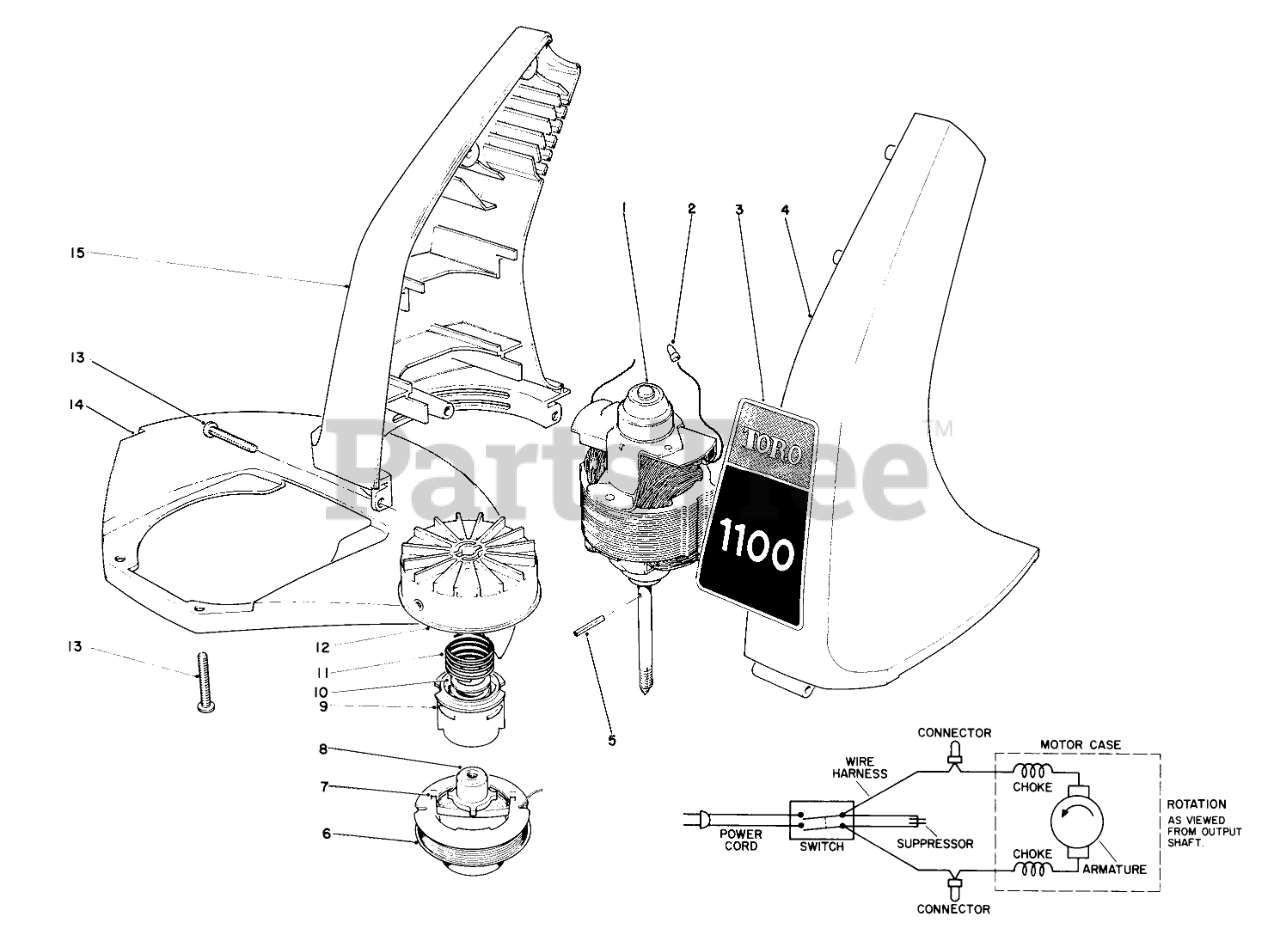

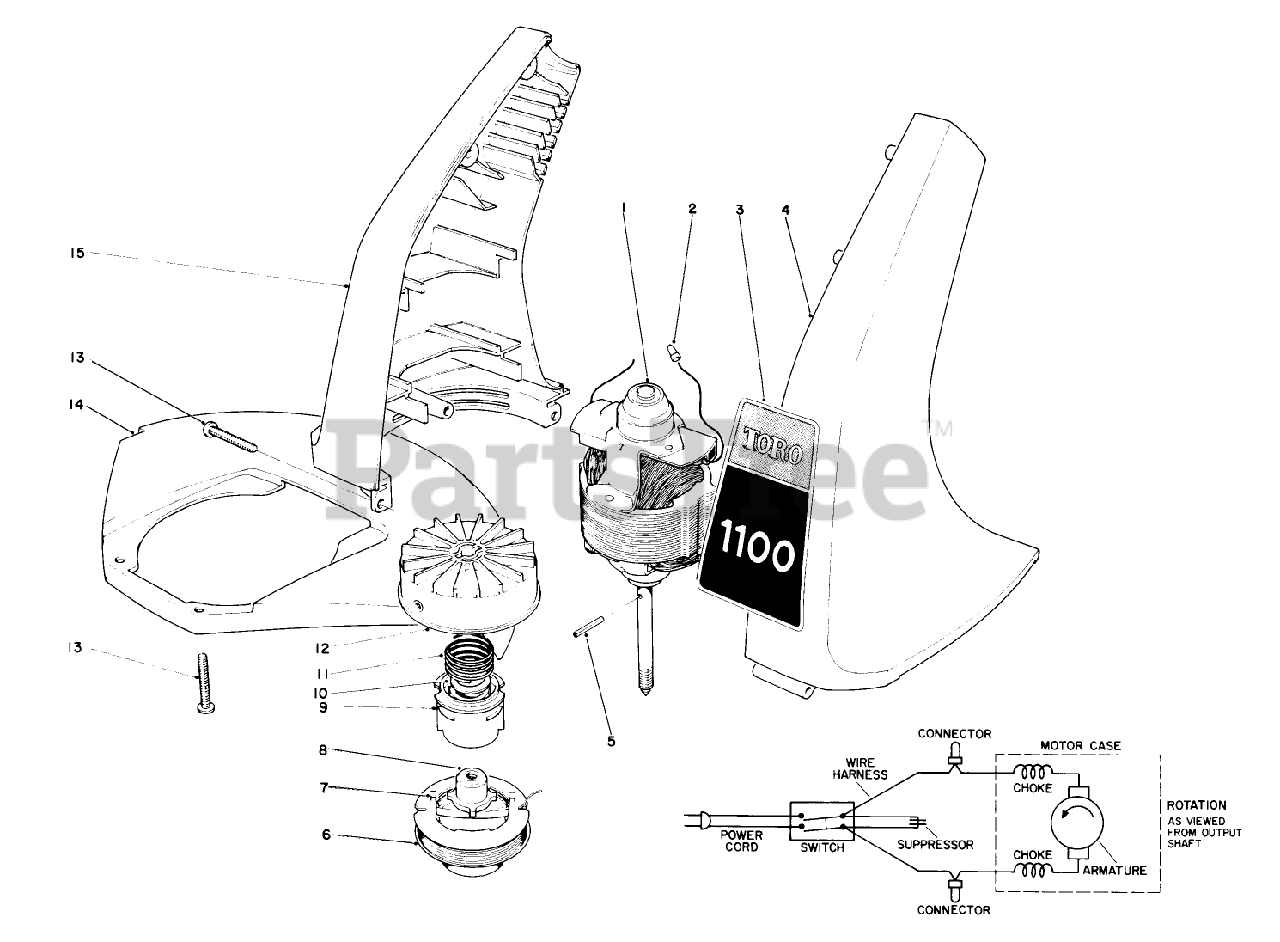

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 34-4680

Motor (220V)

$

$

Not available

2

Toro 21-8496

Wire Connectors

$

$

Currently unavailable

3

Toro 34-4760

1100 Decal

$

$

Not available

4

Toro 34-4840

Housing-Left Hand

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 33-7930

Prewound Spool
(Superseded to 88005)

$

$

Not available

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$10.99

$

In Stock, only 1 left!

0

Toro 33-791

50- Coil-.065" Cutting Line

$

$

Currently unavailable

7

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

8

Toro 29-7140

Driver
(Superseded to 42-6050)

$23.99

$

Usually ships in 3-6 days

0

9

Toro 33-6230

SPOOL CORE

$

$

Not available

10

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

11

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

12

Toro 33-8970

DRUM W/EYELET

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 34-4490

Shield

$

$

Not available

15

Toro 34-4830

HOUSING-RH-INT'L

$

$

Not available
