51316 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) MOTOR & HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

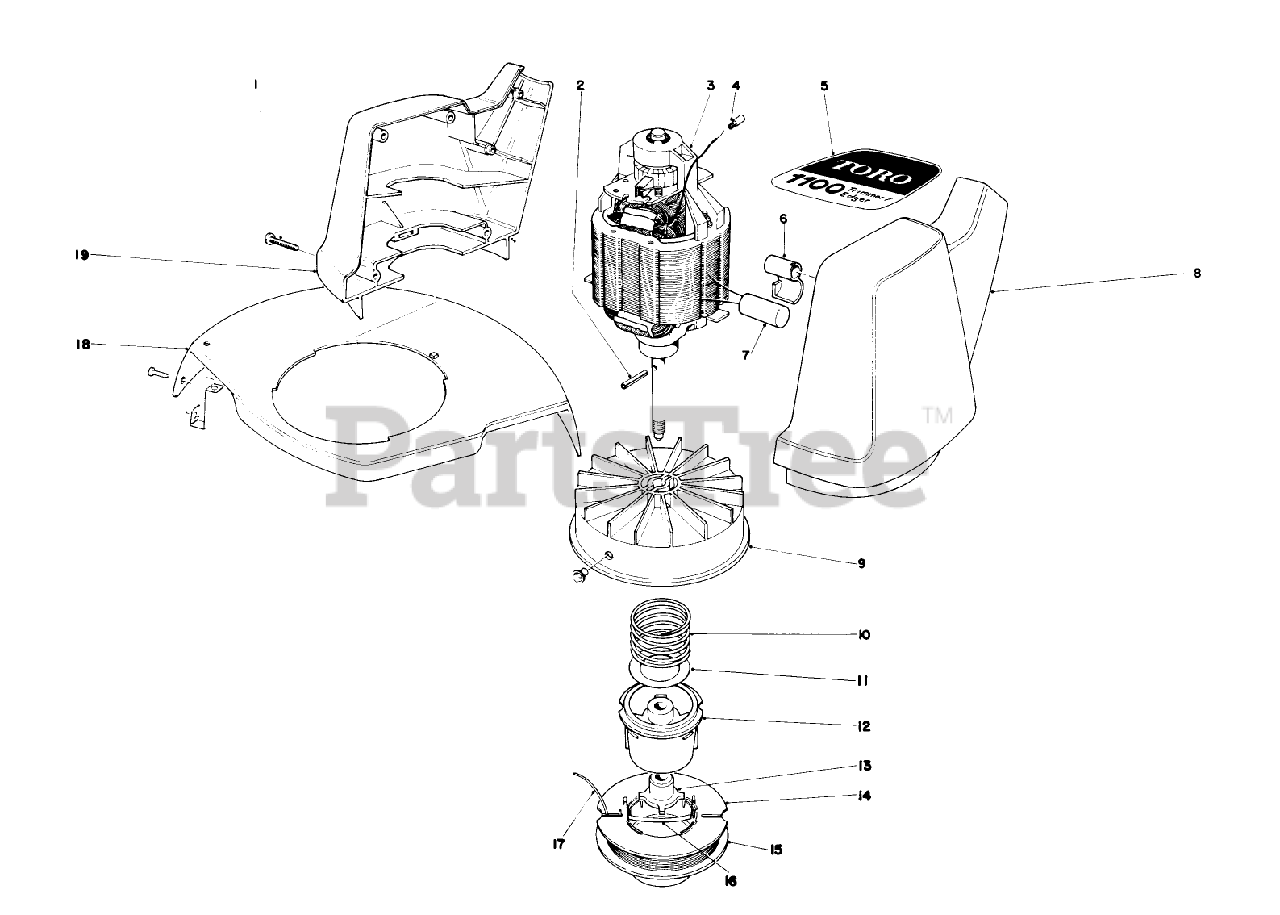

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

3

Toro 33-7780

Motor

$

$

Not available

4

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

5

Toro 33-8230

DECAL - TORO 1100

$

$

Not available

6

Toro 33-7840

Clamp-Suppressor

$

$

Not available

7

Suppressor

Note: Included with Wiring Harness 33-9850

$

$

Not available

8

Toro 29-7590

Left Motor Housing

$

$

Not available

9

Toro 33-8970

DRUM W/EYELET

$

$

Not available

10

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

11

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

12

Toro 33-6230

SPOOL CORE

$

$

Not available

13

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

14

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 1 left!

0

15

Toro 33-7930

Prewound Spool
(Superseded to 88005)

$19.99

$

Usually ships in 3-6 days

0

16

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

17

Toro 33-7910

50-Coil.065" Cutting Line
(Superseded to 88003)

$

$

Not available

18

Toro 29-7370

Shield with Cut Off Blade

$

$

Not available

19

Toro 29-7600

Right Motor Housing

$

$

Not available
