51315 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) MOTOR & HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

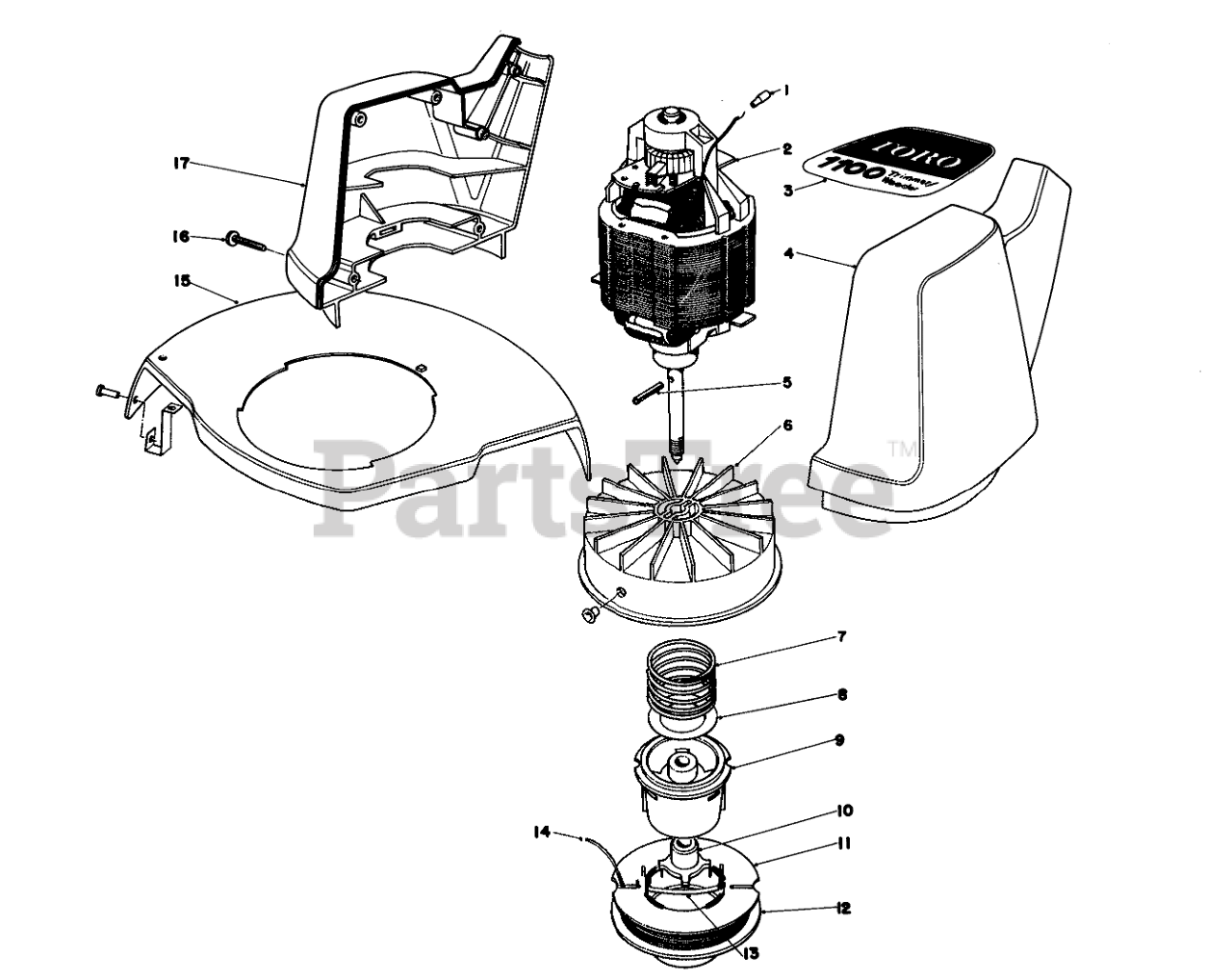

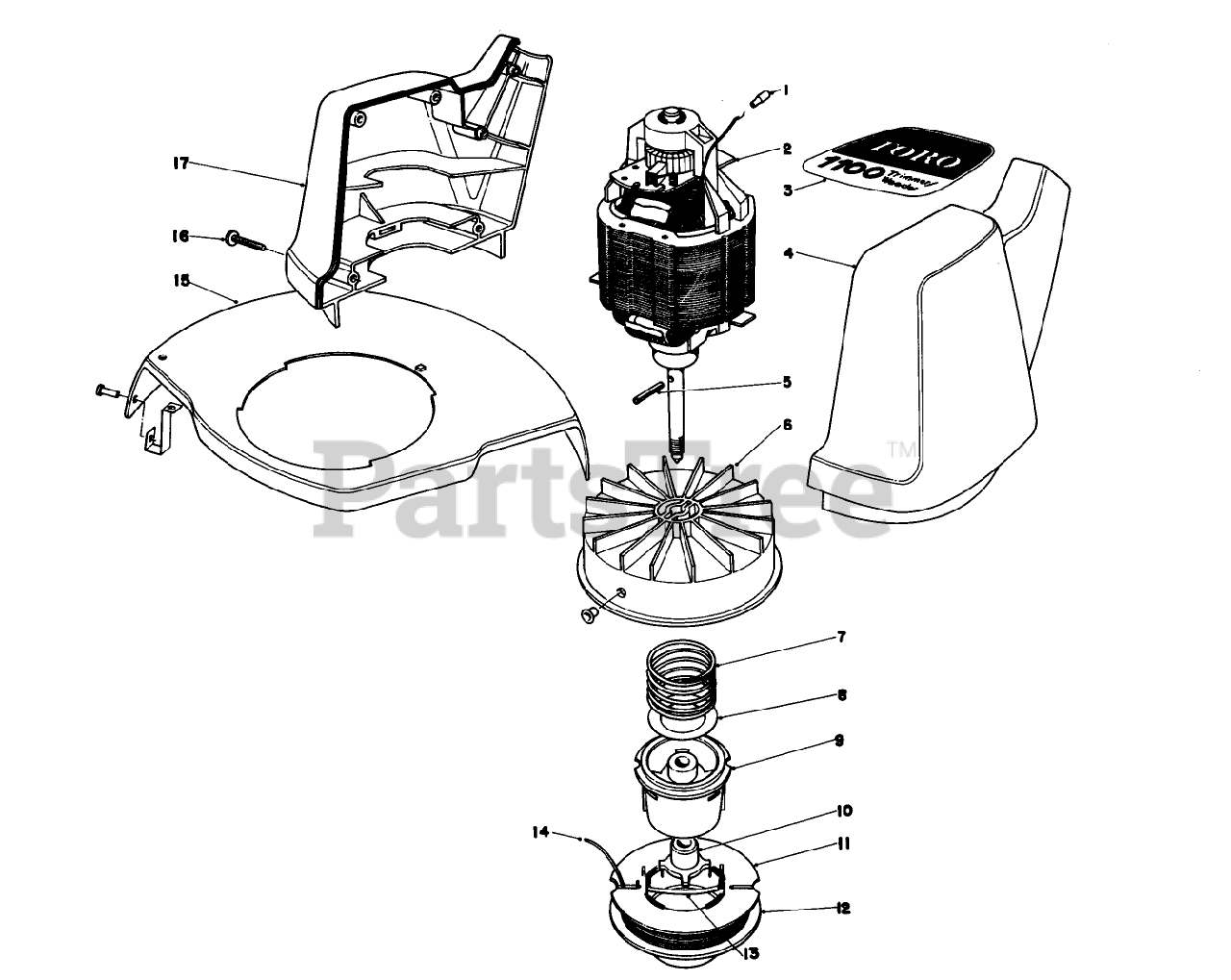

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 33-9280

Motor

$

$

Currently unavailable

3

Toro 33-5860

Toro 1100 Decal

$

$

Not available

4

Toro 29-7590

Left Motor Housing

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 33-8970

DRUM W/EYELET

$

$

Not available

7

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

8

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

9

Toro 33-6230

SPOOL CORE

$

$

Not available

10

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

11

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

12

Toro 88005

Cutting Line (50 .065" Dia.)

$19.99

$

Usually ships in 3-6 days

0

13

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

14

Toro 88003

LINE-FILIMENT

$

$

Not available

15

Toro 29-7370

Shield with Cut Off Blade

$

$

Not available

16

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 29-7600

Right Motor Housing

$

$

Not available
