51307 - Toro 13" String Trimmer, Electric (SN: 200000001 - 200999999) (2000) MOTOR & HOUSING ASSEMBLY Parts Diagram

13" String Trimmer, Electric

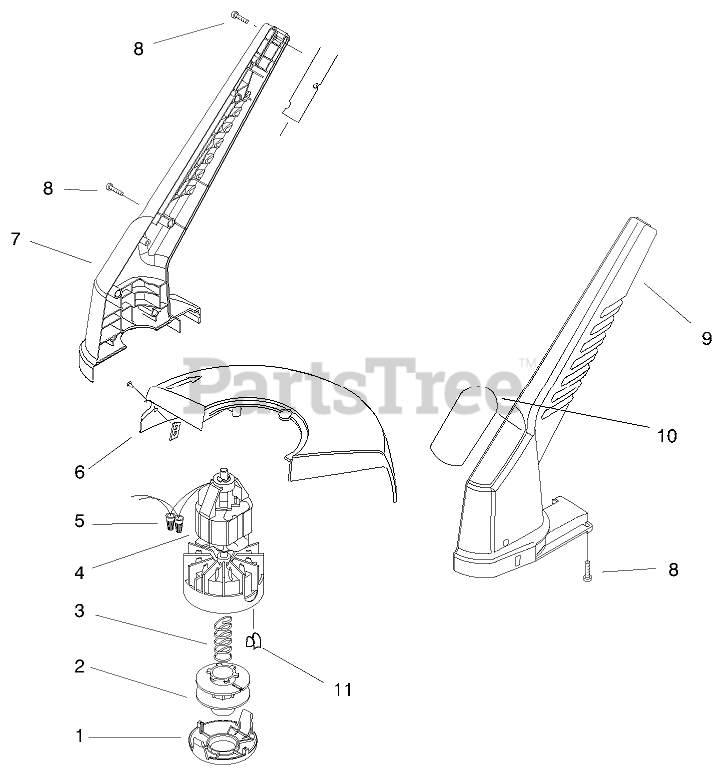

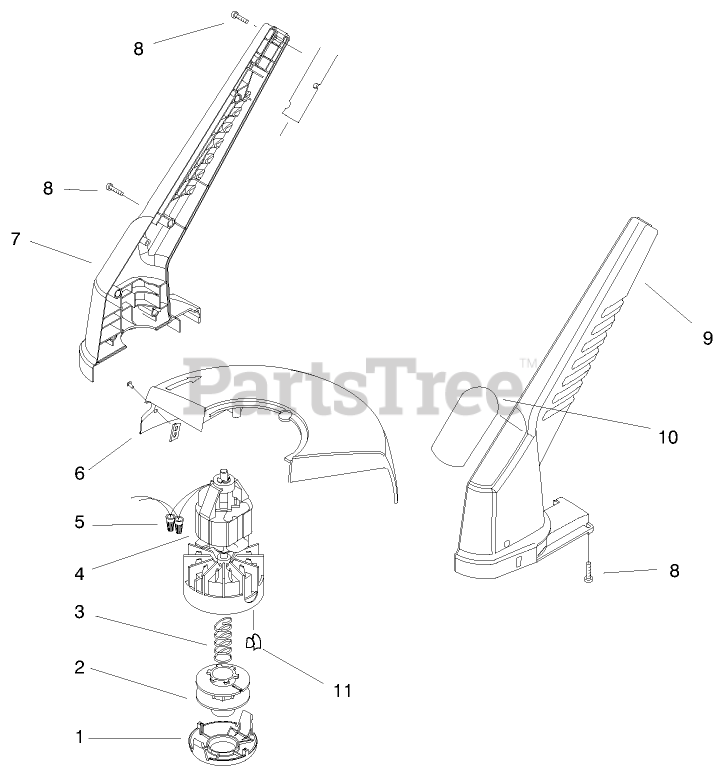

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 73-8200

CAP

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

4

Toro 73-9052

Motor Assembly (Includes Ref. #11)

$213.99

$

Usually ships in 3-6 days

0

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 73-9092

SHIELD ASM - SERVICE

$

$

Not available

7

Toro 98-1841

HOUSING-RH

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-1842

HOUSING-LH

$

$

Not available

10

Toro 98-3306

DECAL, 13" TRIMMER/EDGER

$4.49

$

Usually ships in 3-6 days

0

11

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

Toro 88175

Spool & Line Assembly (Incl. Ref. #2 and 30 ft. of .065 line)

Note: Not illustrated

$23.99

$

In Stock, only 1 left!

0

Toro 88026

Spring and Spool Cap (Incl. Ref. #1 and 3)

$

$

Not available
