51303 - Toro 15" String Trimmer, Electric (SN: 099000001 - 099999999) (1999) MOTOR & HOUSING ASSEMBLY Parts Diagram

15" String Trimmer, Electric

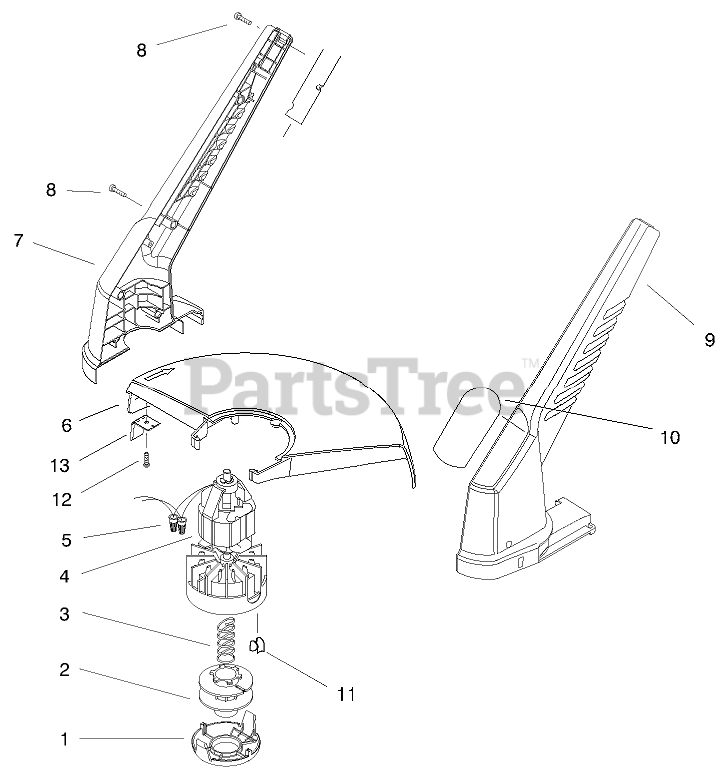

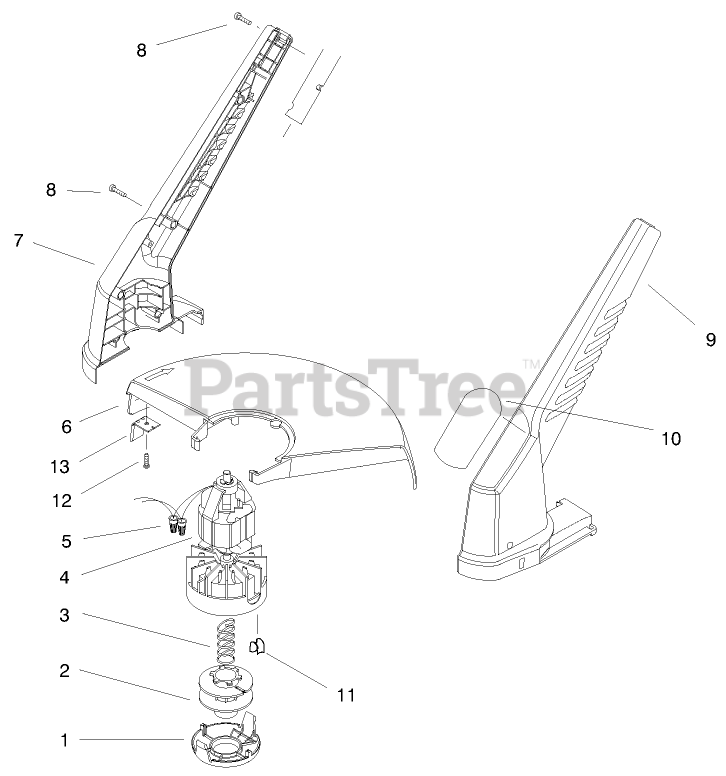

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 73-8200

CAP

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

4

Toro 73-9052

Motor Assembly (Incl. Ref. #11)

$213.99

$

Usually ships in 3-6 days

0

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 98-9274

Shield Asm.-15" (Incl. Ref. #12 and 13)

$

$

Not available

7

Toro 98-1841

HOUSING-RH

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-1842

HOUSING-LH

$

$

Not available

10

Toro 98-3307

DECAL, 15" TRIMMER/EDGER

$

$

Not available

11

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

12

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

13

Toro 98-1848

BLADE-CUTOFF

$

$

Not available

Toro 88175

Spool & Line Assembly (Whole Goods)(Incl. Ref. #2 and 30 ft. or .065in. line)

Note: Not illustrated

$23.99

$

In Stock, only 1 left!

0
