51300 (1100) - Toro String Trimmer, Electric (SN: 008000600 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

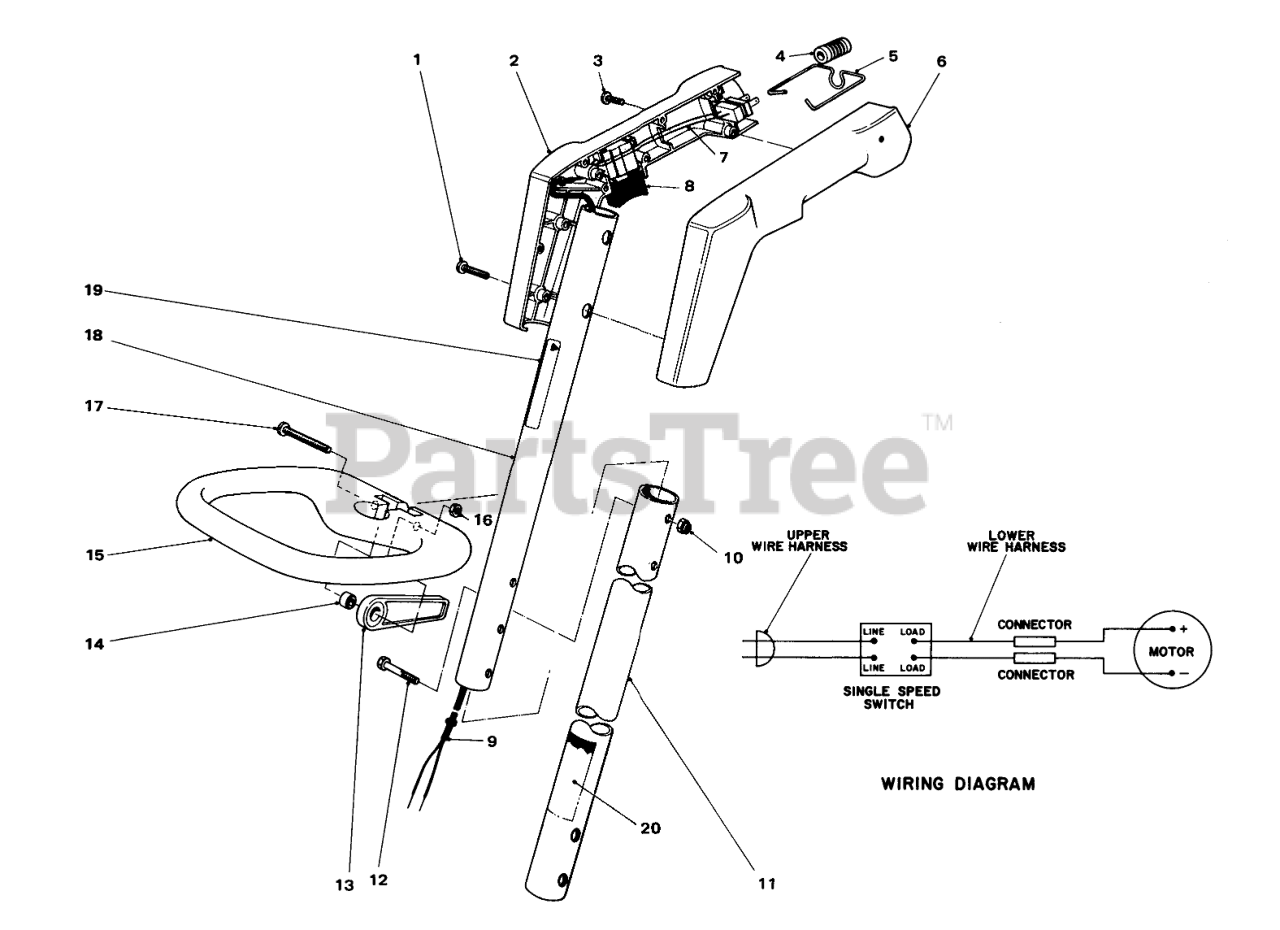

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-119

Screw

$

$

Not available

2

Toro 29-7250

Right Hand Grip

$

$

Not available

3

Toro 32104-118

SCREW-PPH

$

$

Not available

4

Toro 29-7280

RETAINER EXT. LORD

$

$

Not available

5

Toro 29-7270

Extension Cord Wire Clamp

$

$

Not available

6

Toro 29-7260

Left Hand Grip

$

$

Not available

7

Toro 29-7220

WIRING HARNESS UPPER

$

$

Not available

8

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

9

Toro 29-7650

WIRING HARNESS STD

$

$

Not available

10

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

11

Toro 33-6140

Lower Tubing

$

$

Not available

12

Toro 29-7440

Screw

$

$

Not available

13

Toro 29-7680

Cam Lock

$

$

Not available

14

Toro 29-7690

Spacer

$

$

Not available

15

Toro 29-7670

HANDLE ADJUSTABLE

$

$

Not available

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

Toro 3250-11

Screw

$

$

Not available

18

Toro 33-6130

Upper Tubing

$

$

Not available

19

Toro 29-7400

Caution Decal

$

$

Not available

20

Toro 25-9150

REPLACEMNT SERIAL PLT

$19.99

$

Usually ships in 3-6 days

0
