51300 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

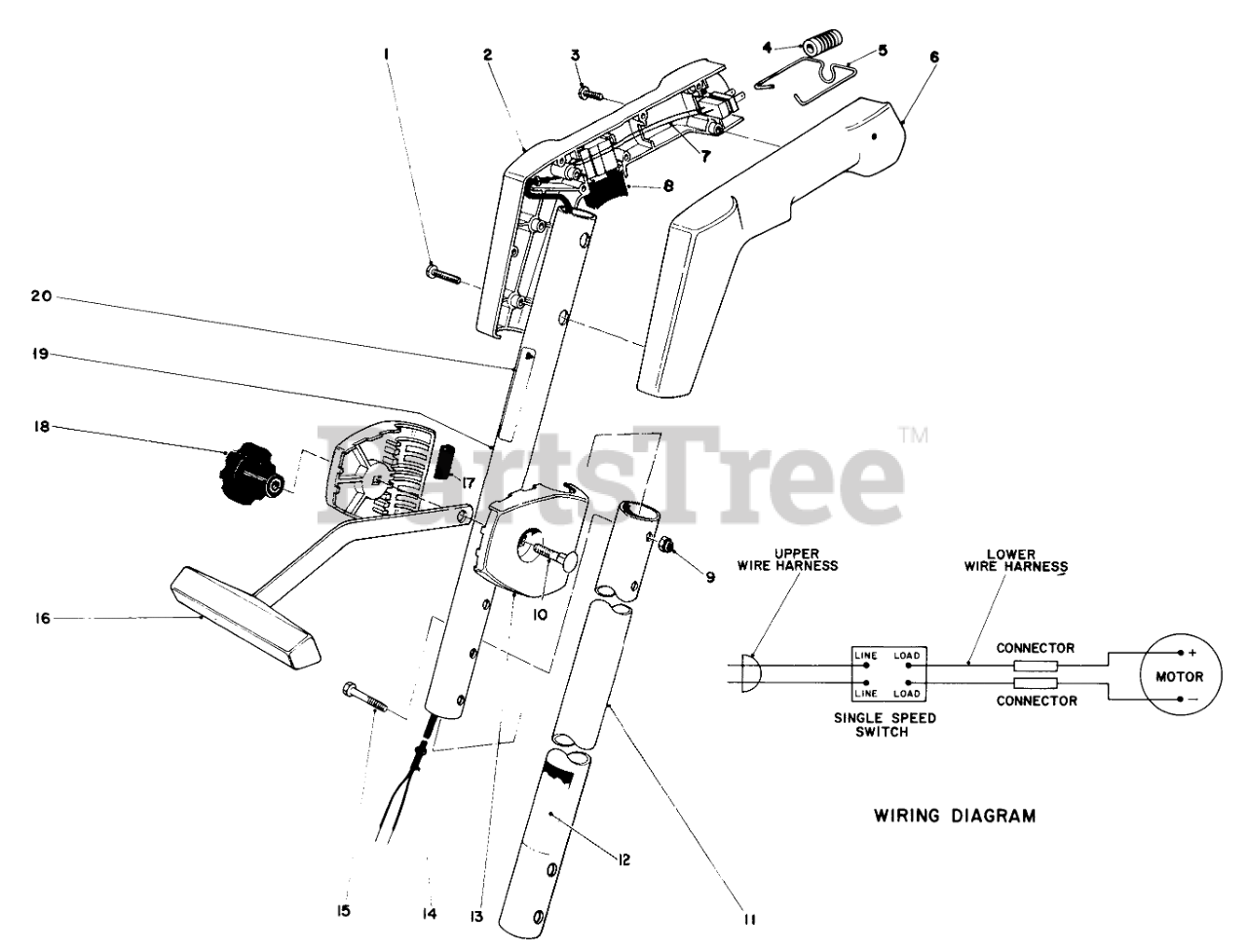

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-119

Screw

$

$

Not available

2

Toro 29-7250

Right Hand Grip

$

$

Not available

3

Toro 32104-118

SCREW-PPH

$

$

Not available

4

Toro 29-7280

RETAINER EXT. LORD

$

$

Not available

5

Toro 29-7270

Extension Cord Wire Clamp

$

$

Not available

6

Toro 29-7260

Left Hand Grip

$

$

Not available

7

Toro 29-7220

WIRING HARNESS UPPER

$

$

Not available

8

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

9

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

10

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

11

Toro 33-6140

Lower Tubing

$

$

Not available

12

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

13

Toro 29-7340

T-HANDLE BRKT(RED)

$

$

Not available

14

Toro 29-7650

WIRING HARNESS STD

$

$

Not available

15

Toro 29-7440

Screw

$

$

Not available

16

Toro 29-7320

Tee Handle

$

$

Not available

17

Toro 29-7470

RUBBER INSERT

$

$

Not available

18

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

19

Toro 33-6130

Upper Tubing

$

$

Not available

20

Toro 29-7400

Caution Decal

$

$

Not available
