51256 - Toro 10" String Trimmer, Electric (SN: 079000001 - 079999999) (1997) MOTOR & HOUSING ASSEMBLY Parts Diagram

10" String Trimmer, Electric

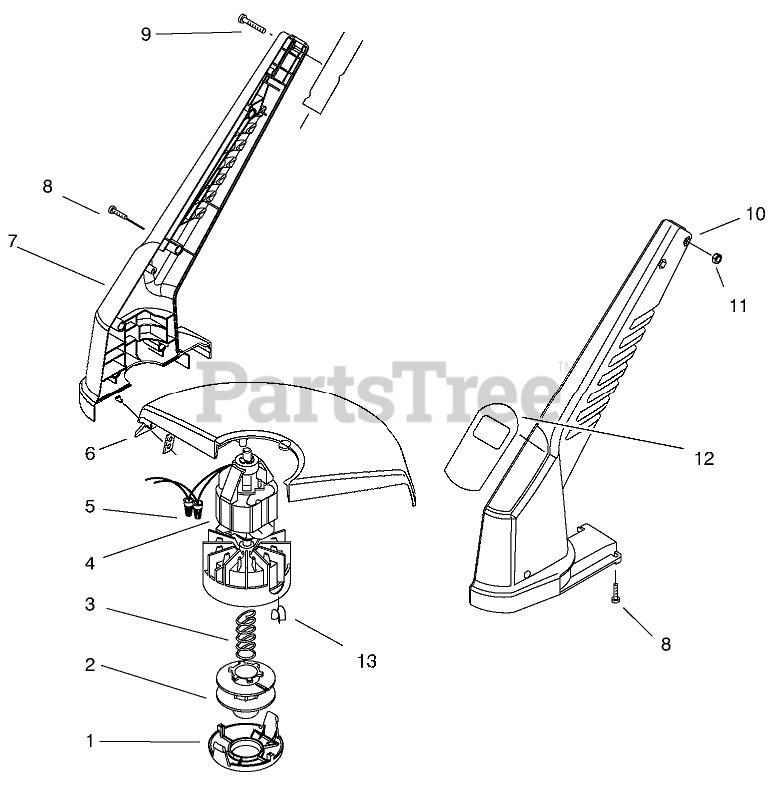

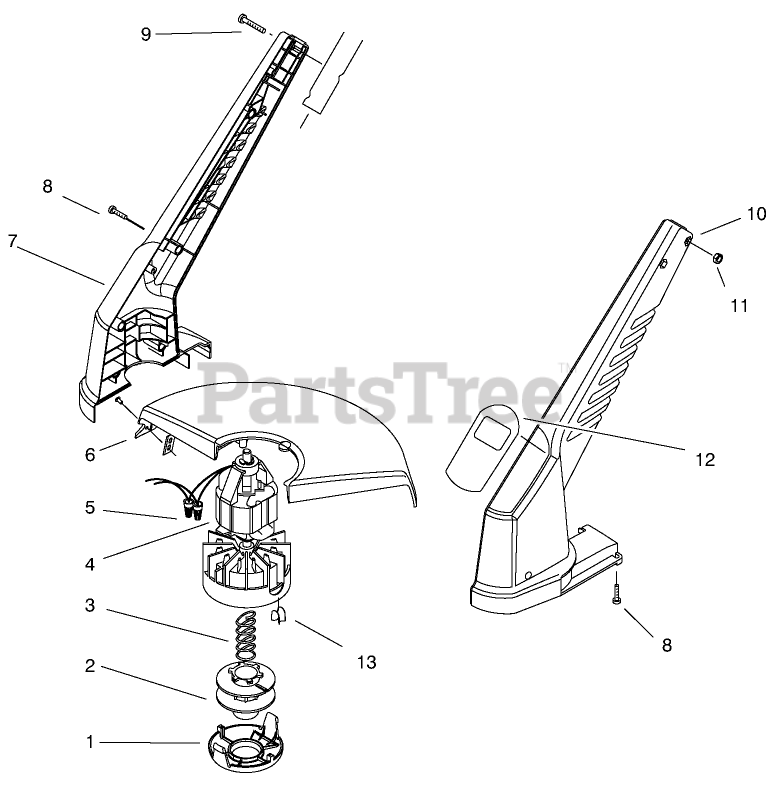

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 73-8200

CAP

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

4

Toro 73-9051

Motor Assembly (Incl. Ref. #13)

$

$

Not available

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 73-9090

SHIELD ASM - SERVICE

$

$

Not available

7

Toro 73-8130

RH HOUSING

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3250-52

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 73-8140

LH HOUSING

$

$

Not available

11

Toro 3217-44

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

12

Toro 73-8470

DECAL - 10" TRIMMER

$

$

Not available

13

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

Toro 88175

.065 SPOOL ASM

Note: Not illustrated

$23.99

$

In Stock, only 2 left!

0
