51255 (1000) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1989) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

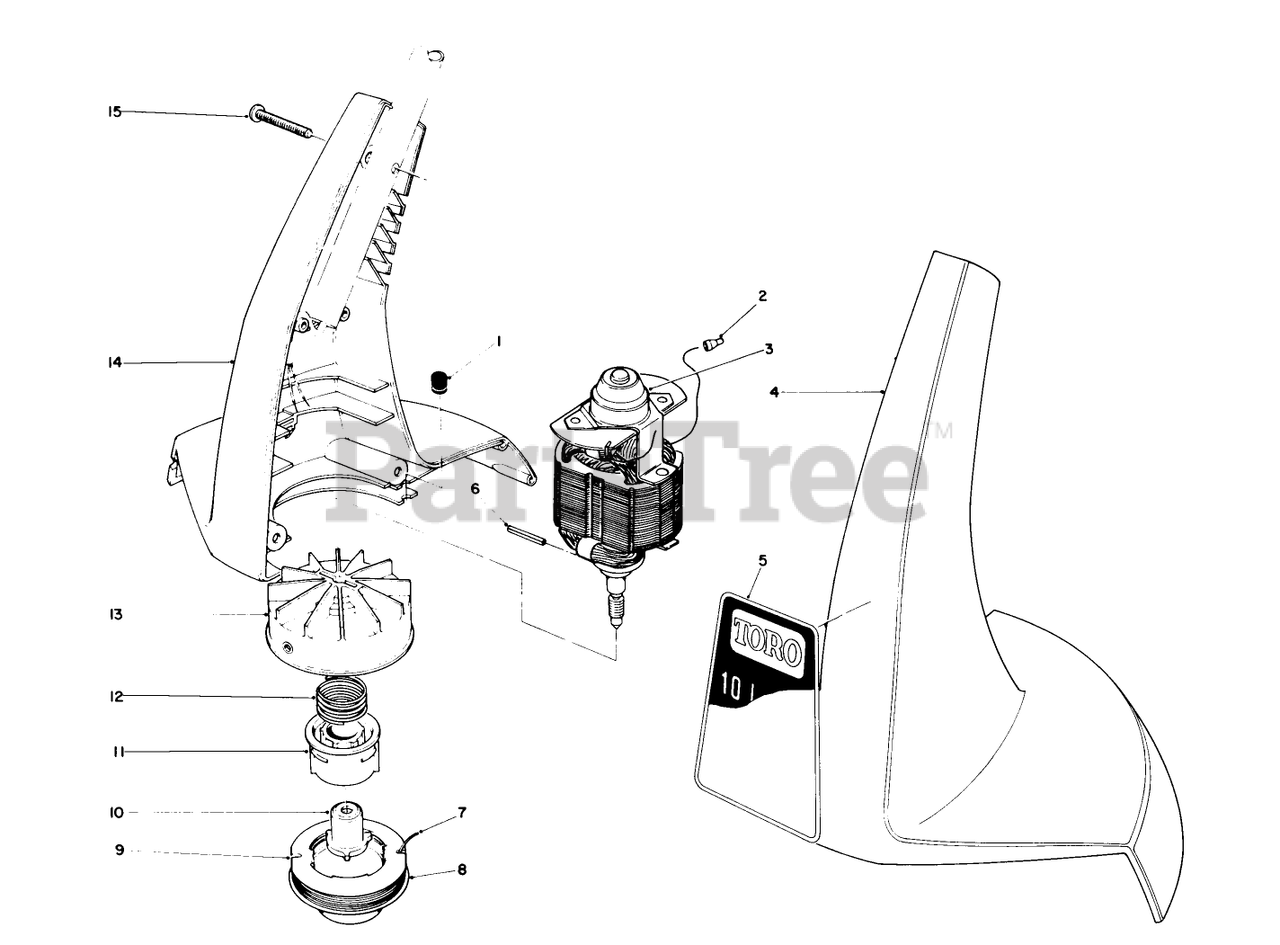

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 33-8710

GROMMET

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 34-2580

Motor

$

$

Not available

4

Toro 73-1231

Housing-L.H.

$

$

Not available

5

Toro 73-1180

DECAL, 10" TRIMMER

$

$

Not available

6

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

7

Toro 88011

Line-Cutting (30- .05 Dia.)

$

$

Not available

8

Toro 44-5520

SPOOL CAP

$20.99

$

In Stock, Qty 6

0

9

Toro 88015

Prewound Spool Cap

$12.99

$

Usually ships in 3-6 days

0

10

Toro 34-9100

DRIVER DETENT

$21.99

$

In Stock, only 3 left!

0

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-8680

FAN HUB ASM

$

$

Not available

14

Toro 34-5733

Housing Assembly-R.H.(Incl. Ref. #16 & 17)

$

$

Not available

15

32104

Capscrew

$

$

Not available

16

Rivet

$

$

Not available

17

Blade-Knife

$

$

Not available
