51255 (1000) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

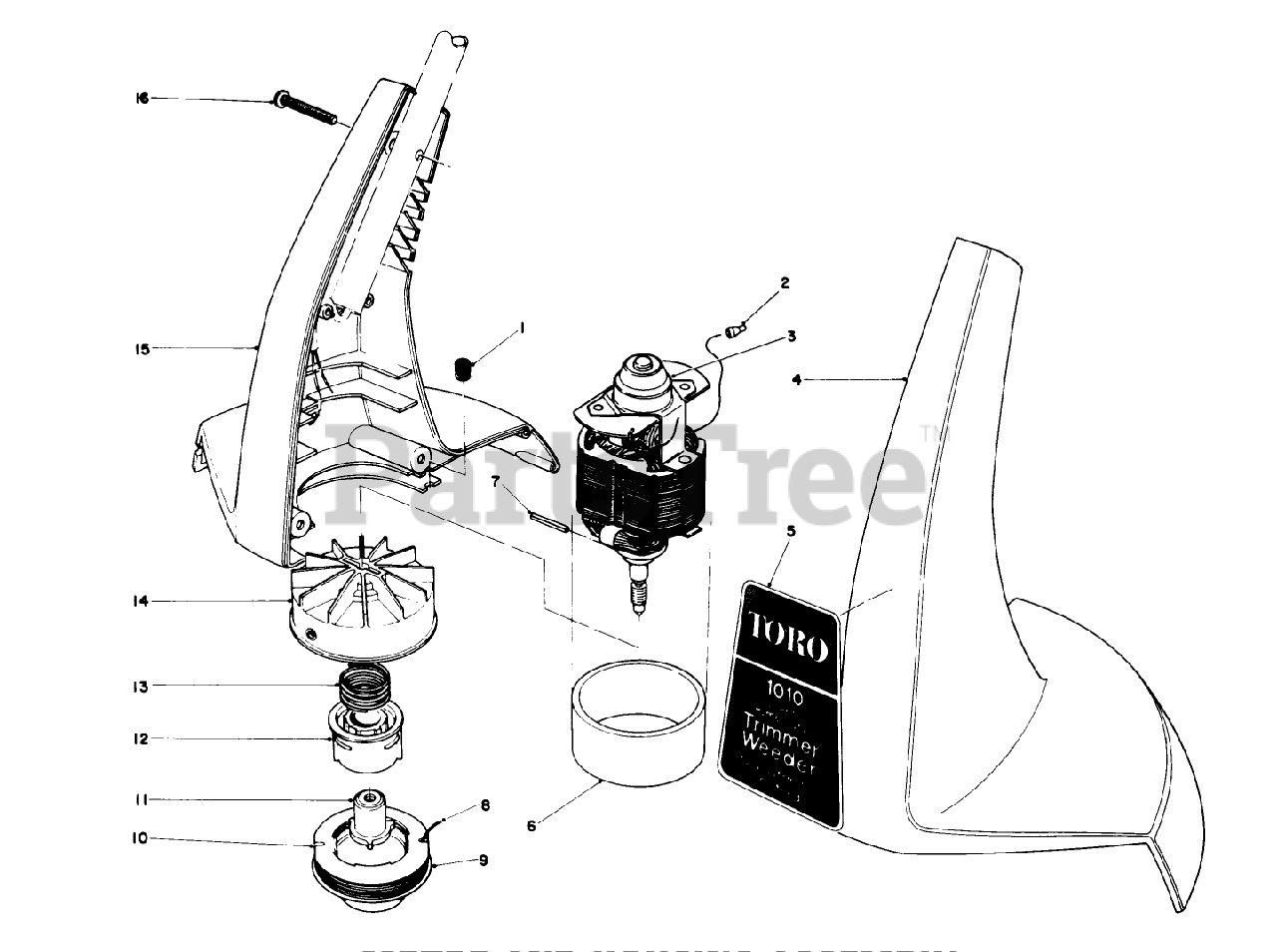

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 33-8710

GROMMET

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 34-2580

Motor

$

$

Not available

4

Toro 34-4390

Housing-L.H.

$

$

Not available

5

Toro 34-5740

Decal-Housing
(Superseded to 73-1180)

$

$

Not available

6

Toro 34-4290

DAMPENING SLEEVE

$

$

Not available

7

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

8

Toro 88011

Line-Cutting (30- .05 Dia.)

$

$

Not available

9

Toro 44-5520

SPOOL CAP

$18.99

$

In Stock, Qty 6

0

10

Toro 88015

Prewound Spool Cap

$

$

Not available

11

Toro 34-9100

DRIVER DETENT

$18.99

$

In Stock, only 3 left!

0

12

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

13

Toro 29-8230

SPRING-COMPRESSION

$8.99

$

In Stock, only 2 left!

0

14

Toro 33-8680

FAN HUB ASM

$

$

Not available

15

Toro 34-5731

Housing Assembly-R.H.

$

$

Not available

16

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

Toro 34-2692

Loose Parts

$

$

Not available
