51255 (1000) - Toro String Trimmer, Electric (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

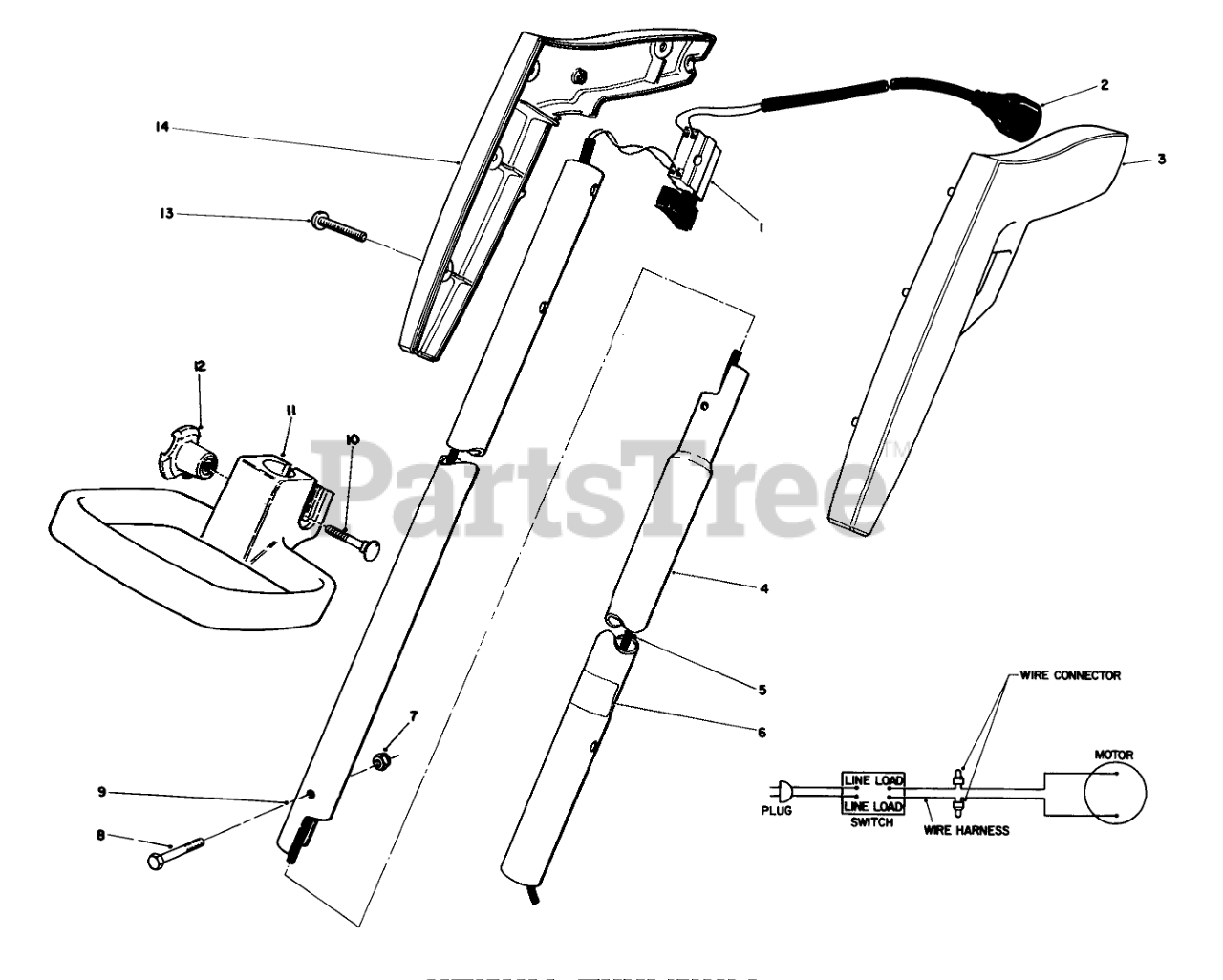

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

2

Toro 46-8850

Cord-Power
(Superseded to 46-8851)

$

$

Not available

3

Toro 33-8810

Grip L.H.

$

$

Not available

4

Toro 62-1860

Tubing-Lower Extension

$

$

Not available

5

Toro 62-1812

WIRE HARNESS

$

$

Not available

6

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

9

Toro 62-1800

UPPER EXT TUBING

$

$

Not available

10

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

11

Toro 61-8900

Handle
(Superseded to 61-8902)

$

$

Not available

12

Toro 62-1920

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 33-8820

R.H. GRIP

$

$

Not available
