51255 (1000) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

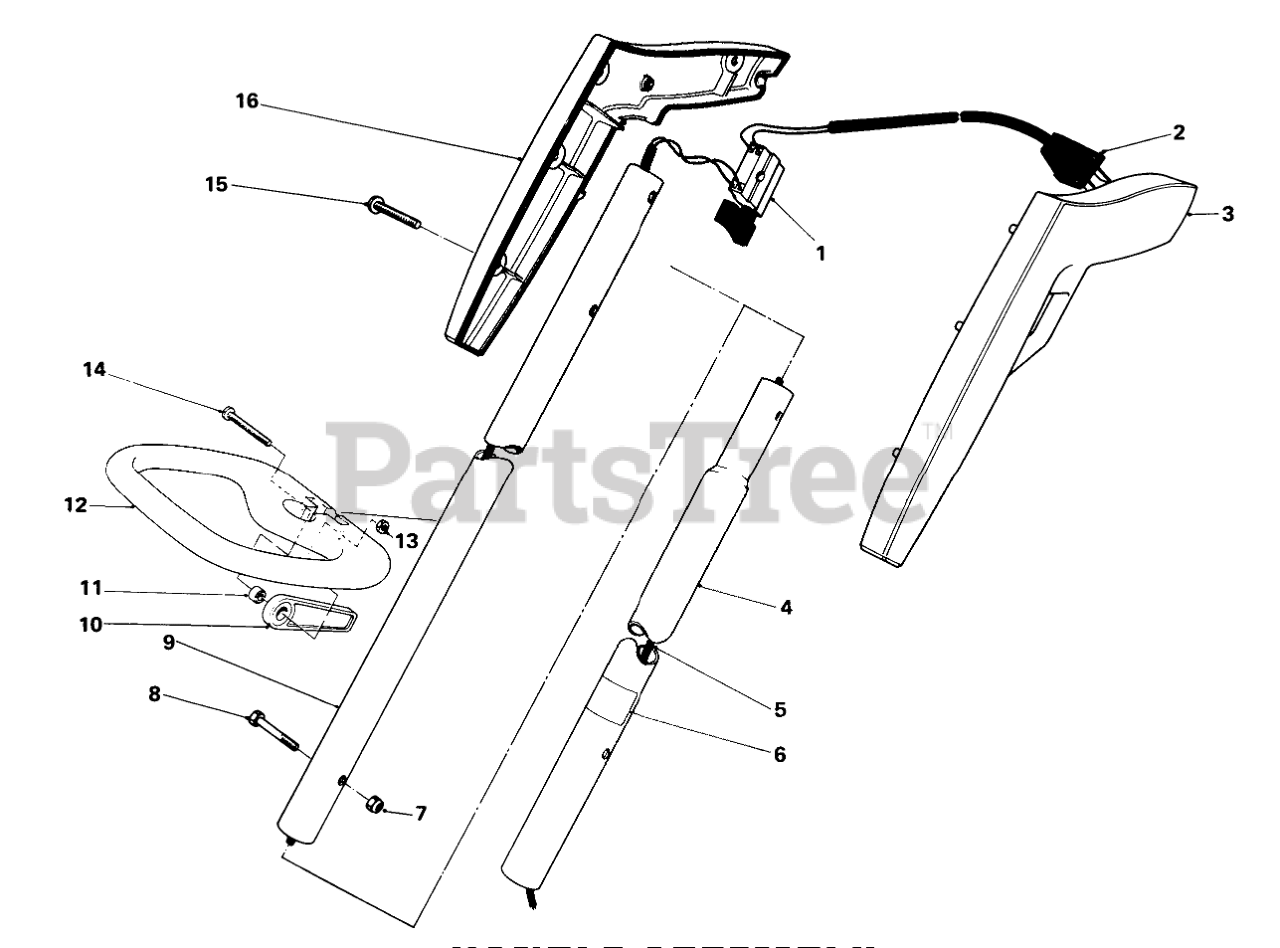

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-7660

SWITCH SINGLE SPEED

$51.99

$

Usually ships in 3-6 days

0

2

Toro 33-8570

Power Cord
(Superseded to 46-8851)

$

$

Not available

3

Toro 33-8810

Grip L.H.

$

$

Not available

4

Toro 34-5710

Tubing-Lower Extension

$

$

Not available

5

Toro 34-2570

Wire Harness

$

$

Not available

6

Toro 34-3550

Decal-Serial

$

$

Currently unavailable

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

9

Toro 344190

Tubing-Upper Extension

$

$

Currently unavailable

10

Toro 29-7680

Cam Lock

$

$

Not available

11

Toro 29-7690

Spacer

$

$

Not available

12

Toro 34-2600

Support Handle
(Superseded to 61-8902)

$

$

Not available

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 3250-11

Screw

$

$

Not available

15

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

16

Toro 33-8820

R.H. GRIP

$

$

Not available
