51255 (1000) - Lawn-Boy String Trimmer, Electric (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

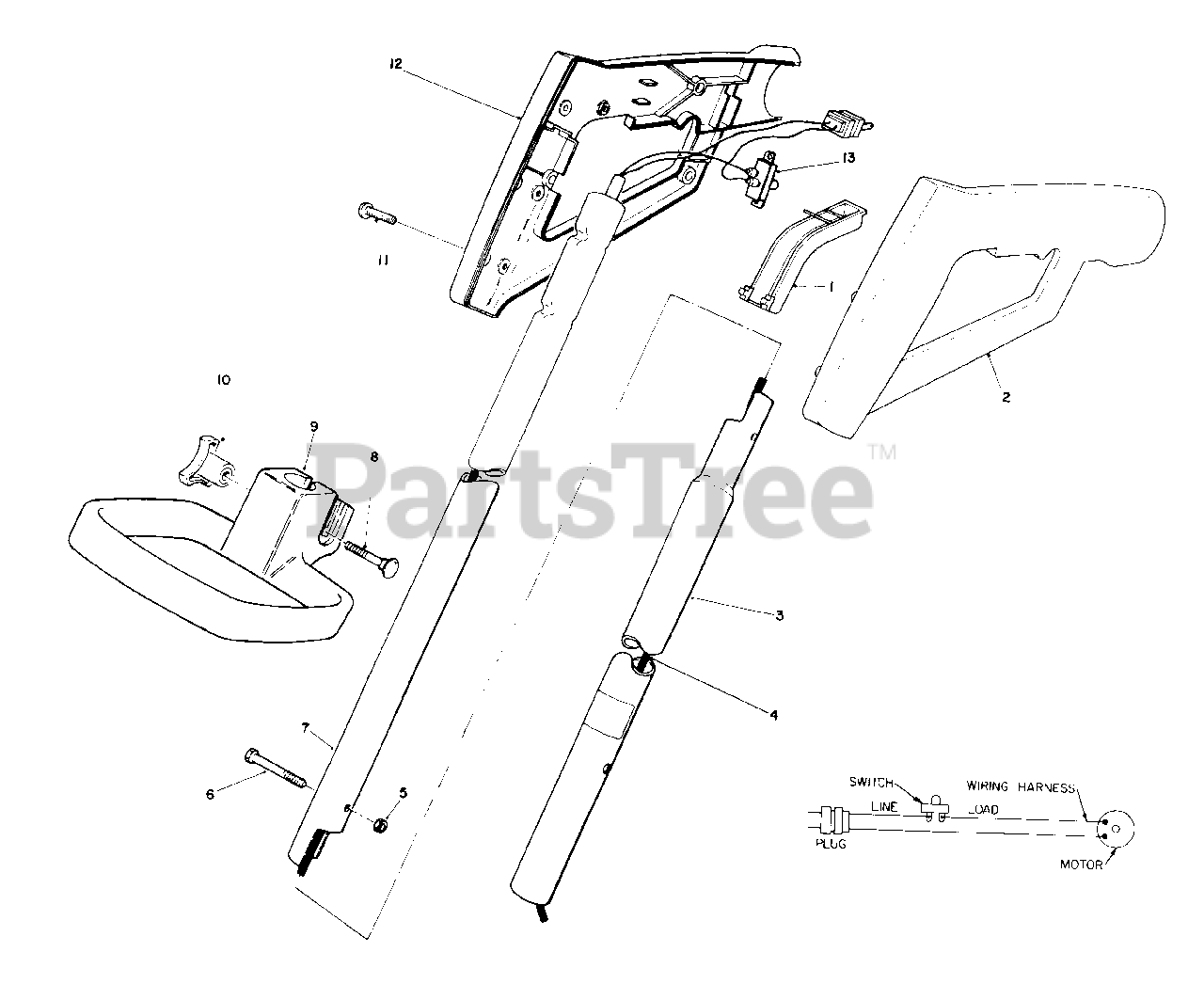

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-5580

Bar-Switch

$

$

Not available

2

Lawn-Boy 73-5620

Grip-Left Hand

$27.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 73-6010

Tube-Lower Extension

$43.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 73-5591

Harness-Wire

$

$

Not available

5

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

6

Lawn-Boy 33-8950

Screw-Hex Hd. Machine

$

$

Not available

7

Lawn-Boy 73-5630

Tube-Upper Extension

$

$

Not available

8

Lawn-Boy 33-5790

Bolt-Carriage

$5.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 61-8902

Handle-Adjustment

$

$

Not available

10

Lawn-Boy 73-4740

Knob-Adjustment

$9.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 32104-121

Screw-Thread Forming
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 73-5610

Grip-Right Hand

$27.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 73-5600

Switch-Single Speed

$

$

Not available
