51250 (1000) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

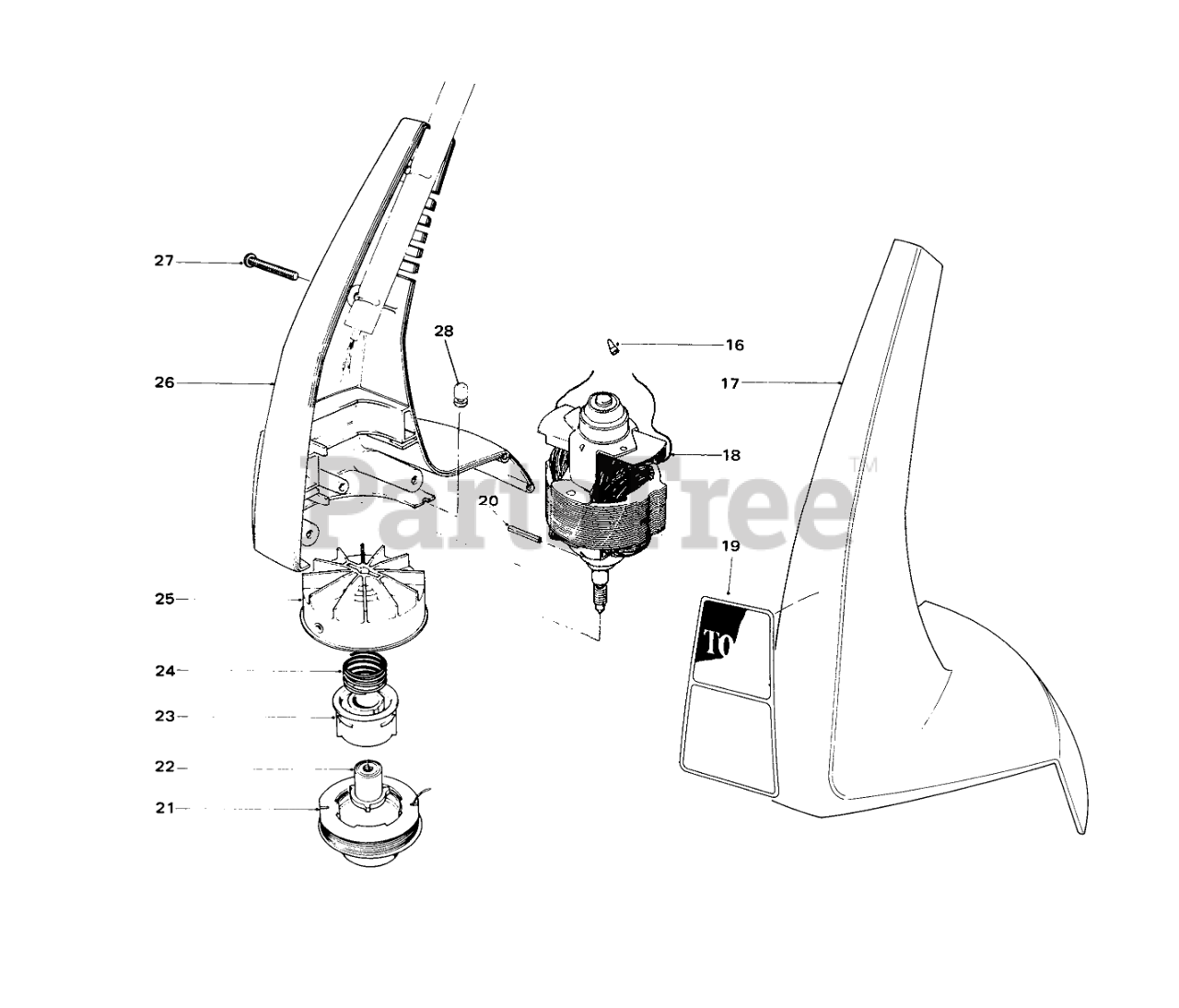

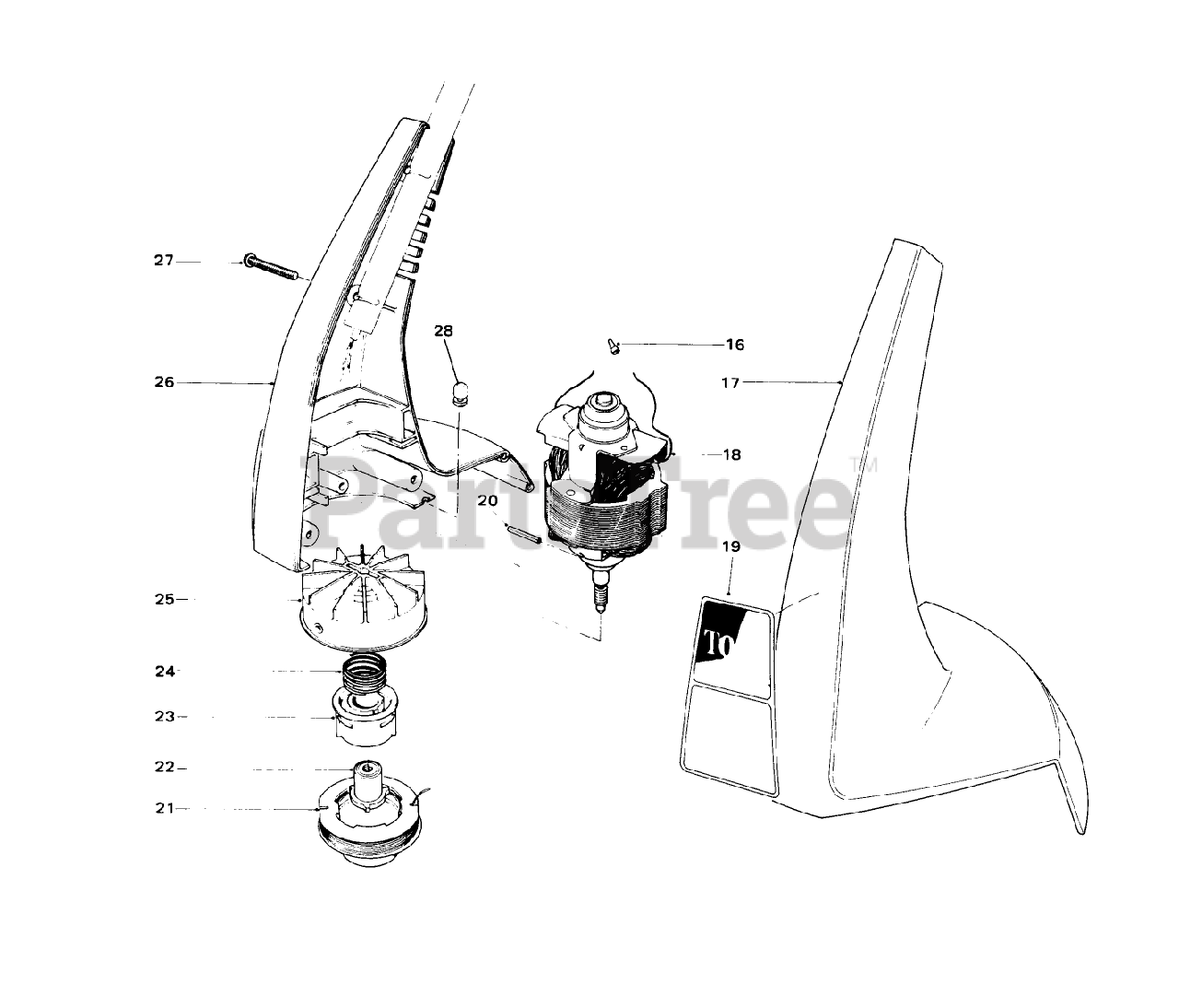

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
16

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

17

Toro 34-2640

LH HOUSING

$

$

Not available

18

Toro 34-2580

Motor

$

$

Not available

19

Toro 34-2670

Decal

$

$

Not available

20

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

21

Toro 34-3870

Prewound Spool Cap
(Superseded to 88015)

$12.99

$

Usually ships in 3-6 days

0

22

Toro 34-4200

Driver
(Superseded to 34-9100)

$21.99

$

In Stock, only 3 left!

0

23

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

24

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

25

Toro 33-8680

FAN HUB ASM

$

$

Not available

26

Toro 34-2650

RH HOUSING ASM

$

$

Not available

27

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

28

Toro 33-8710

GROMMET

$

$

Not available
