5125 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1981) Deck And Shroud Group Models: 5247, 5277, 7229, R7268 Parts Diagram

Walk-Behind Mower

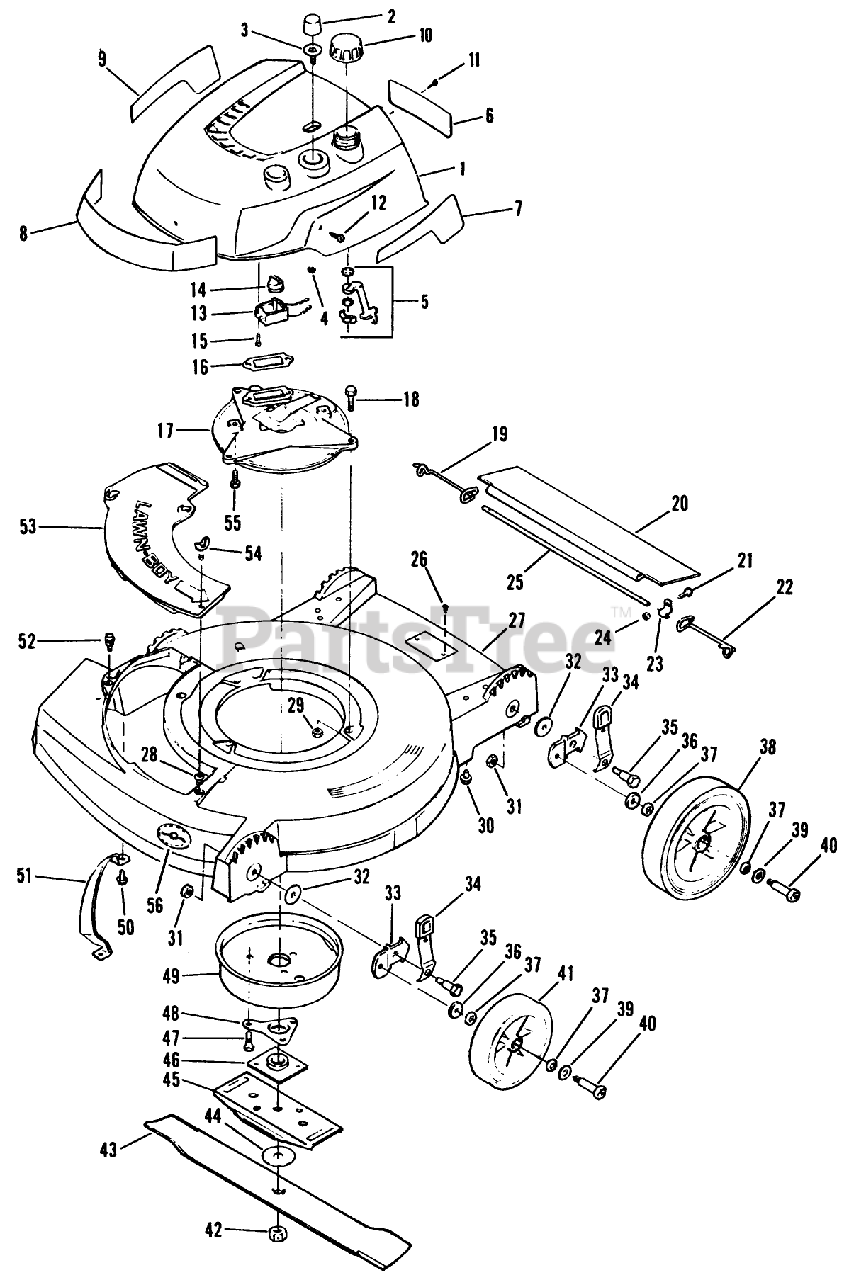

Deck And Shroud Group Models: 5247, 5277, 7229, R7268 Parts Diagram

  • Title
1

Lawn-Boy 681728

See Supercession: 682586
(Superseded to 682586)

$

$

Not available

2

Lawn-Boy 607310

See Supercession: 610482
(Superseded to 610482)

$

$

Not available

3

Lawn-Boy 607311

DISCONTINUED

$

$

Not available

4

Lawn-Boy 608027

LOCKNUT S

$2.49

$

In Stock, Qty 6

0

5

Lawn-Boy 681817

DISCONTINUED

$

$

Not available

6

Lawn-Boy 610515

Decal-Instruction

$

$

Currently unavailable

7

Lawn-Boy 609862

DISCONTINUED

Note: 19" Models Only

$

$

Not available

7

Lawn-Boy 609860

DISCONTINUED

Note: 21" Models Only

$

$

Not available

8

Lawn-Boy 609865

DISCONTINUED

$

$

Not available

9

Lawn-Boy 609861

DECAL

Note: 19" Models Only

$

$

Not available

9

Lawn-Boy 609859

DISCONTINUED

Note: 21" Models Only

$

$

Not available

10

Lawn-Boy 681929

See Supercession: 682755
(Superseded to 682755)

$25.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 608997

SCREW S

$2.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 609947

SCREW-SEMS

$10.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 681656

DISCONTINUED
(Superseded to 104-4446)

$

$

Not available

14

Lawn-Boy 609978

SWITCH KNOB

$15.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 609549

DISCONTINUED

$

$

Not available

16

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 609119

DISCONTINUED

$

$

Not available

18

$

$

Not available

19

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

$

$

Not available

20

Lawn-Boy 608868

TRAILING SHIELD-19

Note: 19" Models Only

$

$

Not available

20

Lawn-Boy 608870

SHIELD

Note: 21" Models Only

$

$

Not available

21

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

22

Lawn-Boy 608498

SPRIG T/SHLD ASOC

$

$

Not available

23

Lawn-Boy 608161

CLAMP ROD KMC

$11.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: 19" Models Only

$

$

Not available

25

Lawn-Boy 608174

ROD 21" ADVANCE

Note: 21" Models Only

$

$

Not available

26

Lawn-Boy 602175

DISCONTINUED

$

$

Not available

27

Lawn-Boy 681759

See Supercession: 684521
(Superseded to 684521)

Note: 19" Models Only

$

$

Not available

27

Lawn-Boy 681760

See Supercession: 684522
(Superseded to 684522)

Note: 21" Models Only

$618.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

In Stock, only 3 left!

0

30

$3.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

32

$14.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 681229

DISCONTINUED

$

$

Not available

35

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 603620

WASHER WROUGHT

$5.99

$

In Stock, Qty 20+

0

37

$1.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 679515

See Supercession: 682972
(Superseded to 682972)

$29.99

$

In Stock, only 2 left!

0

39

$2.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 603441

BOLT WHEEL

$7.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 679514

See Supercession: 678636
(Superseded to 678636)

$28.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

43

Lawn-Boy 603409

See Supercession: 603409-03
(Superseded to 603409-03)

Note: 19" Models Only

$

$

Not available

43

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: 21" Models Only

$33.99

$

In Stock, Qty 18

0

44

Lawn-Boy 605058

WASHER

Note: 21" Models Only

$5.99

$

In Stock, Qty 12

0

45

Lawn-Boy 603541

DISCONTINUED

$

$

Not available

46

Lawn-Boy 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 3 left!

0

47

$4.99

$

In Stock, Qty 14

0

48

Lawn-Boy 609786

SUPPORT F

$23.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 681614

See Supercession: 682876
(Superseded to 682876)

$165.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

$3.49

$

In Stock, only 3 left!

0

51

Lawn-Boy 608159

TOE BAR 19"

Note: 19" Models Only

$

$

Not available

51

Lawn-Boy 608175

BAR-TOE

Note: 21" Models Only

$77.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

$4.49

$

In Stock, Qty 12

0

53

Lawn-Boy 609677

COVER PLATE

$210.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 606733

WING SCREW LAWRE

$9.99

$

In Stock, Qty 6

0

55

Lawn-Boy 607601

SCREW V

$4.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 607067

DISCONTINUED

$

$

Not available
