51249 - Toro 25cm String Trimmer, Electric, Canada (SN: 089000001 - 089999999) (1998) MOTOR & HOUSING ASSEMBLY Parts Diagram

25cm String Trimmer, Electric, Canada

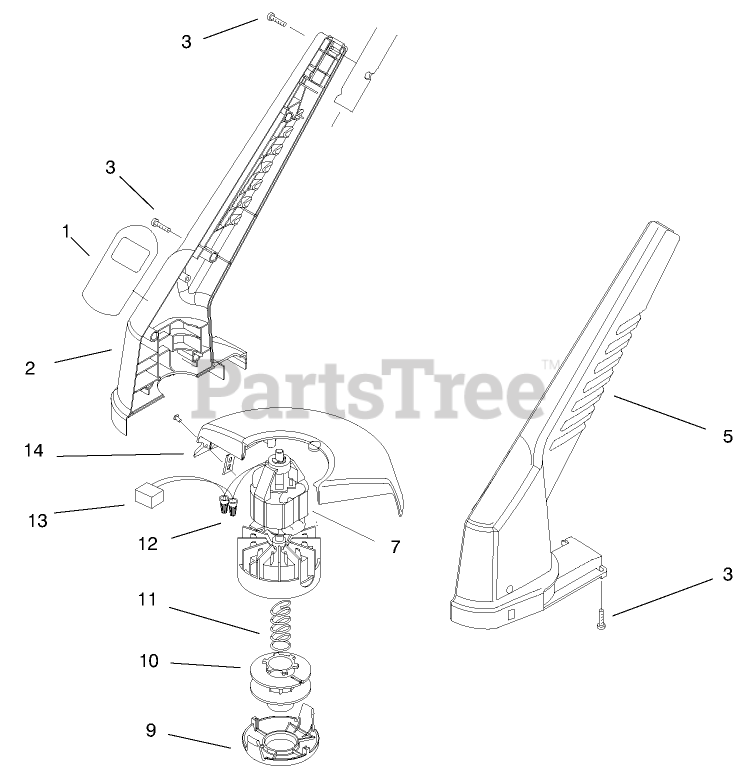

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 94-4453

Decal-25CM Trimmer

$

$

Currently unavailable

2

Toro 98-1843

Housing R.H.
(Superseded to 100-1220)

$

$

Not available

3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 98-1845

Housing L.H.
(Superseded to 100-1220)

$

$

Not available

7

Toro 93-8709

ASM-DRUM MOTOR (SERVICE)

$

$

Not available

9

Toro 73-8200

CAP

$

$

Not available

10

Toro 73-8490

.065 SPOOL ASM
(Superseded to 88175)

$23.99

$

In Stock, only 1 left!

0

11

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

12

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

13

Toro 73-9960

FILTER - RFI

$

$

Not available

14

Toro 73-9090

SHIELD ASM - SERVICE

$

$

Not available

Toro 93-4466

Spool & Line Assembly (Incl, Ref, #10)(Parts)

Note: Not illustrated

$

$

Not available

Toro 88176

Spool & Line Assembly (Whole Goods)(Incl, Ref, #10 and 30 ft. of .065 line)

Note: Not illustrated

$

$

Currently unavailable
