51249 - Toro 25cm String Trimmer, Electric, Canada (SN: 069000001 - 069999999) (1996) MOTOR & HOUSING ASSEMBLY Parts Diagram

25cm String Trimmer, Electric, Canada

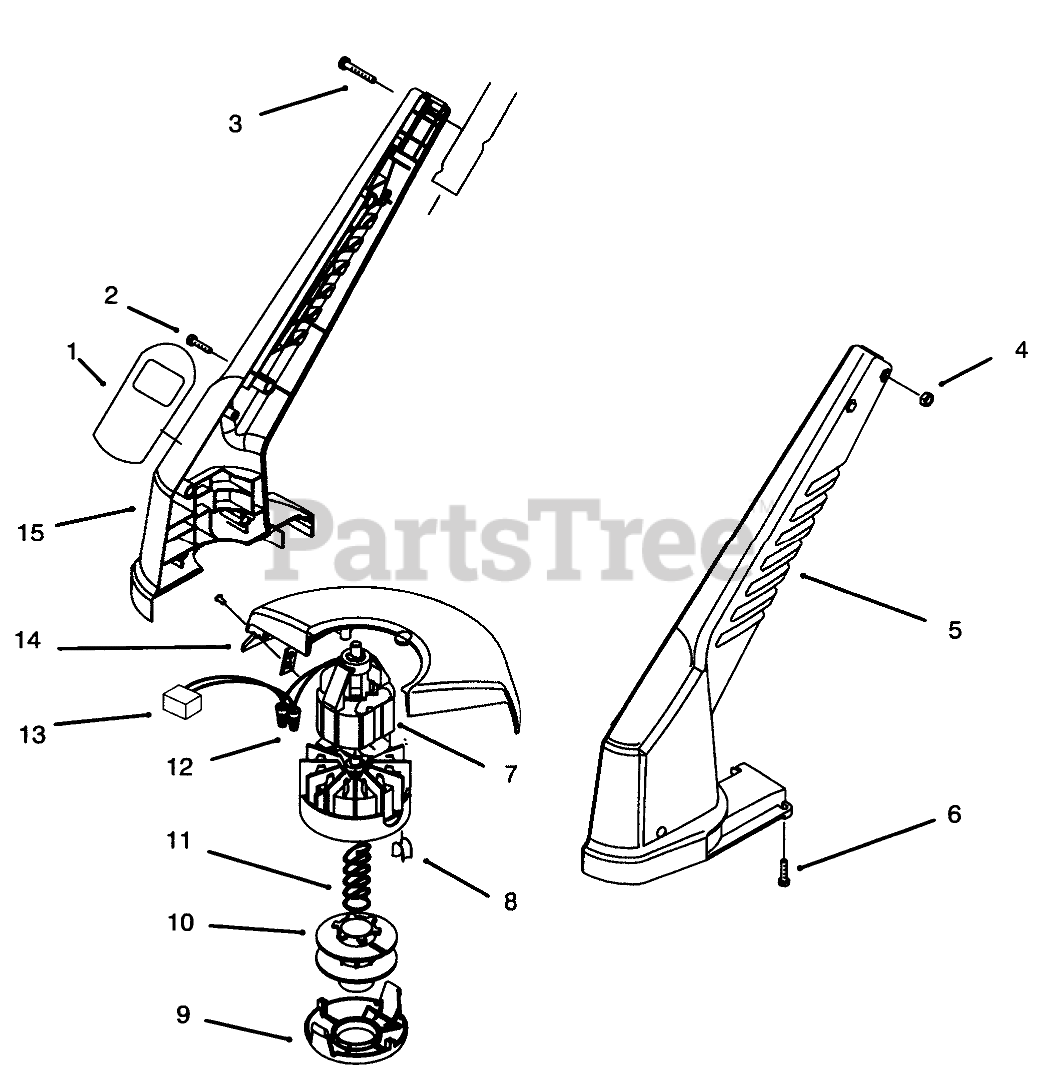

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 94-4453

Decal-25CM Trimmer

$

$

Currently unavailable

2

Toro 73-9970

HOUSING RH - TRIMMER, EUO

$

$

Not available

3

Toro 3250-52

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 3217-44

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

5

Toro 73-9980

HOUSING LH - TRIMMER

$

$

Not available

6

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

7

Toro 93-8709

Motor Assembly-Trimmer (Incl. Ref. #8)

$

$

Not available

8

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

9

$

$

Not available

10

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

11

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

12

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

13

Toro 73-9960

FILTER - RFI

$

$

Not available

14

Toro 73-9090

SHIELD ASM - SERVICE

$

$

Not available

15

Toro 73-9970

HOUSING RH - TRIMMER, EUO

$

$

Not available

Toro 93-4466

Spool & Line Assembly (Incl. Ref. #10) (Parts)

Note: Not illustrated

$

$

Not available

Toro 88176

Spool & Line Assembly

Note: Not illustrated

$

$

Currently unavailable
