51248 - Toro 27cm String Trimmer, Electric, Canada (SN: 240000001 - 240999999) (2004) MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram

27cm String Trimmer, Electric, Canada

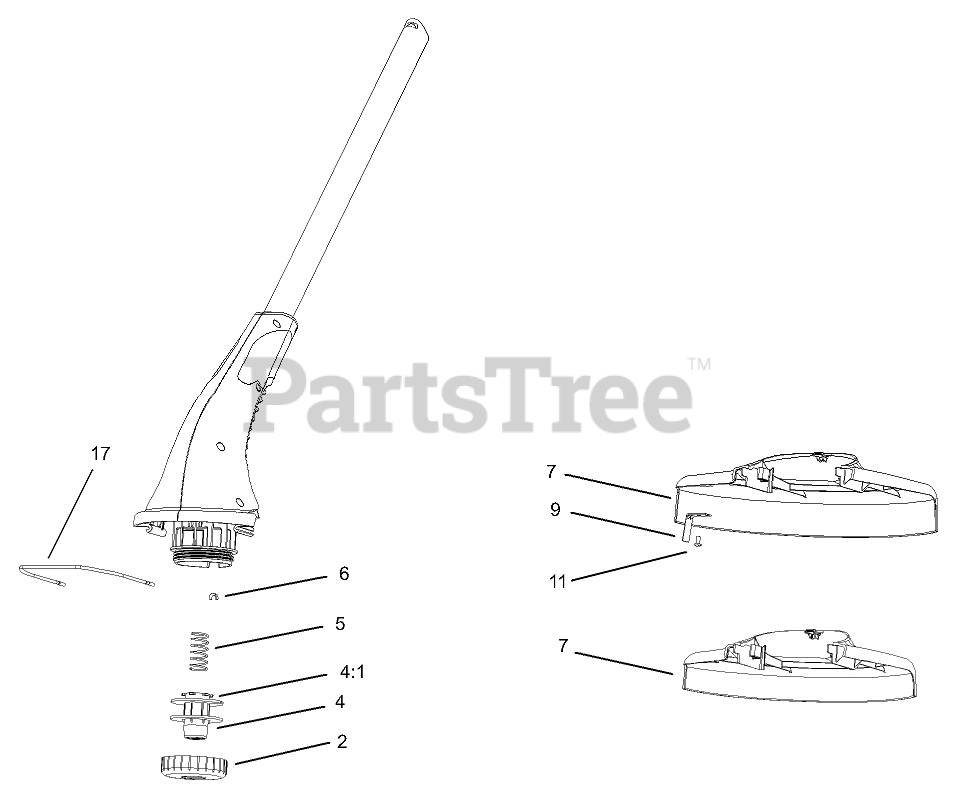

MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram

  • Title
2

Toro 105-9422

Cap-Drum

$11.99

$

In Stock, only 1 left!

0

4

Toro 73-8490

.065 SPOOL ASM
(Superseded to 88175)

$23.99

$

In Stock, only 2 left!

0

4:1

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

4:2

Toro 7420625

LINE-FILIMENT
(Superseded to 88003)

Note: Not illustrated

$

$

Not available

5

Toro 105-9423

Spring-Extension

$3.99

$

In Stock, Qty 17

0

6

Toro 105-9424

Eyelet-Drum
(Superseded to 107-3344)

$4.99

$

In Stock, Qty 9

0

7

Toro 105-9428

Shield-11in (only on: 51248)

$33.99

$

Usually ships in 3-6 days

0

7

Toro 105-9425

Shield-12in (only on: 51348)

$38.99

$

Usually ships in 3-6 days

0

9

Toro 106-6467

Blade-Cutoff

$4.99

$

In Stock, Qty 11

0

11

Toro 105-9437

Screw-PPH

$0.99

$

In Stock, Qty 8

0

17

Toro 105-9441

Guide-Edge, 12" (only on: 51348)

$

$

Not available
