51248 - Lawn-Boy 27cm String Trimmer, Electric, Canada (SN: 250000001 - 250999999) (2005) SPOOL AND SHIELD ASSEMBLY Parts Diagram

27cm String Trimmer, Electric, Canada

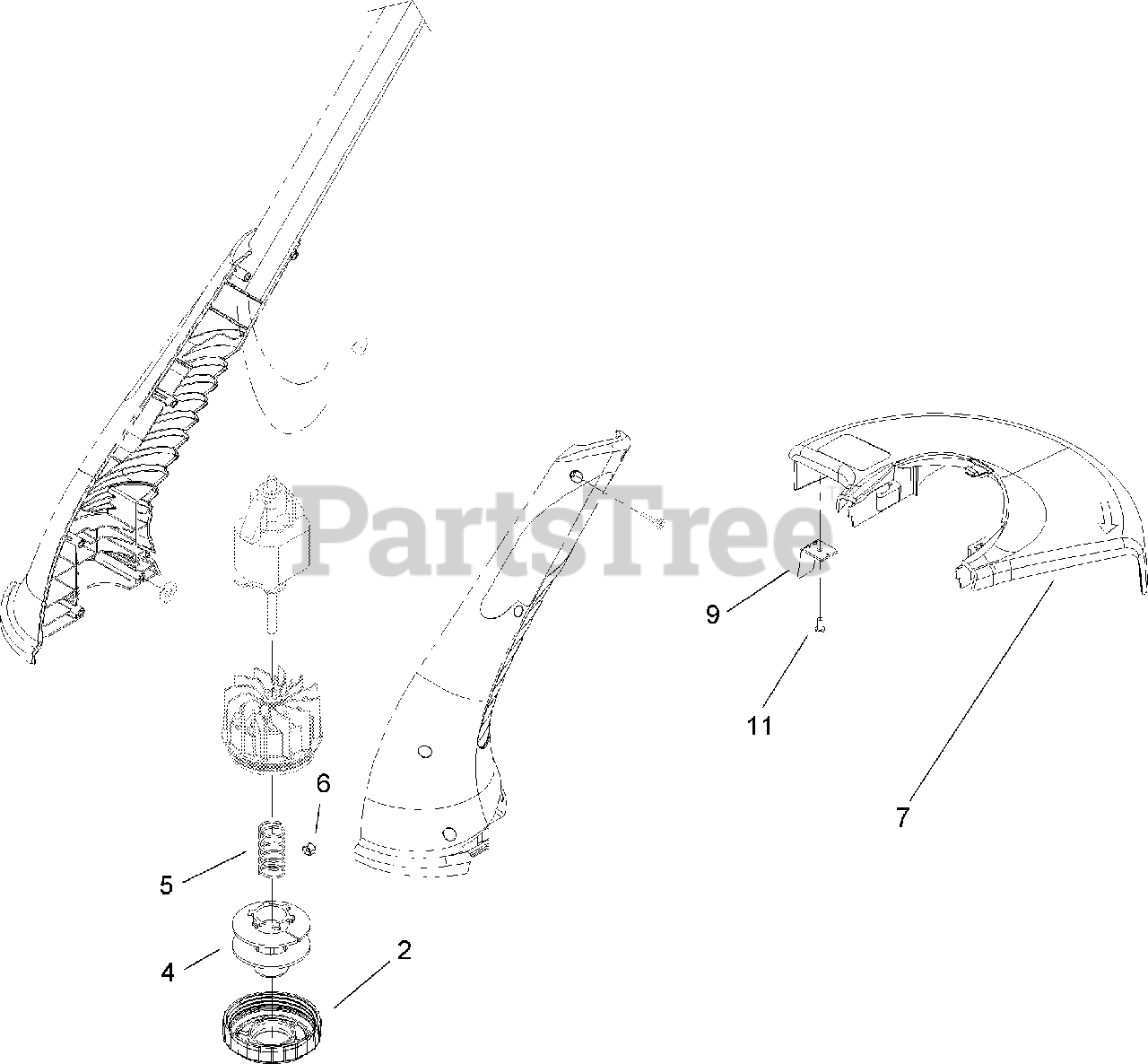

SPOOL AND SHIELD ASSEMBLY Parts Diagram

  • Title
2

$11.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 88175

.065 SPOOL ASM

$23.99

$

In Stock, only 1 left!

0

4:1

Lawn-Boy 73-8190

SPOOL-LARGE (Not illustrated)

$19.99

$

In Stock, Qty 11

0

4:2

Lawn-Boy 88003

LINE-FILIMENT (Not illustrated)

$

$

Not available

5

Lawn-Boy 105-9423

Spring-Extension

$3.99

$

In Stock, Qty 6

0

6

Lawn-Boy 107-3344

EYELET-GUIDE

$4.99

$

In Stock, Qty 9

0

7

Lawn-Boy 105-9428

SHEILD-11 INCH

$33.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 106-6467

Blade-Cutoff

$4.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 105-9437

Screw-PPH

$0.99

$

In Stock, Qty 8

0
