51236 (910) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

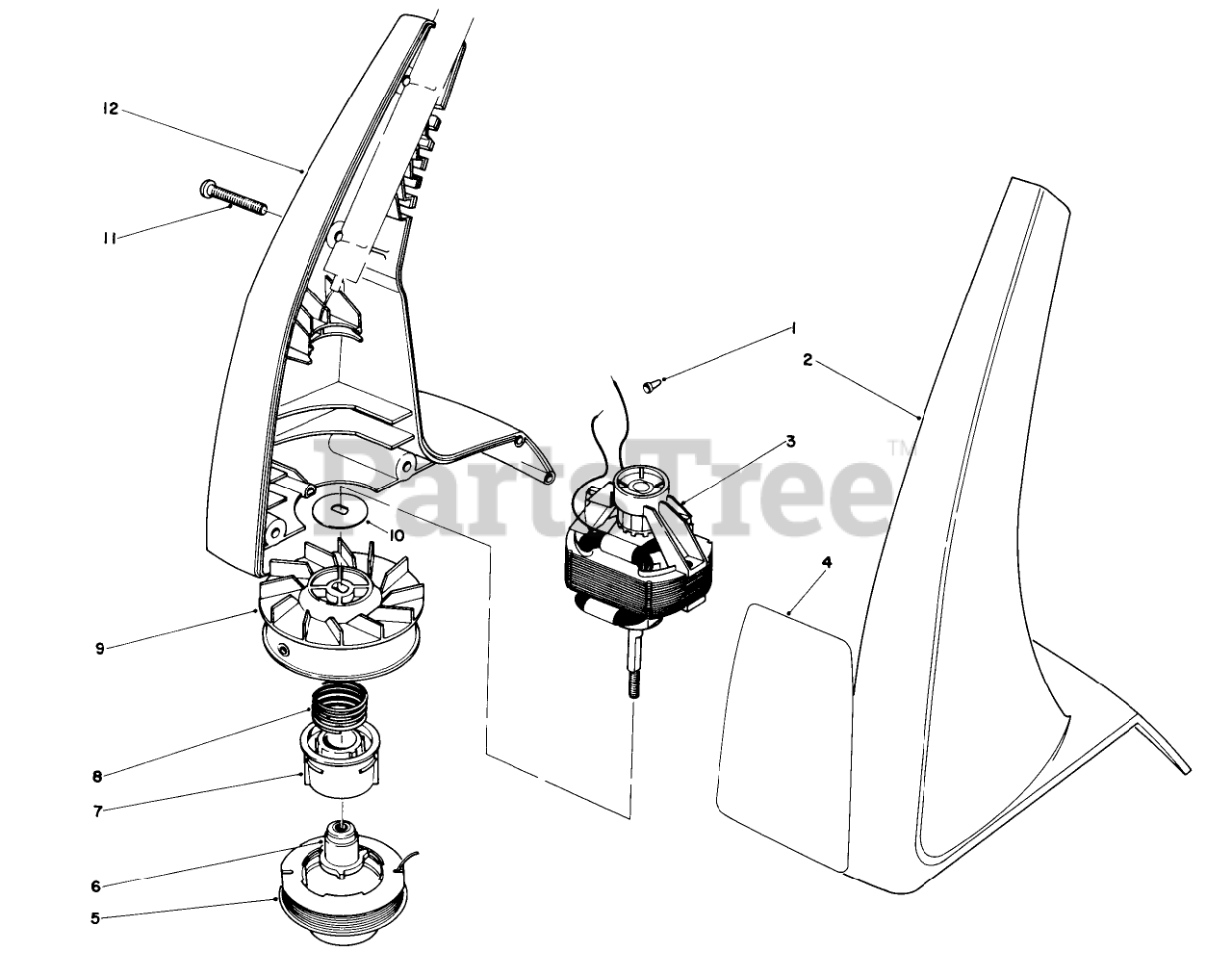

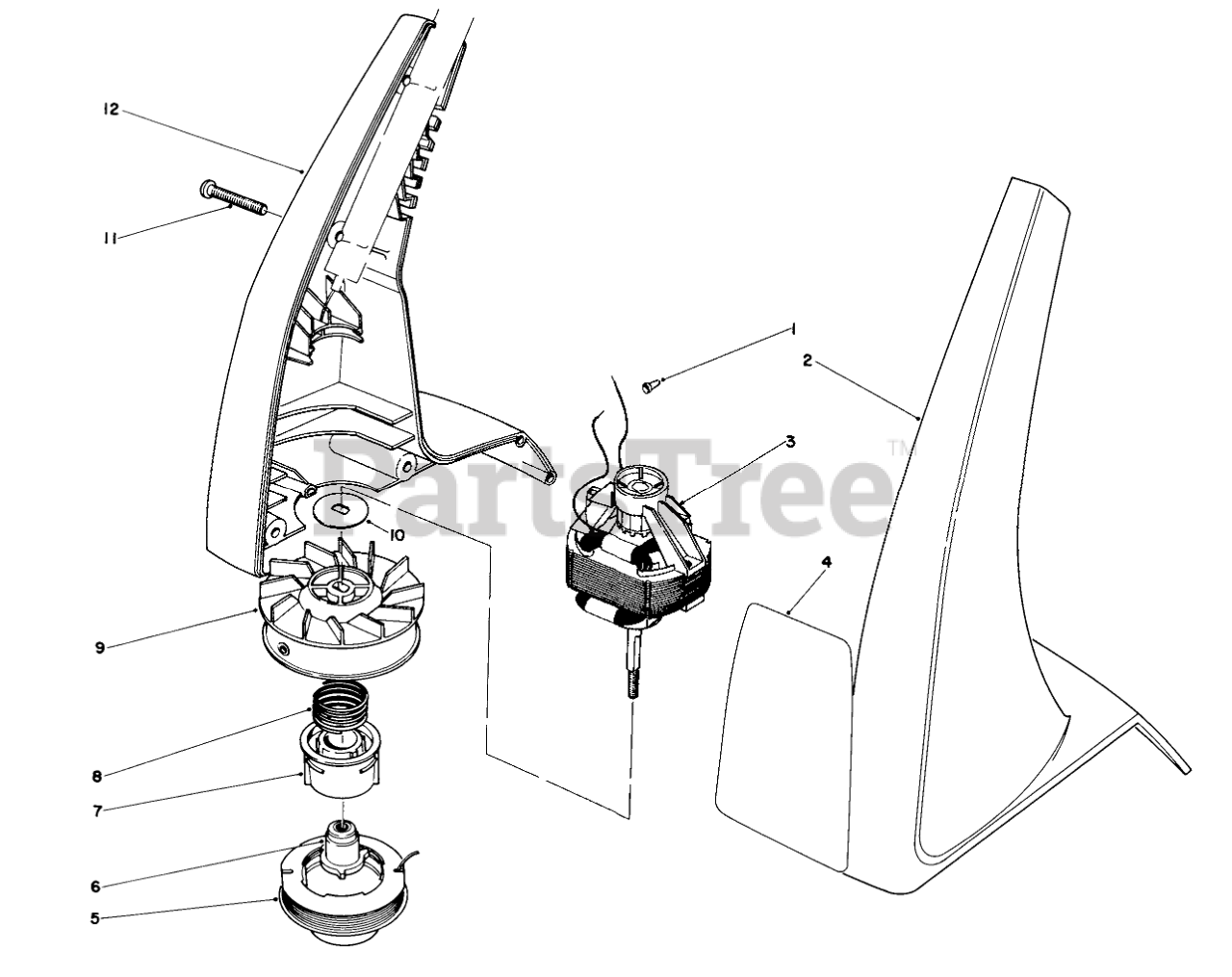

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 34-9711

LH HOUSING, 8" TRIMMER

$

$

Not available

3

Toro 34-9501

Motor

$

$

Currently unavailable

4

Toro 73-1190

DECAL, 8" TRIMMER

$

$

Not available

5

Toro 88375

Cutting Line (12- .05 Dia.)

$

$

Currently unavailable

Toro 34-9870

CAP-SPOOL

$13.99

$

Usually ships in 3-6 days

0

Toro 88311

Cutting Line (30- .05 Dia.)

$

$

Currently unavailable

6

Toro 34-9770

DRIVER

$15.99

$

Usually ships in 3-6 days

0

7

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

8

Toro 34-9860

Spring
(Superseded to 29-8230)

$8.99

$

In Stock, only 2 left!

0

9

Toro 34-9730

Drum w/Eyelet

$

$

Currently unavailable

10

Toro 34-9790

MOTOR WASHER

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 34-9821

Housing-Assembly R.H. (Incl. Ref. #13 & 14)

$

$

Not available

13

Rivet

$

$

Not available

14

Blade-Knife

$

$

Not available
