51236 (910) - Lawn-Boy String Trimmer, Electric (SN: 000000001 - 000999999) (1990) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

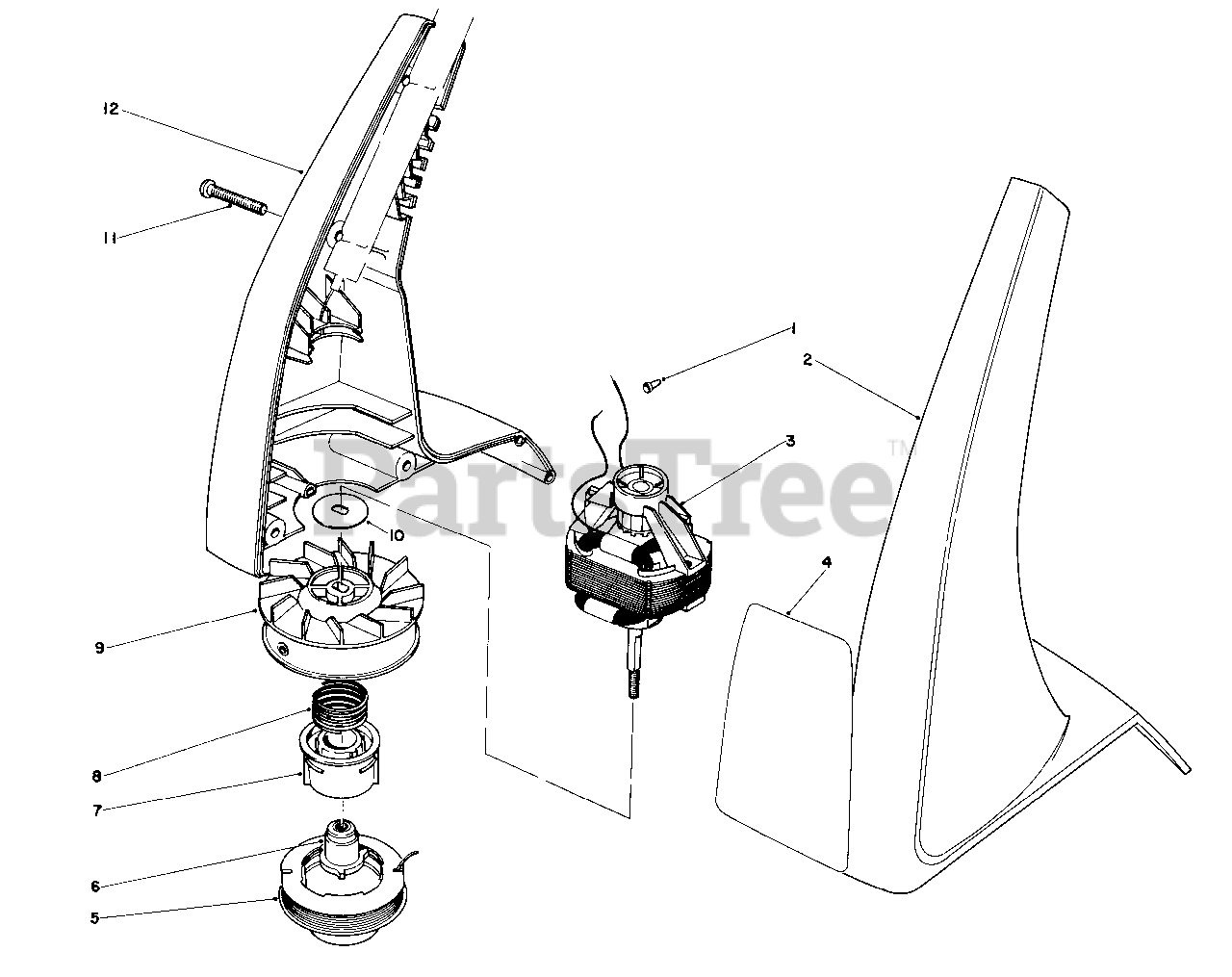

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 218-496

Connector-Wire

$

$

Not available

2

Lawn-Boy 34-9711

Housing-L.H.

$

$

Not available

$

$

Currently unavailable

$

$

Not available

5

Lawn-Boy 88375

Cutting Line (12' .05 Dia.)

$

$

Currently unavailable

Lawn-Boy 34-9870

Spool-Empty

Note: Not Illustrated

$16.99

$

Usually ships in 3-6 days

0

Lawn-Boy 88311

Cutting Line (30' .05 Dia.)

Note: Not Illustrated

$

$

Currently unavailable

6

$

$

Not available

7

Lawn-Boy 29-8120

Core-Spool

$34.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 34-9860

Spring-Compression
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 34-9730

Drum w/Eyelet

$

$

Currently unavailable

10

Lawn-Boy 34-9790

Washer-Motor

$

$

Not available

11

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 34-9821

Housing-Assembly R.H. (Incl. Ref. #13 & 14)

$

$

Not available

13

Rivet

Note: Not Illustrated

$

$

Not available

14

Blade-Knife

Note: Not Illustrated

$

$

Not available
