51235 C (910) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

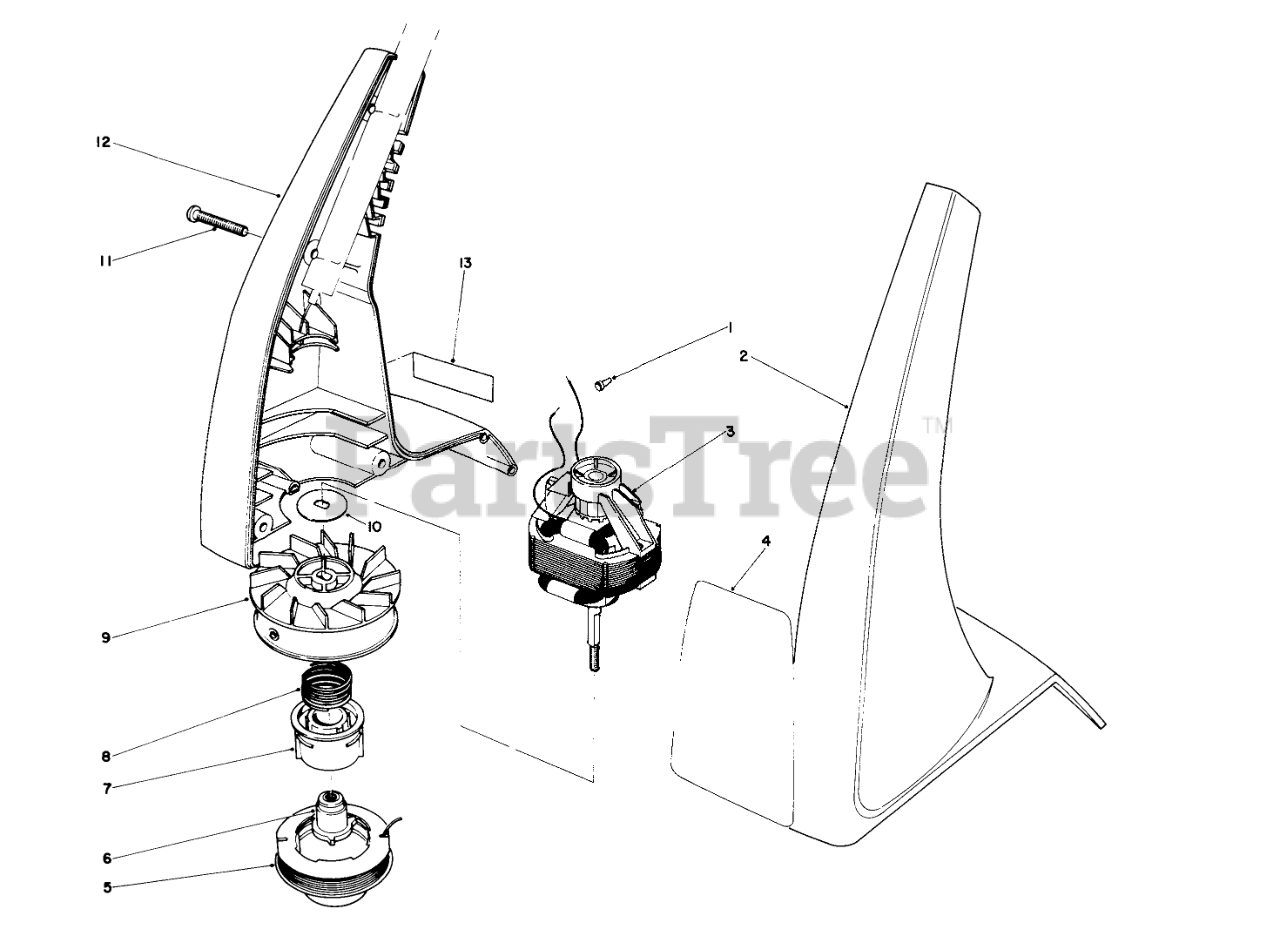

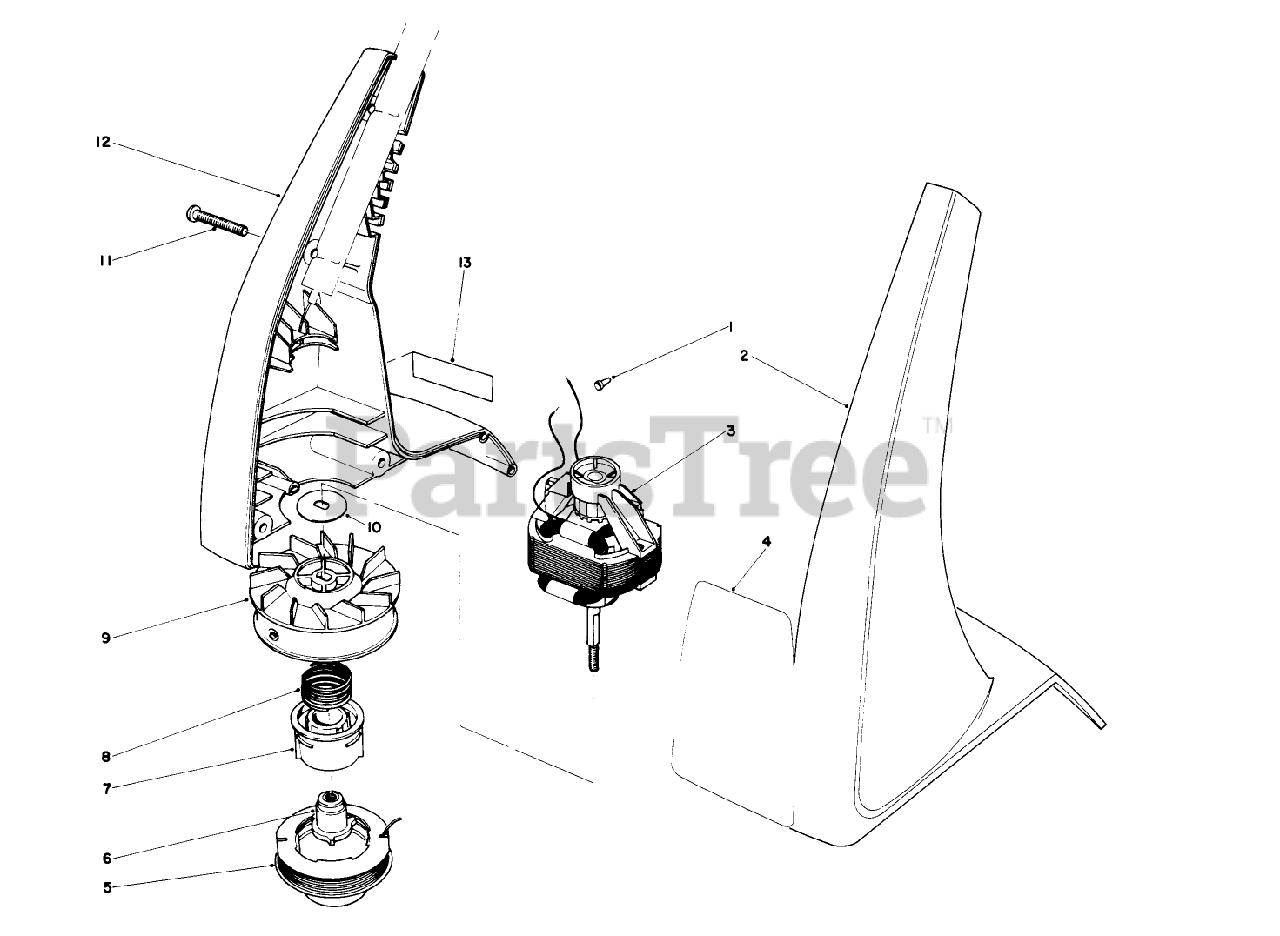

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 34-9710

L.H. HOUSING, 910

$

$

Not available

3

Toro 34-9500

MOTOR, 910 TRIMMER

$

$

Not available

4

Toro 34-9920

910 DECAL

$

$

Not available

5

Toro 88375

Cutting Line (12- .05 Dia.)

$

$

Currently unavailable

Toro 34-9870

CAP-SPOOL

$13.99

$

Usually ships in 3-6 days

0

Toro 88311

Cutting Line (30- .05 Dia.)

$

$

Currently unavailable

6

Toro 34-9770

DRIVER

$15.99

$

Usually ships in 3-6 days

0

7

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

8

Toro 34-9860

Spring
(Superseded to 29-8230)

$8.99

$

In Stock, only 2 left!

0

9

Toro 34-9850

Drum w/Eyelet

$

$

Not available

10

Toro 34-9790

MOTOR WASHER

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 34-9820

Housing-R.H.

$

$

Not available

13

Toro 40-2850

Decal

$

$

Not available
