51231 - Toro 8" String Trimmer, Electric (SN: 099000001 - 099999999) (1999) MOTOR & HOUSING ASSEMBLY Parts Diagram

8" String Trimmer, Electric

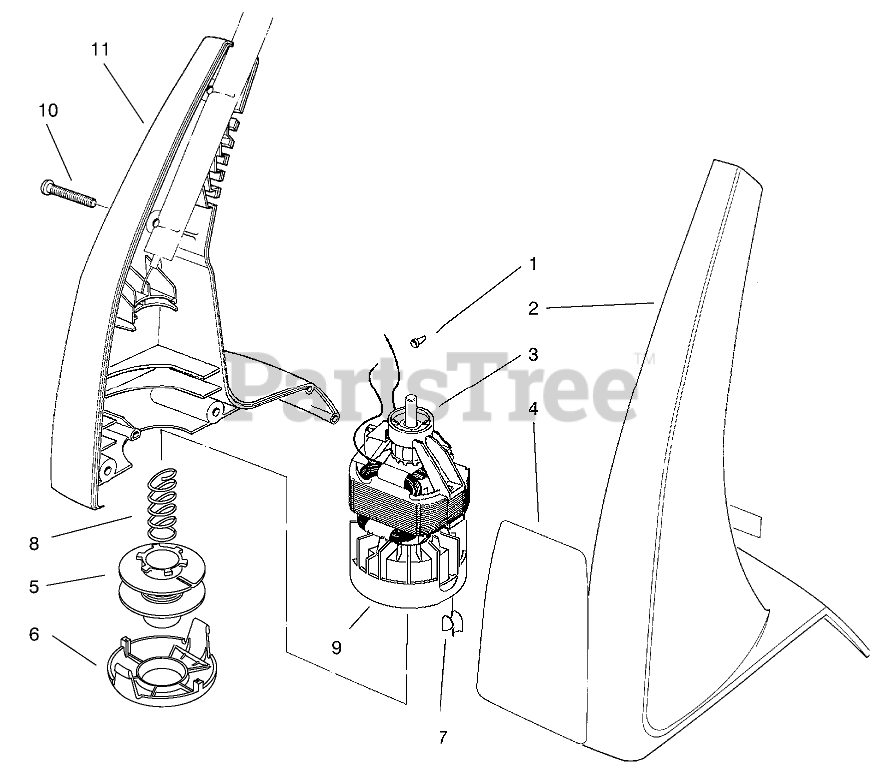

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 98-9260

HOUSING - L.H.

$

$

Not available

3

Toro 98-9272

Motor Assembly (Incl. Ref. #7 & 9 )

$

$

Not available

4

Toro 98-3304

DECAL-8" TRIMMER

$

$

Not available

5

Toro 73-8240

SPOOL

$14.99

$

Usually ships in 3-6 days

0

6

Toro 73-8250

CAP-SMALL

$5.49

$

In Stock, only 1 left!

0

7

Toro 73-8260

EYELET

$3.49

$

Usually ships in 3-6 days

0

8

Toro 73-8270

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

9

Drum

$

$

Not available

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 98-9273

HOUSING ASM-8"R.H.(SERVICE)

$

$

Not available

Toro 34-3890

30 Ft..050 Dia. Cutting Line
(Superseded to 88011)

Note: Not illustrated

$

$

Not available

Toro 88170

Spool & Line Assembly (Whole Goods)

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
