51231 - Toro 8" String Trimmer, Electric (SN: 059000001 - 059999999) (1995) MOTOR & HOUSING ASSEMBLY Parts Diagram

8" String Trimmer, Electric

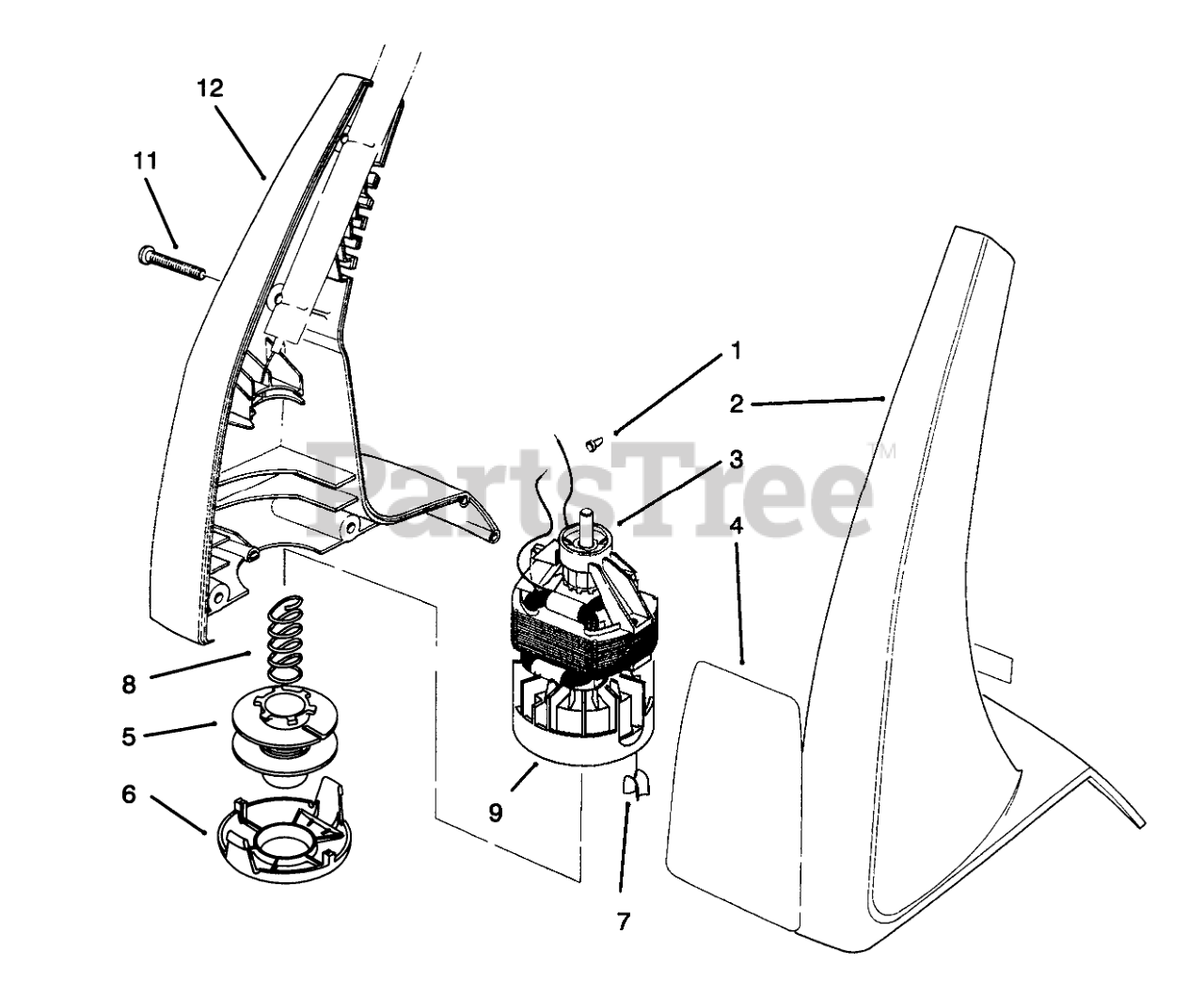

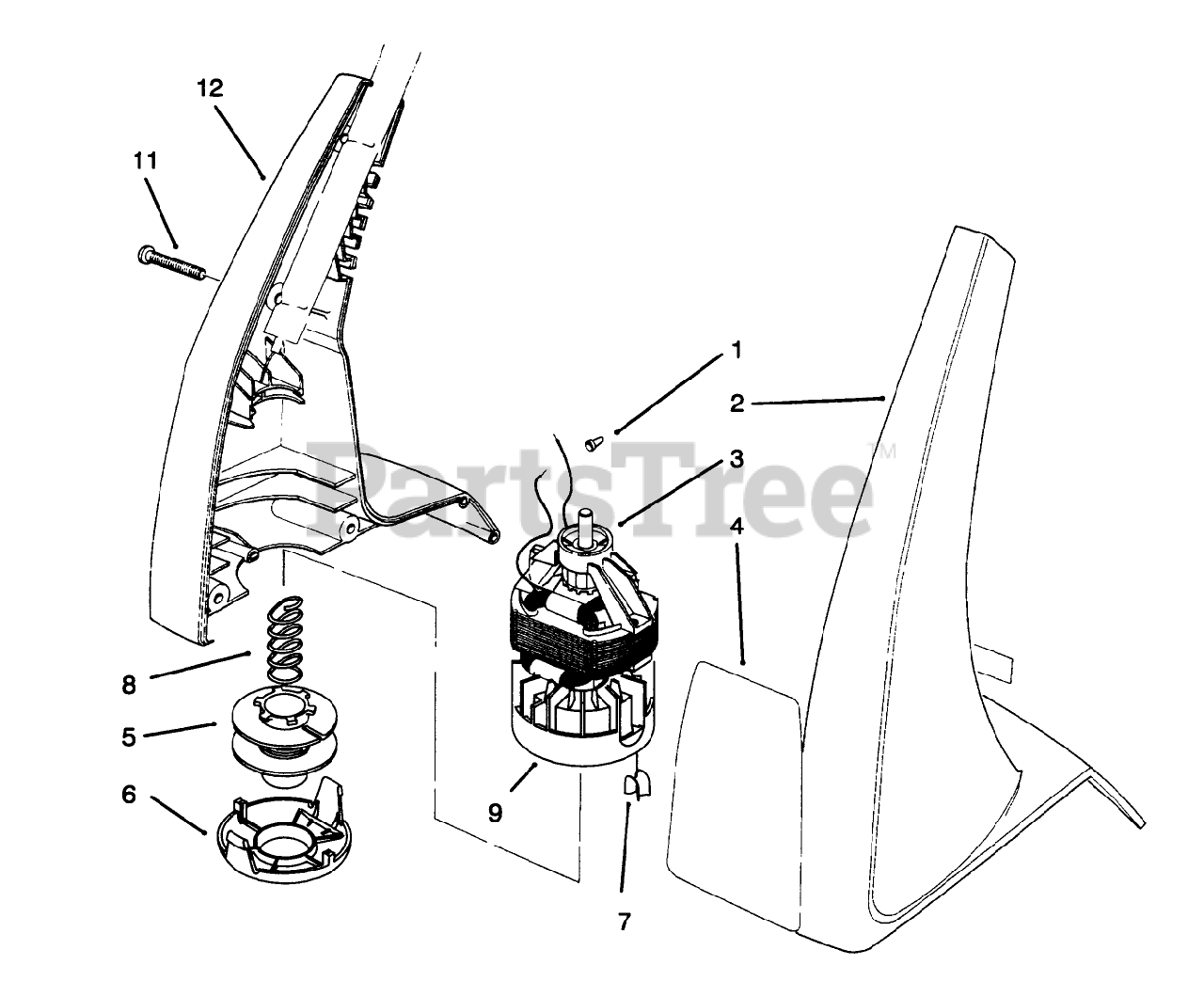

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 73-8400

HOUSING, 8", LH

$

$

Not available

3

Toro 73-9040

Motor Assembly (Incl. Ref. #9 & 7 )

$

$

Not available

4

Toro 73-8430

DECAL - 8" TRIMMER

$

$

Not available

5

Toro 73-8500

20 Ft. .050 Dia. Cutting Line Prewound on Spool
(Superseded to 88170)

$19.99

$

Usually ships in 3-6 days

0

Toro 73-8240

SPOOL

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

Toro 34-3890

30 Ft..050 Dia. Cutting Line
(Superseded to 88011)

Note: Not illustrated

$

$

Not available

6

Toro 73-8250

CAP-SMALL

$5.49

$

In Stock, only 1 left!

0

7

Toro 73-8260

EYELET

$3.49

$

Usually ships in 3-6 days

0

8

Toro 73-8270

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

9

Drum

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 73-9080

ASM-HOUSING,RH-SERVICE

$

$

Not available
